Reduced Diameter Centre Leg
NBR Seals from 15.0 to 54.0, NBR/HNBR Seals from 76.1 to 108.0 (Gas Rated)
Temperature rating: -20°C, 70°C
... Maximum operating pressure: 5 Bar (72 psi)
Female BSP Centre Leg (EN 10226-1, ISO 7-1)
NBR Seals from 15.0 to 54.0, NBR/HNBR Seals from 76.1 to 108.0 (Gas Rated)
Temperature rating: -20°C, 70°C
... Maximum operating pressure: 5 Bar (72 psi)
Male BSP (EN 10226-1, ISO 7-1)
NBR Seal from 15.0 to 54.0, NBR/HNBR Seal from 76.1 to 108.0 (Gas Rated)
Temperature rating: -20°C, 70°C
... Maximum operating pressure: 5 Bar (72 psi)
Female BSP (EN 10226-1, ISO 7-1)
NBR Seal from 15.0 to 54.0, NBR/HNBR Seal from 76.1 to 108.0 (Gas Rated)
Temperature rating: -20°C, 70°C
... Maximum operating pressure: 5 Bar (72 psi)
NBR Seals from 15 to 54, HNBR Seals from 76.1 to 108

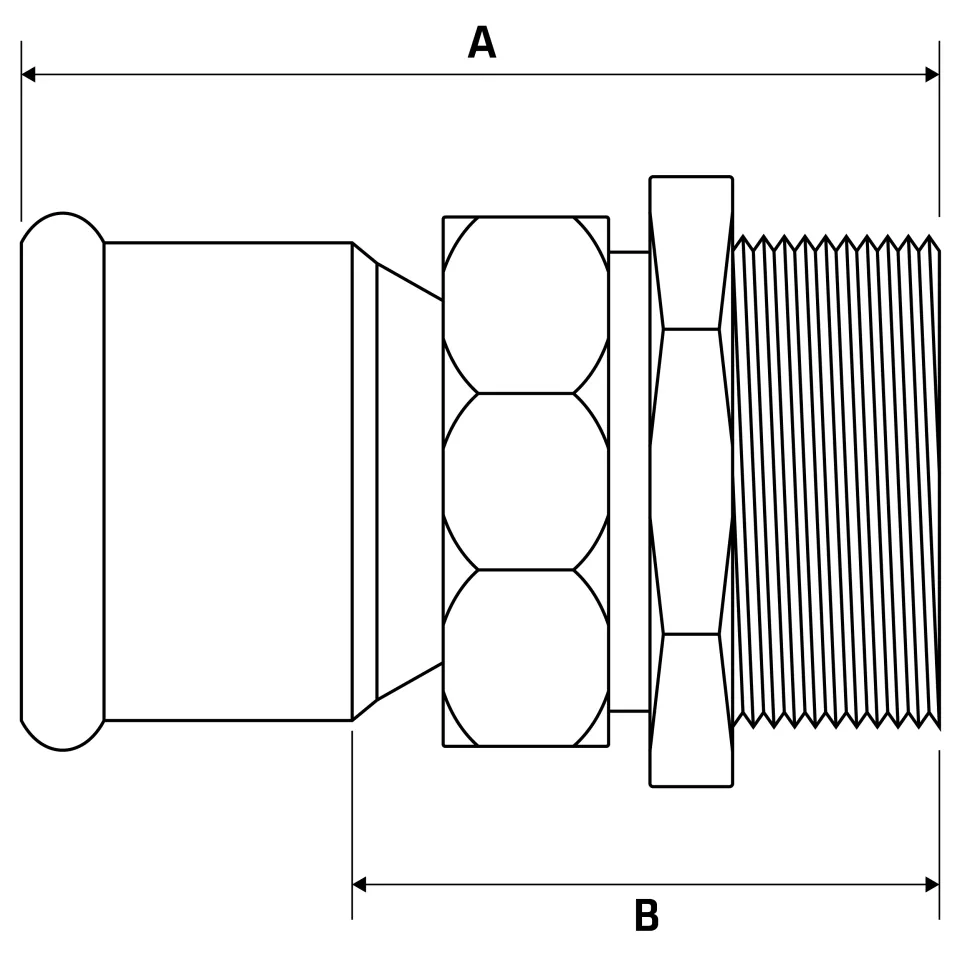

Male BSP End
Brass Nut
... Temperature rating: -20°C, 70°C
Maximum operating pressure: 5 Bar (72psi)
Measurement 'D' indicates Maximum Expansion Length
NBR Seals from 15.0 to 54.0, NBR/HNBR Seals from 76.1 to 108.0 (Gas Rated)
Temperature rating: -20°C, 70°C
... Maximum operating pressure: 5 Bar (72 psi)
Refer to Page 35 in our RapidPress Technical Guide for our Expansion Compensation Table

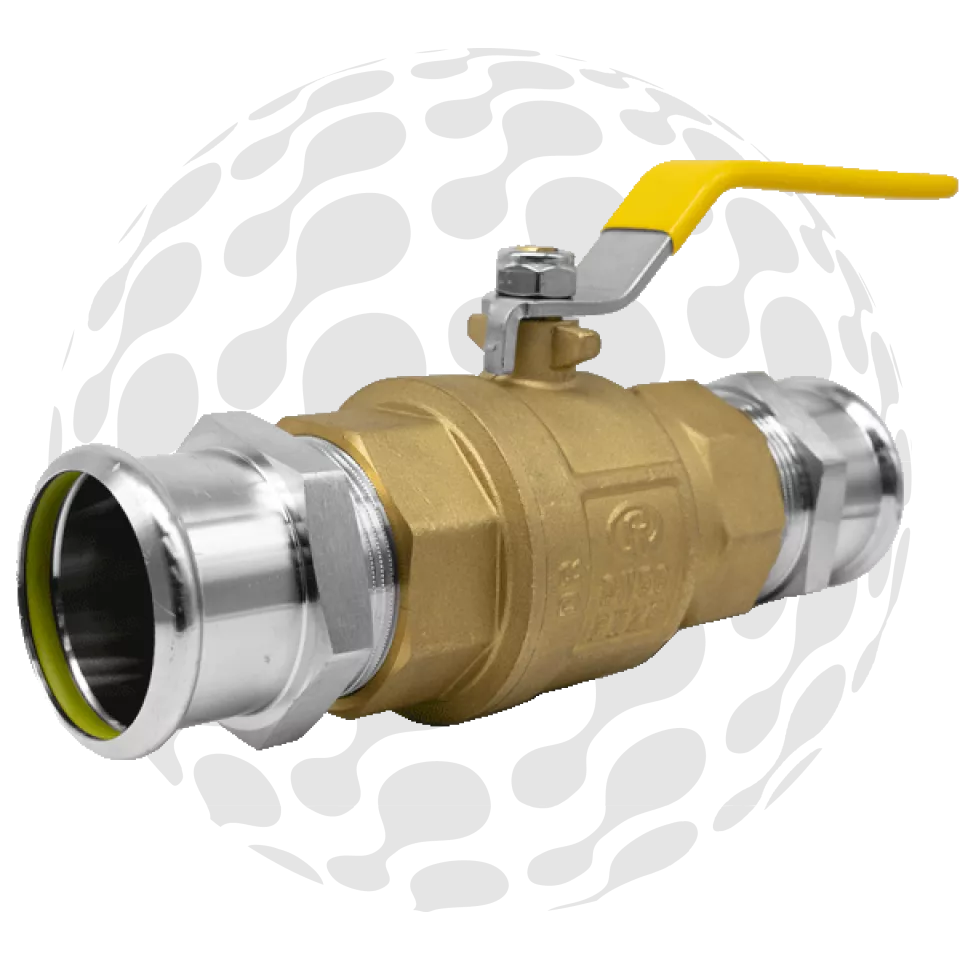

Brass Body, Stainless Steel RapidPress Gas Couplers
Valve Meets Standard: AS 4617-2018
Valve Certified to: GAS-104839-001 and WMTS012:2018
... HNBR Seals in RapidPress Couplers
RapidPress Coupler Temperature rating: -20°C, 70°C
RapidPress Coupler Maximum operating pressure: 5 Bar (72psi)
We recommend the use of Blue Monster PTFE Gas Guard Thread Sealing Tape
Please note that there is a 2-3 Day Leadtime from date of order
Includes: BSP Flange Table E and RapidPress Male BSP Coupler (Gas)
Flange Dimensional Standard: AS2129
Please note: Sizes from 15NB (1/2") to 40NB (1 1/2") are not manufactured to AS2129 Standard. Thickness exceeds standard to avoid unacceptable warpage that may occur at standard AS2129 thickness.
... Flange Forged to: ASTM A182
Temperature rating: -20°C, 70°C
Maximum operating pressure: 5 Bar (72psi)
We recommend the use of Blue Monster PTFE Gas Guard Thread Sealing Tape
Includes: BSP Flange PN10-40 and RapidPress Male BSP Coupler (Gas)
Flange Dimensional Standard: EN1092-1 Type 13/B1
Flange Forged to: EN10222-5
... To determine flange spec, refer to the end of the code as shown in between stars (RPF28*PN10-40*G) - Stars only shown for example
Temperature rating: -20°C, 70°C
Maximum operating pressure: 5 Bar (72psi)
We recommend the use of Blue Monster PTFE Gas Guard Thread Sealing Tape

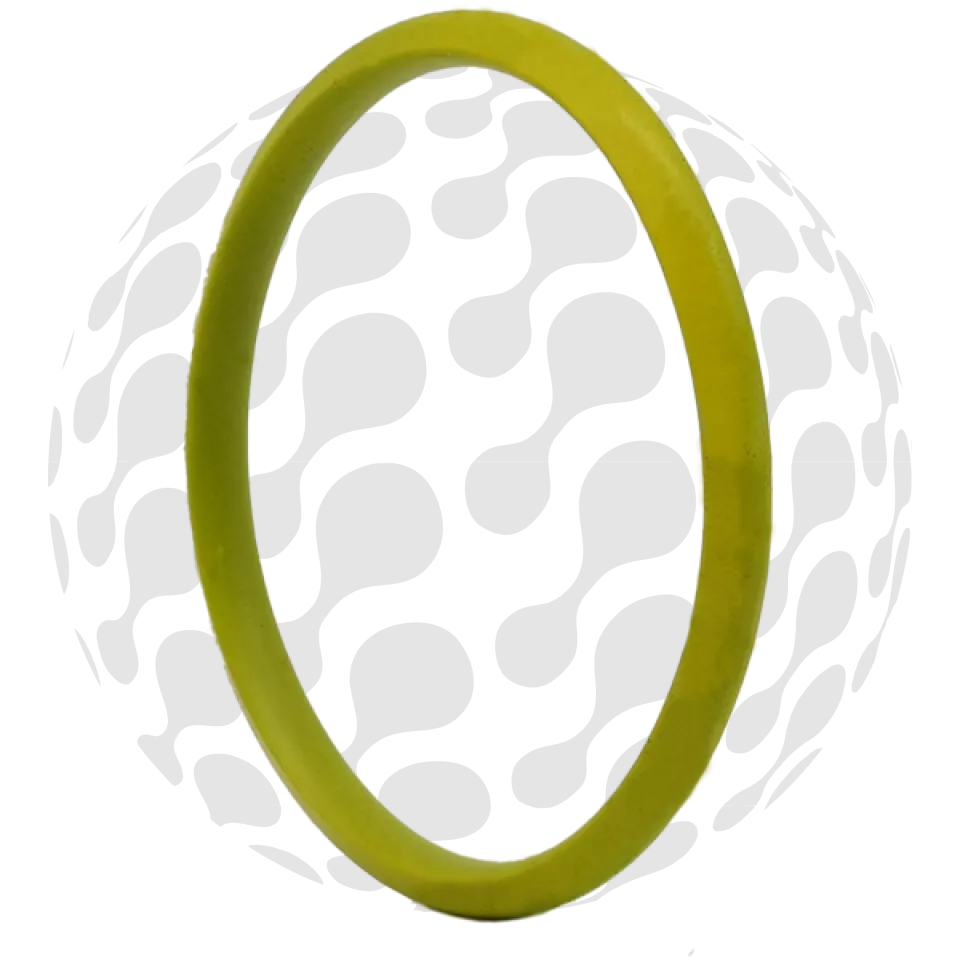

NBR/HNBR O-Ring - Yellow
NBR Seal from 15 to 54, HNBR Seal from 76.1 to 108
Typically used with Natural Gas & Methane Gas
... Certificates/Approvals: G260HTB, DVGW G 5614
Patented seal ring with lenticular profile which fits the press crimp groove which provides a 20% enlargement of the sealing surface
Fit makes the pipes insertion easier
Suitable for all uses except for with potable water. For potable water capabilites, please see our RapidPress Inox Watermark Approved Press-Fit Tube (RapidPress Inox Press-Fit Tube (WM))
Manufactured to EN10312/EN10217-7
180 Grit Finish
... 6 metre lengths. Purchase per metre (enter quantity as '6' for 1 length)
Watermark Approved for use with potable water. If potable water applications are not required, please see our RapidPress Inox Press-Fit Tube
Manufactured to EN10312/EN10217-7
180 Grit Finish
... 6 metre lengths. Purchase per metre (enter quantity as '6' for 1 length)
Depth Gauge for sizes 15mm to 168.3mm
To ensure a correctly inserted joint, the tube must be witness marked with a fine-point/felt-tip pen where it meets the fitting using the depth gauge so that full insertion can be verified
Replacement wheel blade to suit the RapidPress Rotary Tube Cutter
Suitable for Stainless Steel, Copper and Aluminium tubing
Suitable for sizes from 15mm to 76.2
Tool comes with full set of compatible pressing heads
Press sizes from 15.0mm to 54.0mm
Work light for safe working
... Analysis of tool performance via NovoCheck app
Data transfer via Bluetooth®
Brushless Motor Technology
Runs Milwaukee® M18™ Battery
*Tool, Battery, Charger and Case only*
Press sizes from 15.0mm to 54.0mm
Work light for safe working
... Analysis of tool performance via NovoCheck app
Data transfer via Bluetooth®
Brushless Motor Technology
Runs Milwaukee® M18™ Battery
Ask us about our ex hire tools available for purchase!
Tool comes with full set of compatible Pressing Heads (excludes 88.9mm Pressing Head)
Press sizes from 15.0mm to 108.0mm
Rotatable head
... Analysis of tool performance via NovoCheck app
Data transfer via Bluetooth®
Brushless Motor Technology
Runs Milwaukee® M18™ Battery
*Tool, Battery, Charger and Case only*
Press sizes from 15.0mm to 108.0mm
Rotatable head
... Analysis of tool performance via NovoCheck app
Data transfer via Bluetooth®
Brushless Motor Technology
Runs Milwaukee® M18™ Battery
Ask us about our ex hire tools available for purchase!
M-Profile
Adapter Jaw (AJ76108) required for use of the 76.1mm & 88.9mm Pressing Head. Also for the initial press for 108.0mm Pressing Head
Adapter Jaw (AJ108) required for the secondary press for the 108.0mm Pressing Head
