Sealing Tape
-
Blue Monster PTFE Thread Sealing Tape
Blue Monster PTFE Thread Sealing Tape
Features
- Compatible with a broad range of gases and liquids
- Compatible with a broad range of piping materials
- Will not harden or crack on the joints
- Effective across a broad range of temperatures and pressures
- Acts as a thread lubricant and anti-seize
- Prevents electrolytic corrosion of threads
- No curing time
- Unlimited shelf life
- Non-flammable
- Non-toxic
- Clean
- Ideal for BSP and NPT threaded fittings
- Colour: Blue
- Temperature Range: -268°C to +260°C
- 35 metre roll
-
Blue Monster PTFE Gas Guard Thread Sealing Tape
Blue Monster PTFE Gas Guard Thread Sealing Tape
Features
- Ideal for BSP and NPT threaded fittings including stainless steel
- Composition: 99.0% PTFE <1.0% Pigment
- Colour: Yellow
- Temperature range:-400°F to +500°F (-268°C to + 260°C) PTFE is completely stable up to +500°F or +260°C. Decomposition is slow up to 750°F or 400°C. Although decomposition will occur on contact with naked flames.
- 25 metre roll
-
Mill-Rose PTFE Nickel Anti-Seize Tape
Mill-Rose PTFE Nickel Anti-Seize Tape
Features
- Designed specifically for use on high-end finishes, including chrome, stain-less steel, and nickel.
- A thicker, professional-grade density
- Seals threads effectively for dependable, leak-proof joints
- No need for pipe dope.
- Easier to apply - no waste!
- Ideal for BSP and NPT threaded fittings including stainless steel
- Composition: 90% PTFE/10% nickel
- Colour: Silver
- Temperature range: -268°C to +260°C
- 6.5 metre roll
Sockets
-

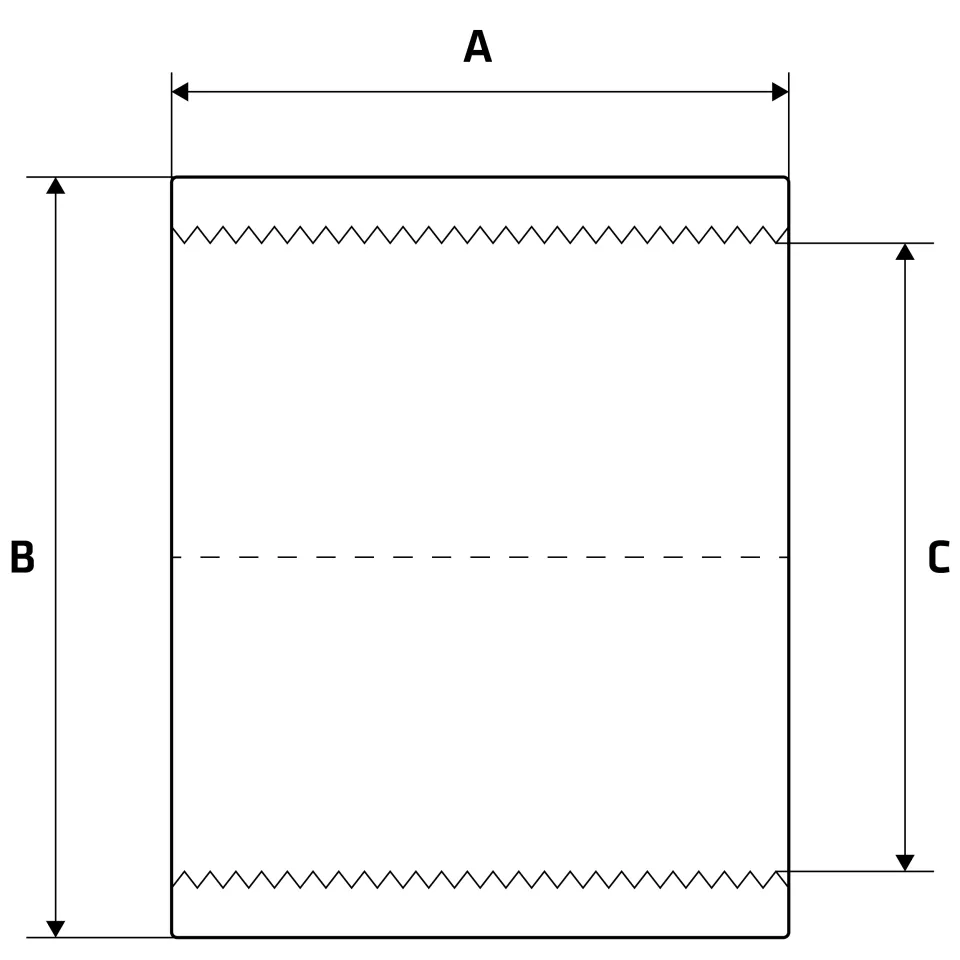

BSP Socket
BSP Socket
Features
- Female BSP thread (parallel), which conforms with ISO 7-1/ISO 228-1
- Investment lost wax casting manufactured to ISO 9001
- Working Pressure: 10.3 bar (150.0 PSI)
- Working Temperature: 250°C at 10.3 bar (150.0 PSI)
- Bursting Pressure: Unavailable
- Mill Test Certifications available for all sizes (EN 10201 Type 2.2)
-

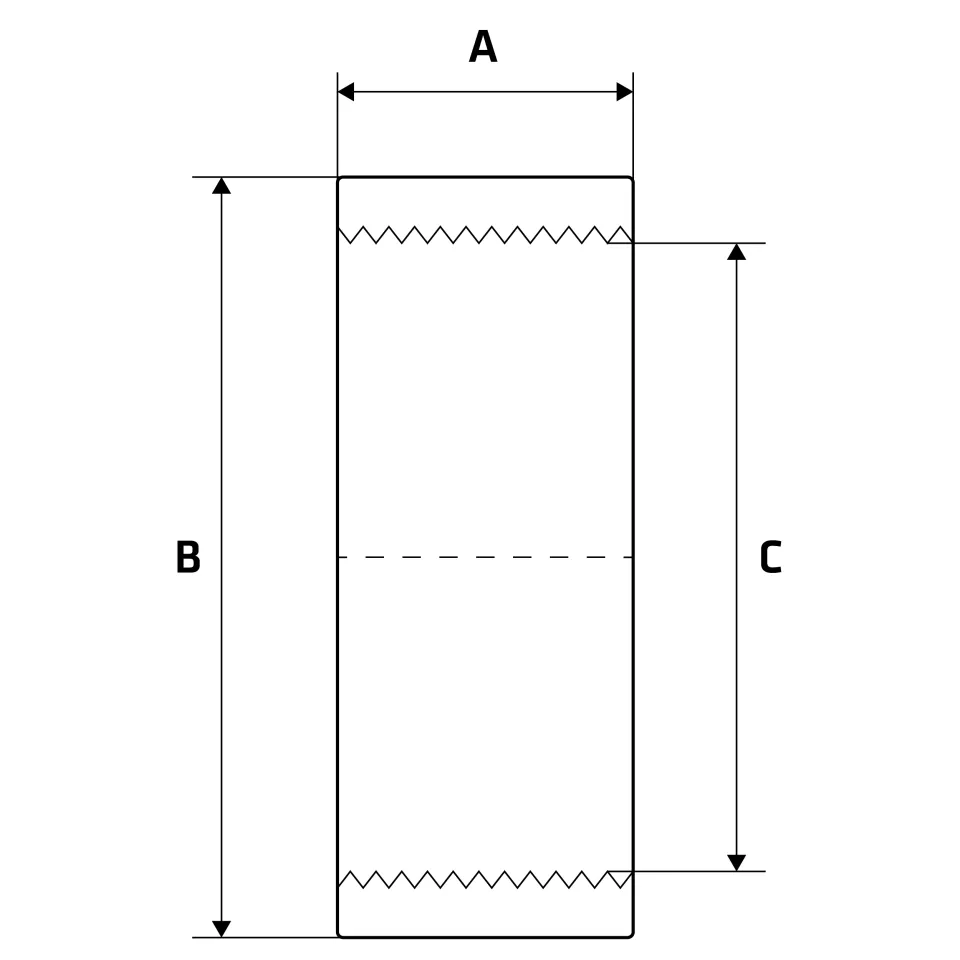

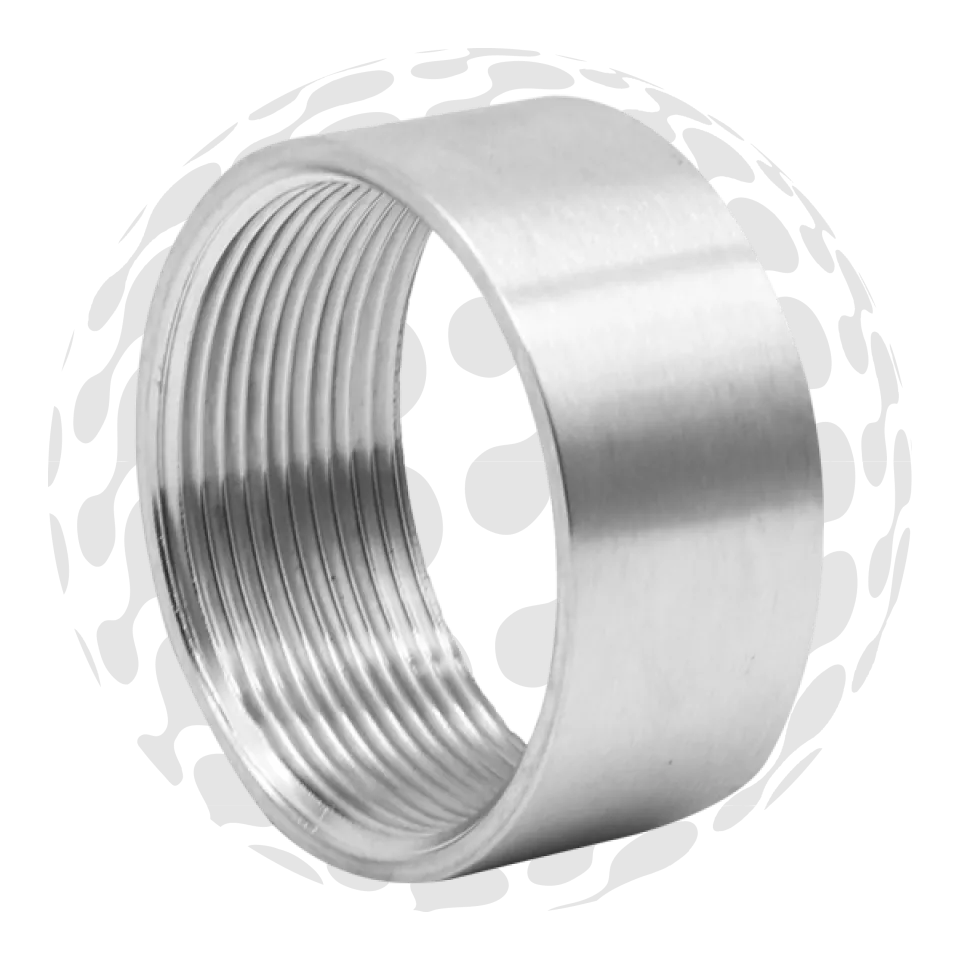

BSP Half Socket
BSP Half Socket
Features
- Ideal For Tank Applications
- Female BSP thread (parallel), which conforms with ISO 7-1/ISO 228-1
- Investment lost wax casting manufactured to ISO 9001
- Working Pressure: 10.3 bar (150.0 PSI)
- Working Temperature: 250°C at 10.3 bar (150.0 PSI)
- Bursting Pressure: Unavailable
- Mill Test Certifications available for all sizes (EN 10201 Type 2.2)
-

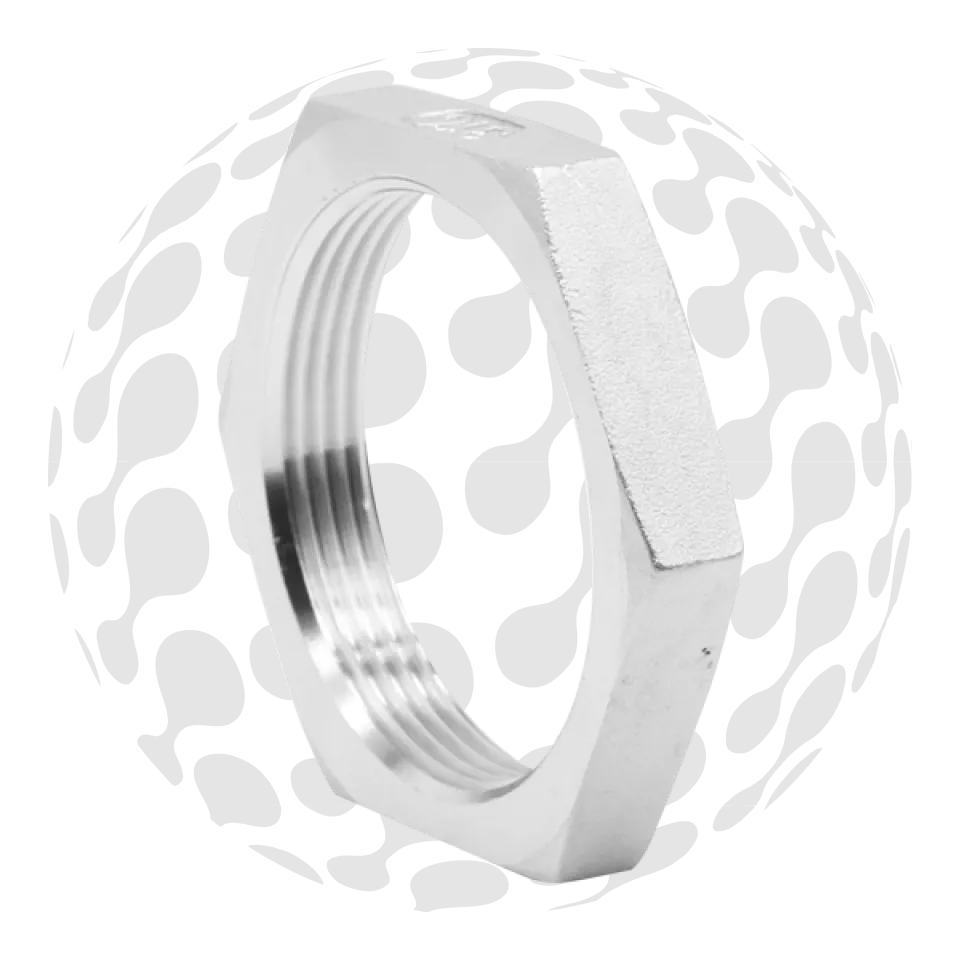

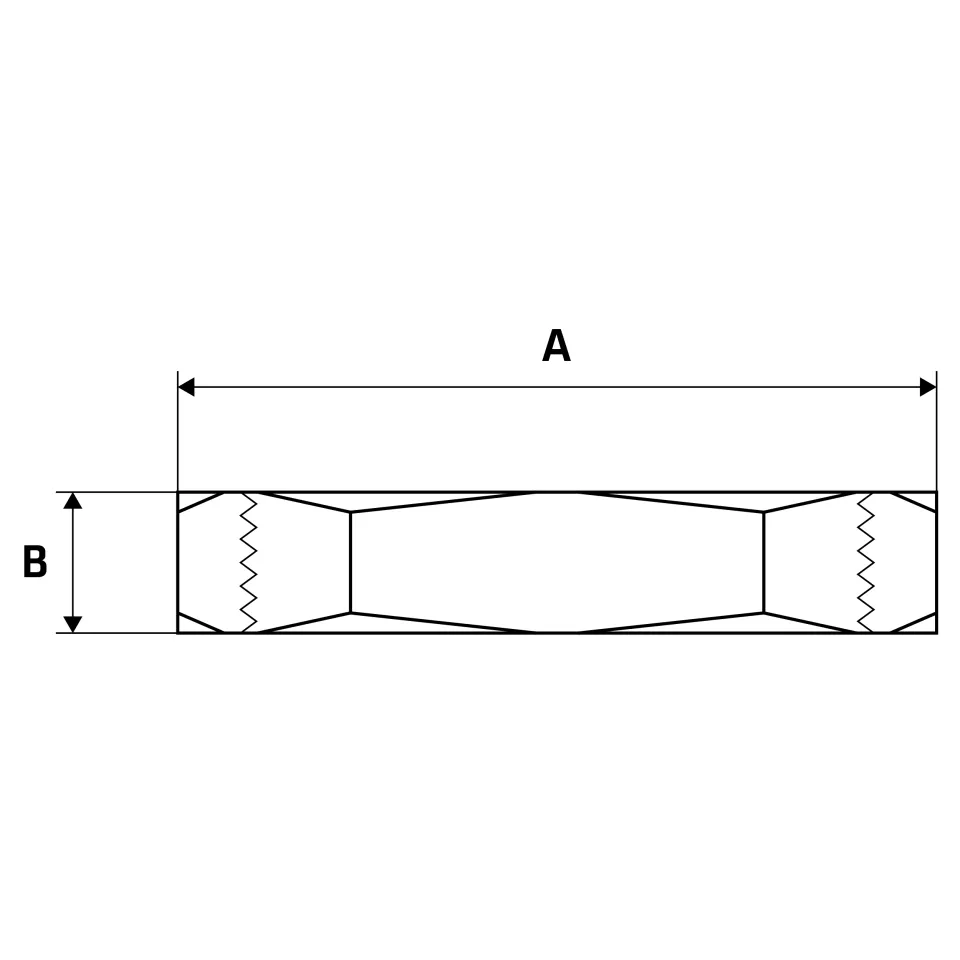

BSP Hex Back Nut
BSP Hex Back Nut
Features
- Use With Nippling Tube
- Female BSP thread (parallel), which conforms with ISO 7-1/ISO 228-1
- Investment lost wax casting manufactured to ISO 9001
- Working Pressure: 10.3 bar (150.0 PSI)
- Working Temperature: 250°C at 10.3 bar (150.0 PSI)
- Bursting Pressure: Unavailable
- Mill Test Certifications available for all sizes (EN 10201 Type 2.2)
-
BSP Tank Skin Fittings
BSP Tank Skin Fittings
Features
- Inlcudes an EPDM O-Ring seal (Temperature Rating: 120°C)
- Female BSP thread (tapered), which conforms with ISO 7-1/ISO 228-1
- This has a tapered thread to ensure it is installed facing the correct direction
- Investment lost wax casting manufactured to ISO 9001
- Working Pressure: 10.3 bar (150.0 PSI)
- Working Temperature: 120°C at 10.3 bar (150.0 PSI)
- Bursting Pressure: Unavailable
- Mill Test Certifications available for all sizes (EN 10201 Type 2.2)
-

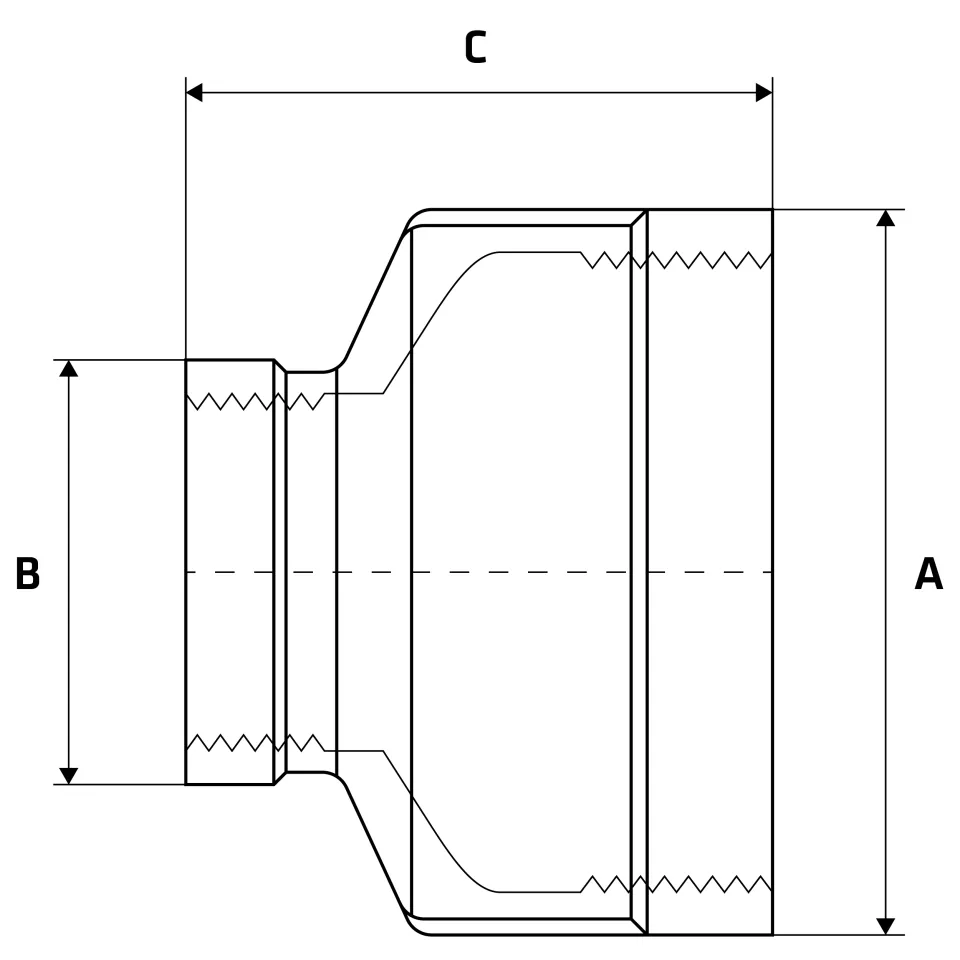

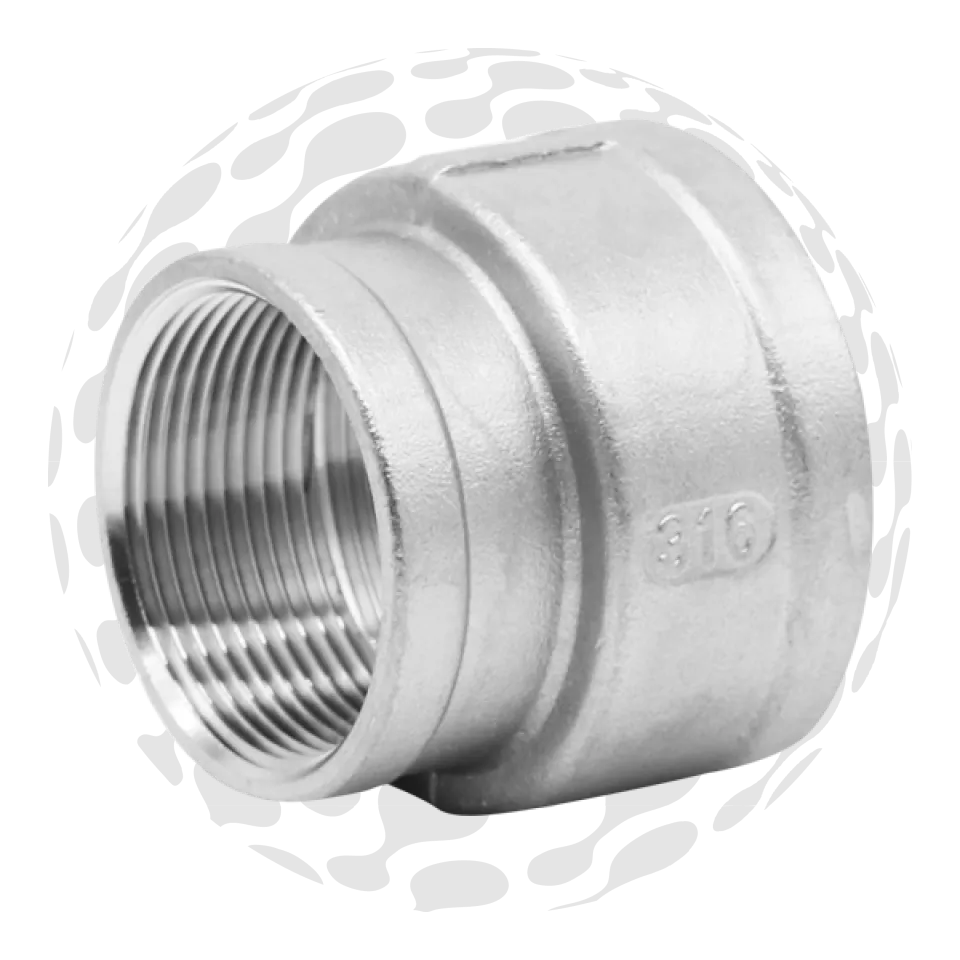

BSP Reducing Socket
BSP Reducing Socket
Features
- BSP Threaded Ends
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Investment lost wax casting manufactured to ISO 9001 : 2015
- BSP thread conforms with ISO 7-1/ISO 228-1
- Female Threads are Parallel (BSPP)
- Mill Test Certificates (EN10201 Type 2.2) available with all sizes
-
BSP Weld Socket Adapter
BSP Weld Socket Adapter
Features
- BSP Threaded End
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Butt Welds To Outside Diameter Tube Sizes
- BSP thread conforms with ISO 7-1/ISO 228-1
- Female Threads are Parallel (BSPP)
- Flat Spots For Ease Of Tightening
-
BSP Socket to RJT Male Adapter
BSP Socket to RJT Male Adapter
Features
- No Need For Welding! Save Time And Effort With One-Piece Adapters
- BSP Threaded Socket
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Flat Spots For Ease Of Tightening
- BSP thread conforms with ISO 7-1/ISO 228-1
- Female Threads are Parallel (BSPP)
-
BSP Socket to Tri Clover Adapter
BSP Socket to Tri Clover Adapter
Features
- BSP Threaded End - BSP Female
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Flat Spot For Ease Of Tightening
- BSP thread conforms with ISO 7-1/ISO 228-1
- Female Threads are Parallel (BSPP)
Tees
-

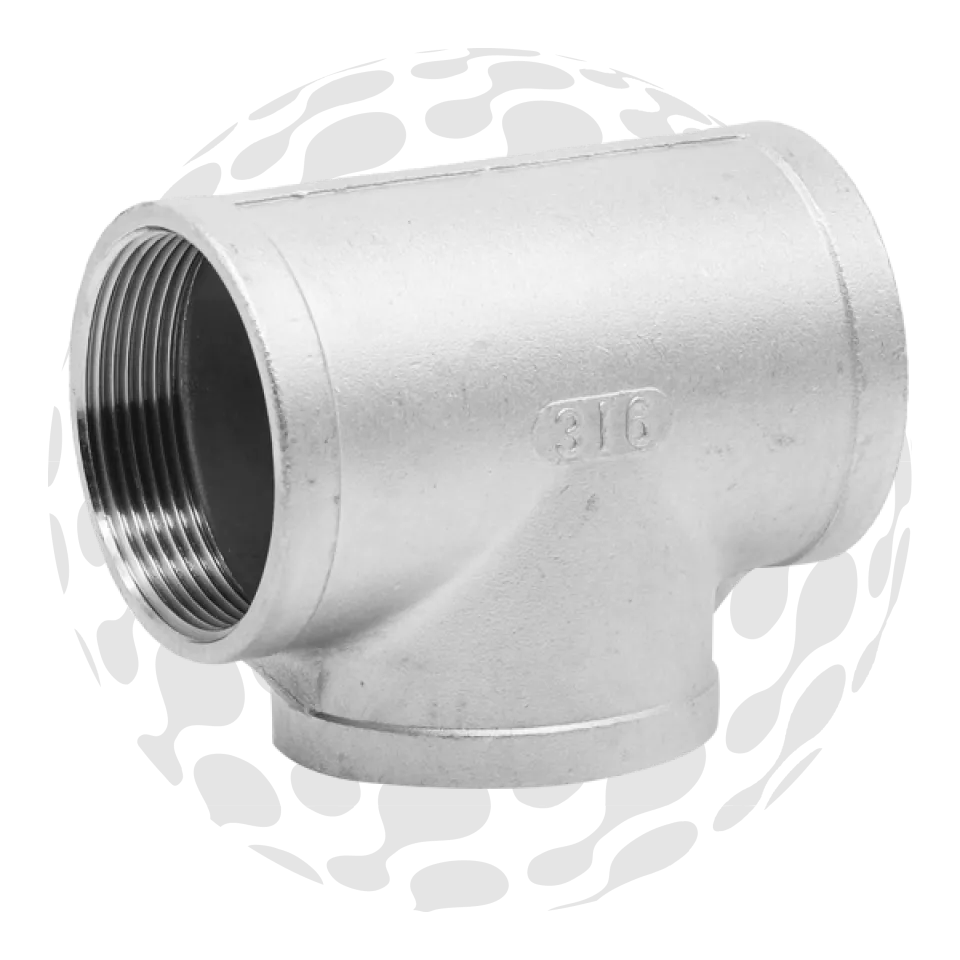

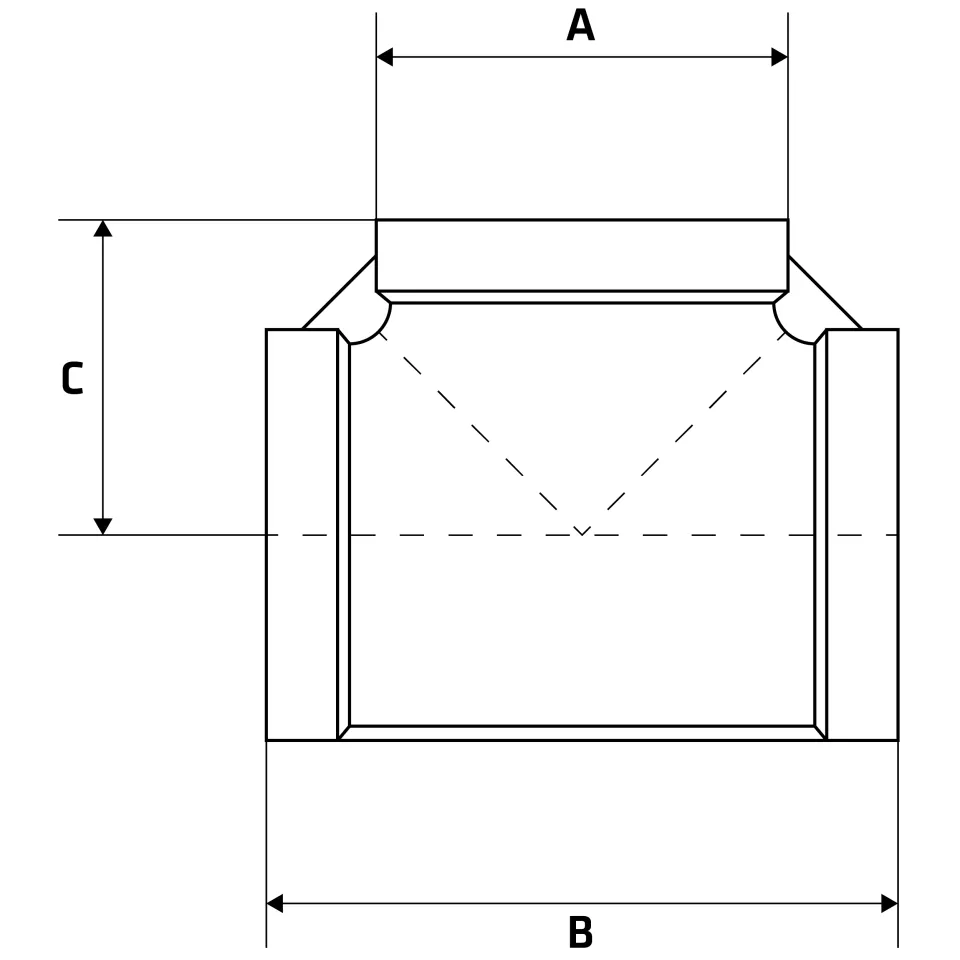

BSP Tee
BSP Tee
Features
- BSP Threaded Ends
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Investment lost wax casting manufactured to ISO 9001 : 2015
- BSP thread conforms with ISO 7-1/ISO 228-1
- Female Threads are Parallel (BSPP)
- Mill Test Certificates (EN10201 Type 2.2) available with all sizes
-

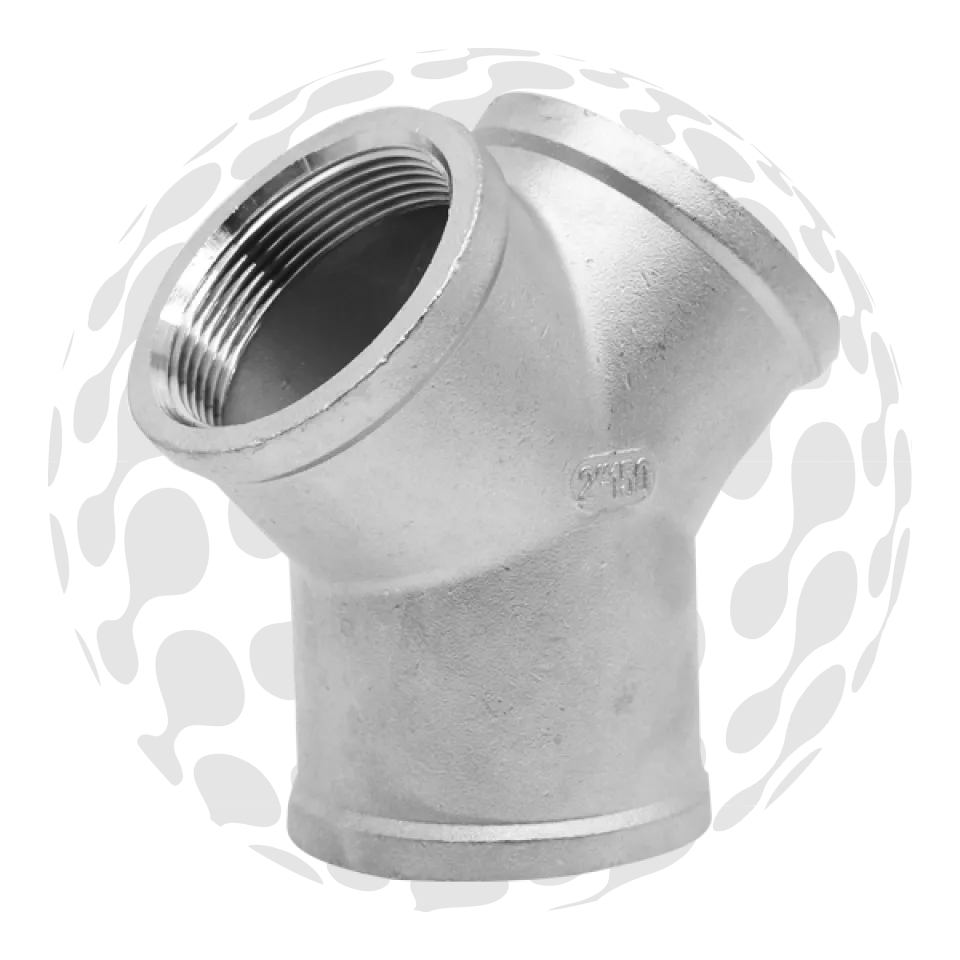

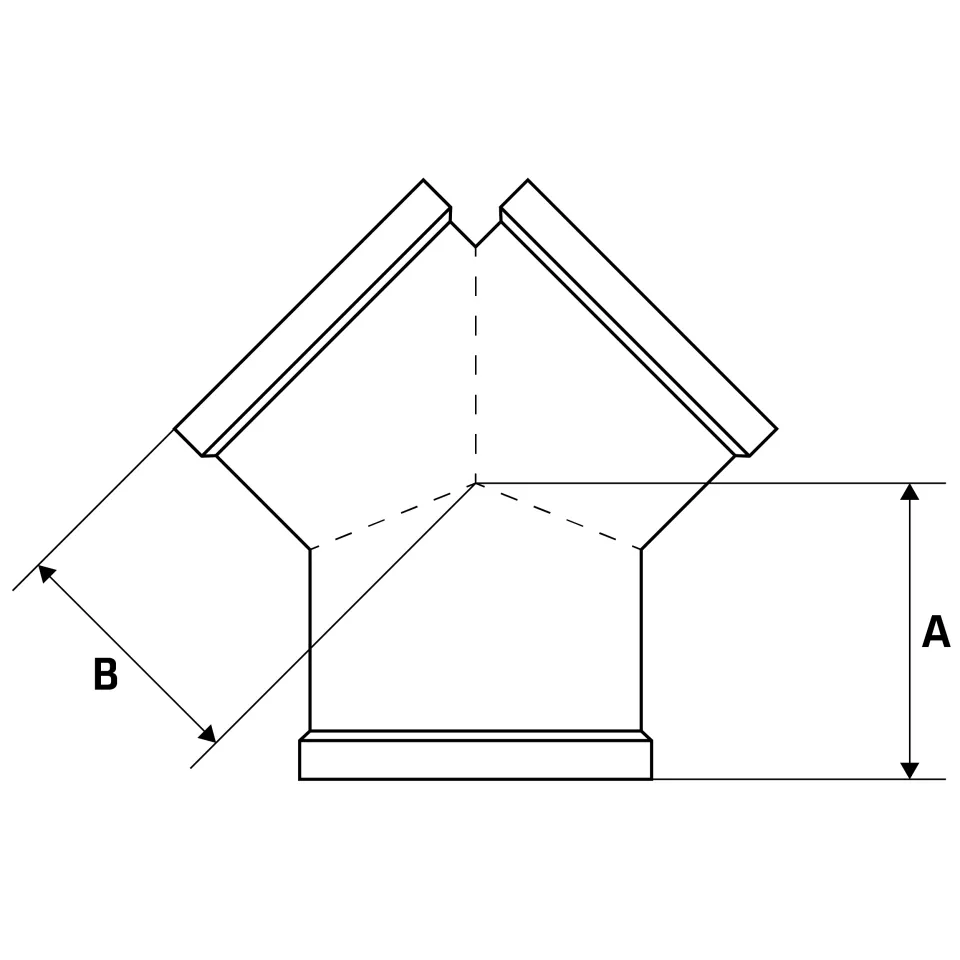

BSP 'Y' Type Tee
BSP 'Y' Type Tee
Features
- BSP Threaded Ends
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Investment lost wax casting manufactured to ISO 9001 : 2015
- BSP thread conforms with ISO 7-1/ISO 228-1
- Female Threads are Parallel (BSPP)
- Mill Test Certificates (EN10201 Type 2.2) available with all sizes
- 45°Off Main Branch
-

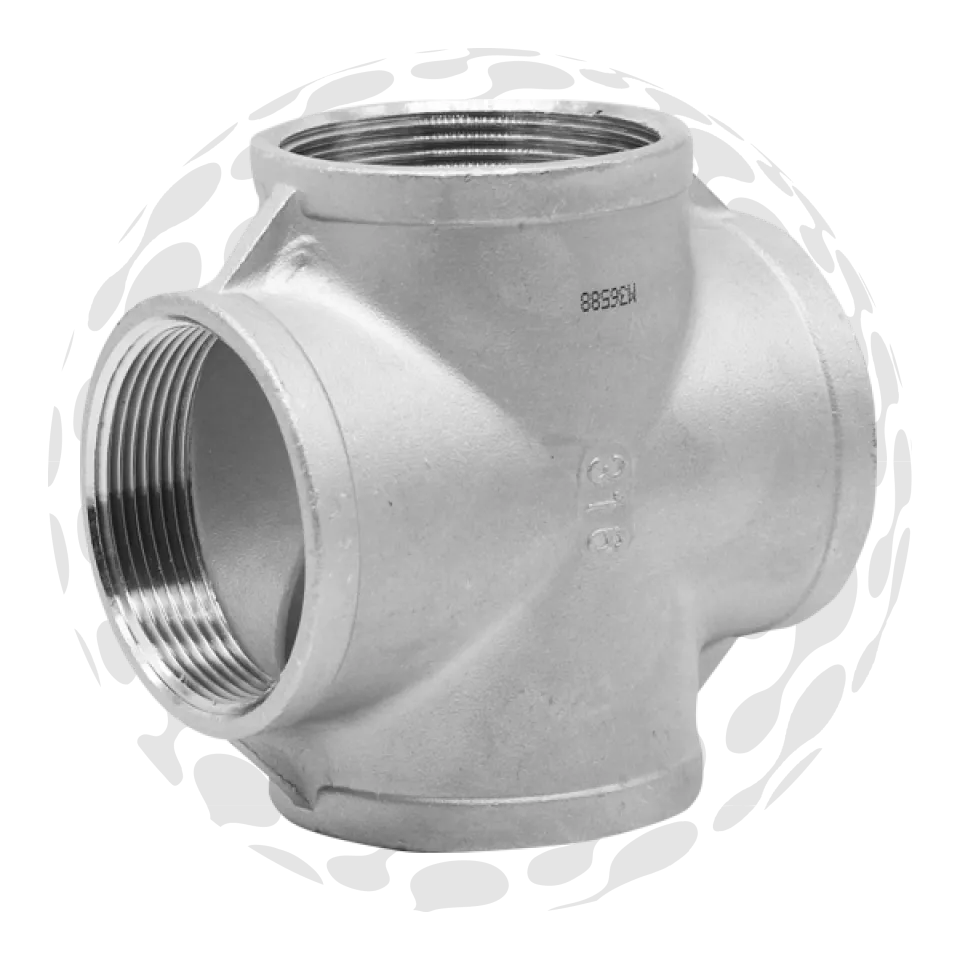

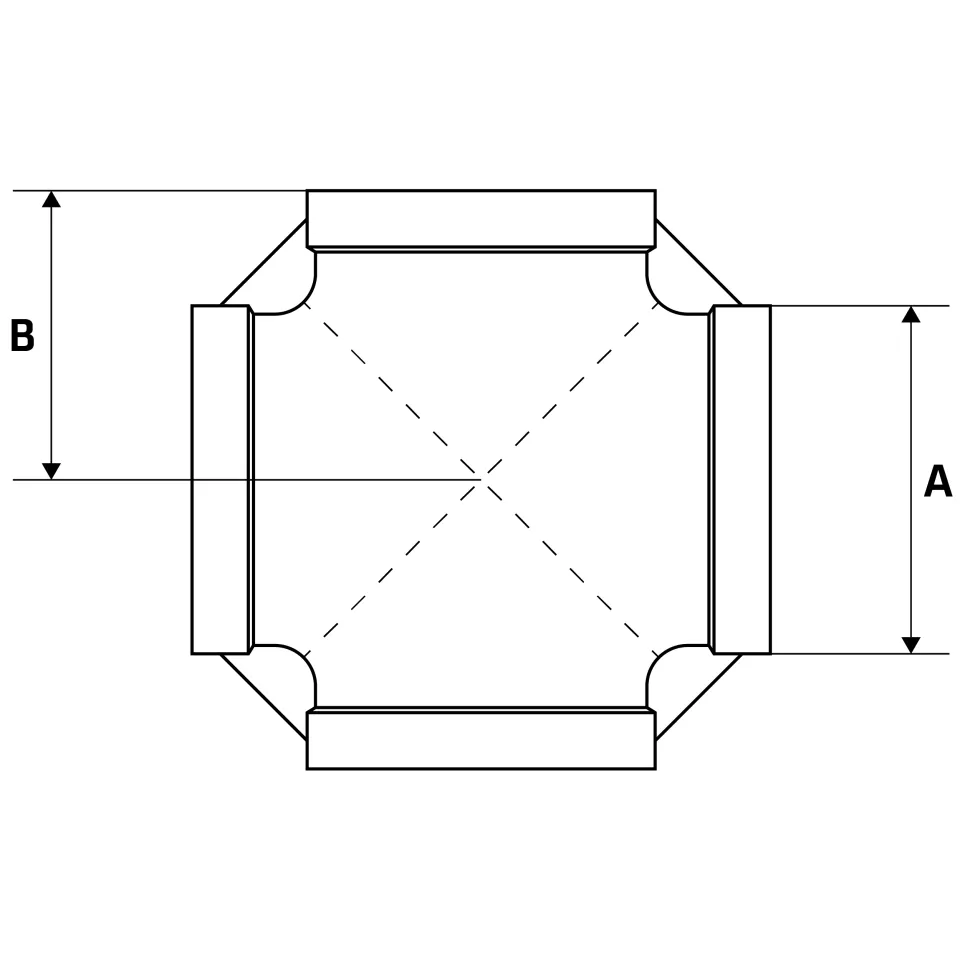

BSP Cross
BSP Cross
Features
- BSP Threaded Ends
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Investment lost wax casting manufactured to ISO 9001 : 2015
- BSP thread conforms with ISO 7-1/ISO 228-1
- Female Threads are Parallel (BSPP)
- Mill Test Certificates (EN10201 Type 2.2) available with all sizes
3000LB Threaded Fittings
-

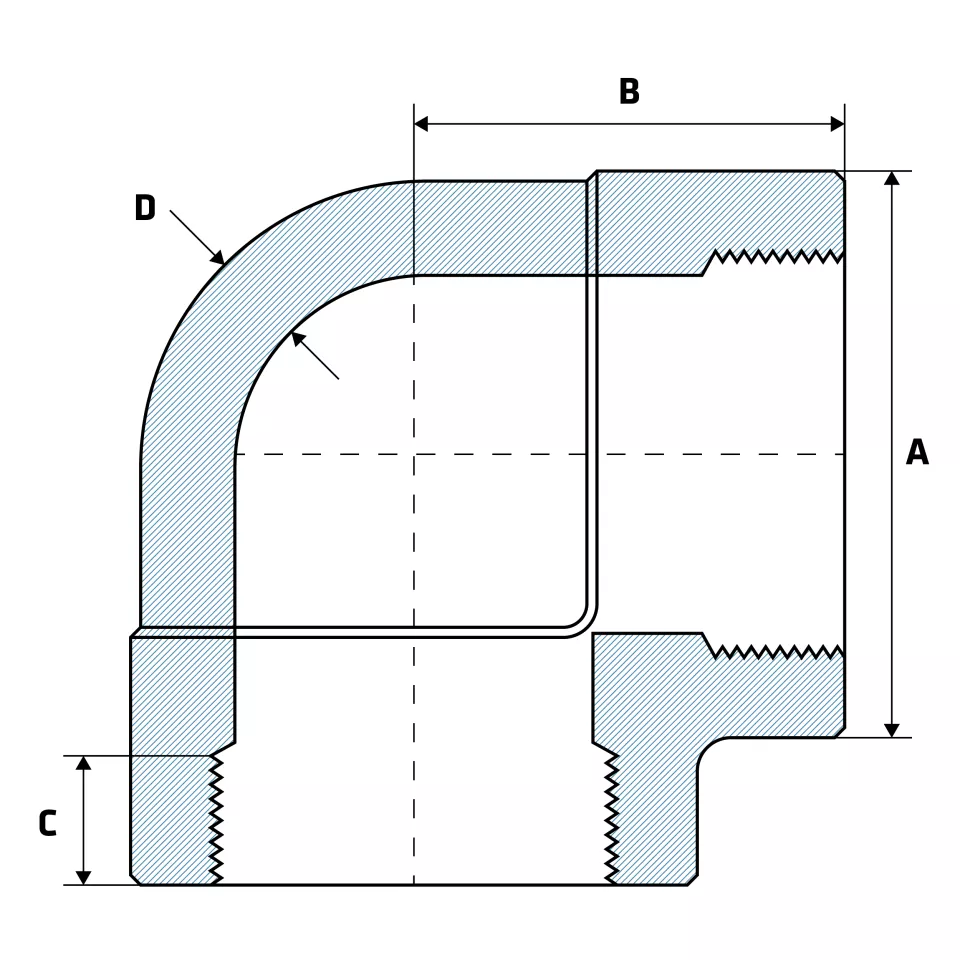

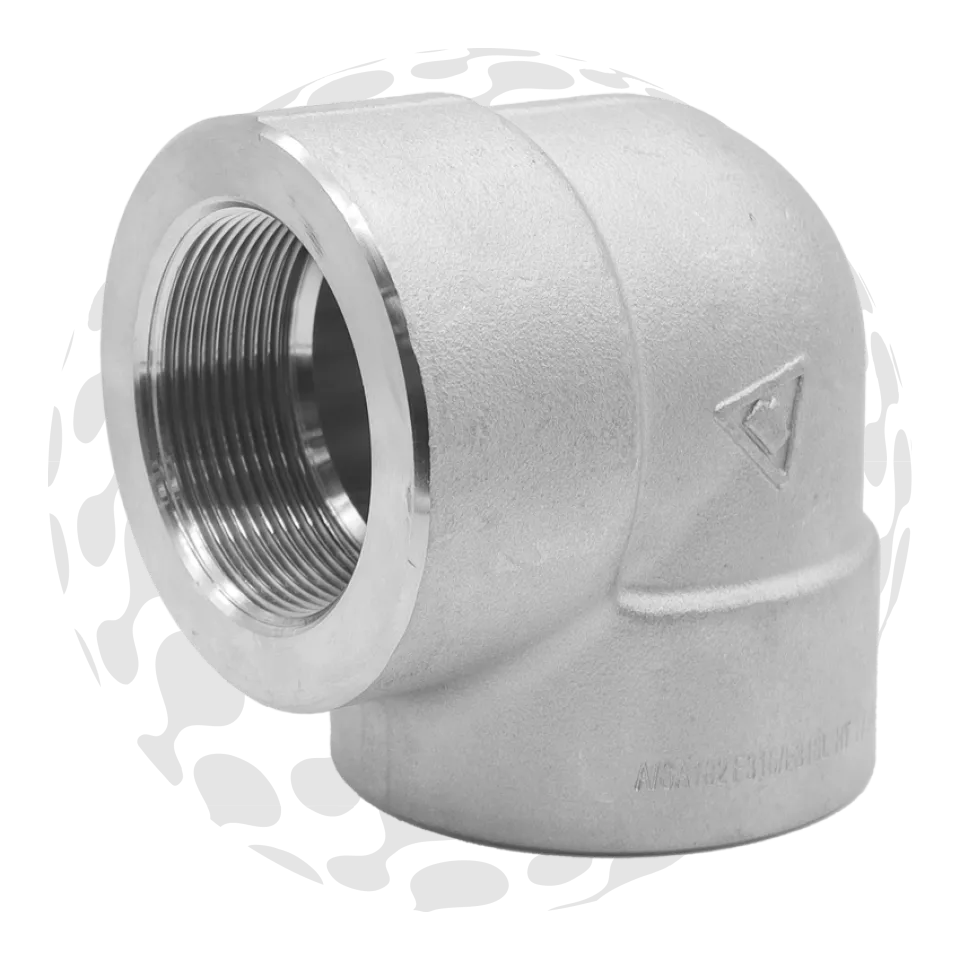

3000LB BSP Elbow 90°
3000LB BSP Elbow 90°
Features
- 3000LB rated
- ASME B16.11, ASTM A182
- Any measurements that include a *, are indications that the measurement is a 'minimum measurement' as per their Manufacturing Standard.
-

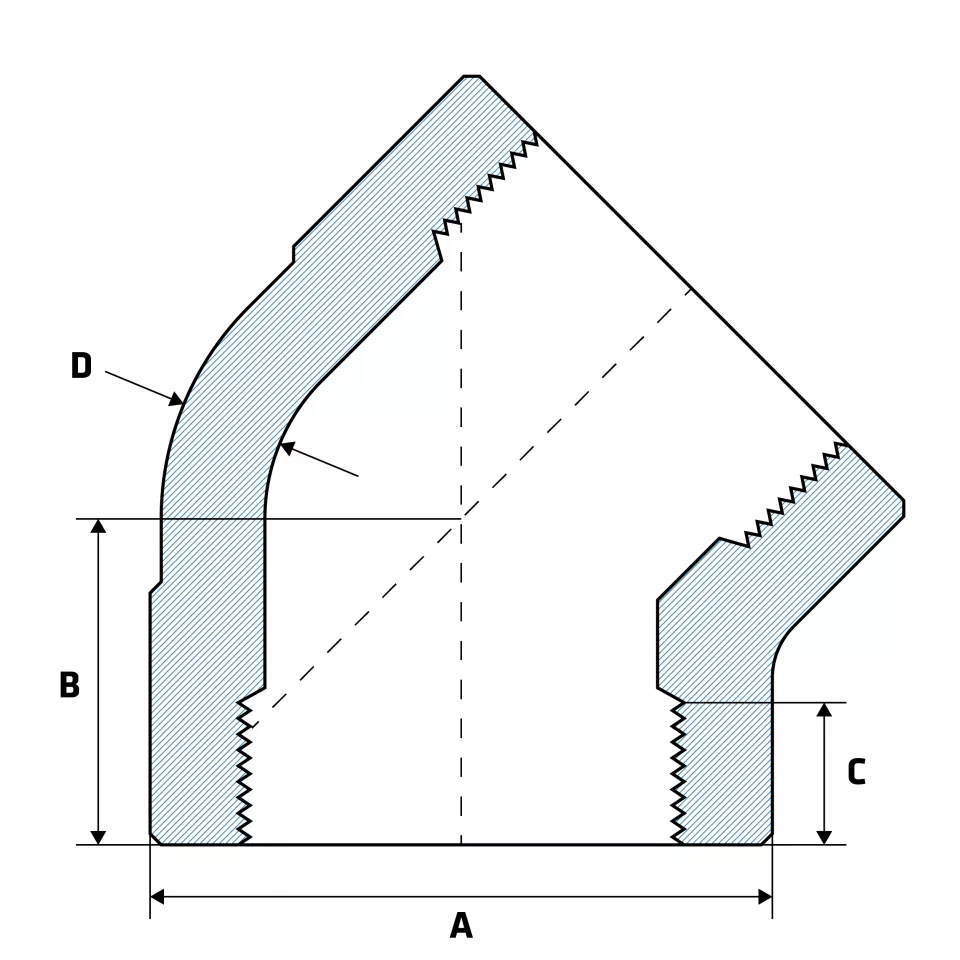

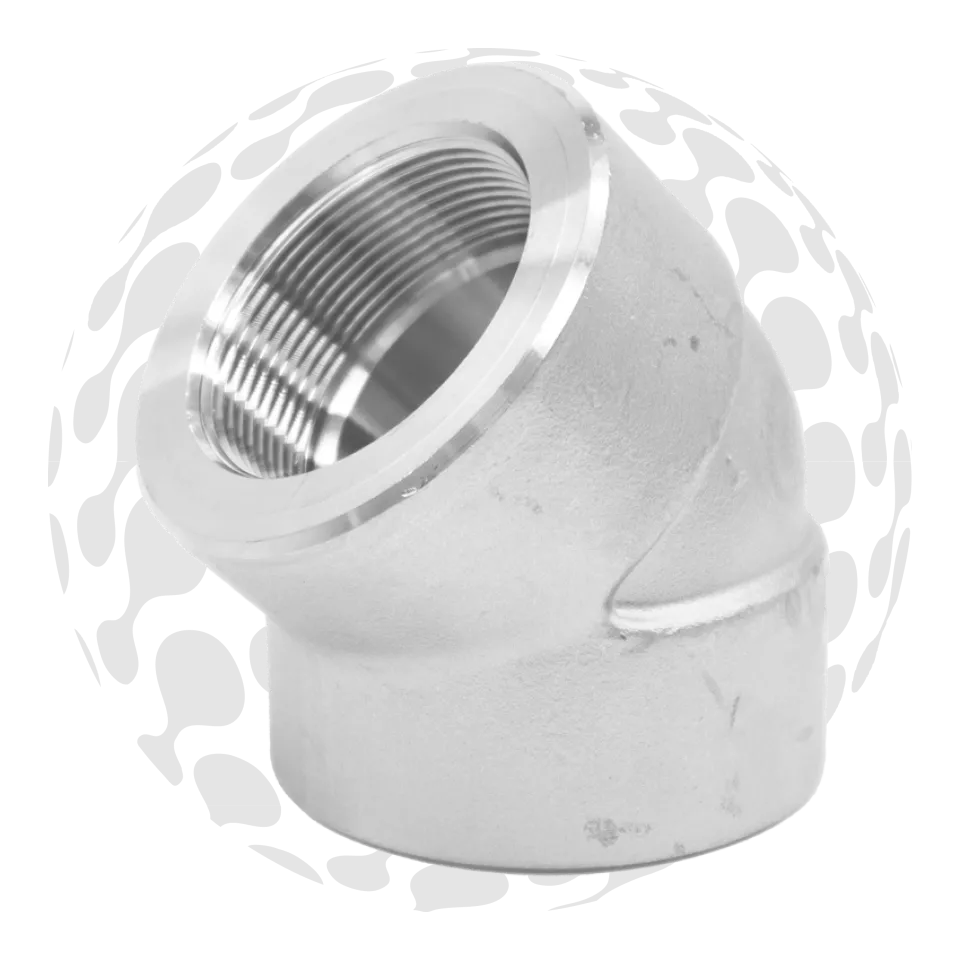

3000LB BSP Elbow 45°
3000LB BSP Elbow 45°
Features
- 3000LB Rated
- ASME B16.11, ASTM A182
- Any measurements that include a *, are indications that the measurement is a 'minimum measurement' as per their Manufacturing Standard.
-

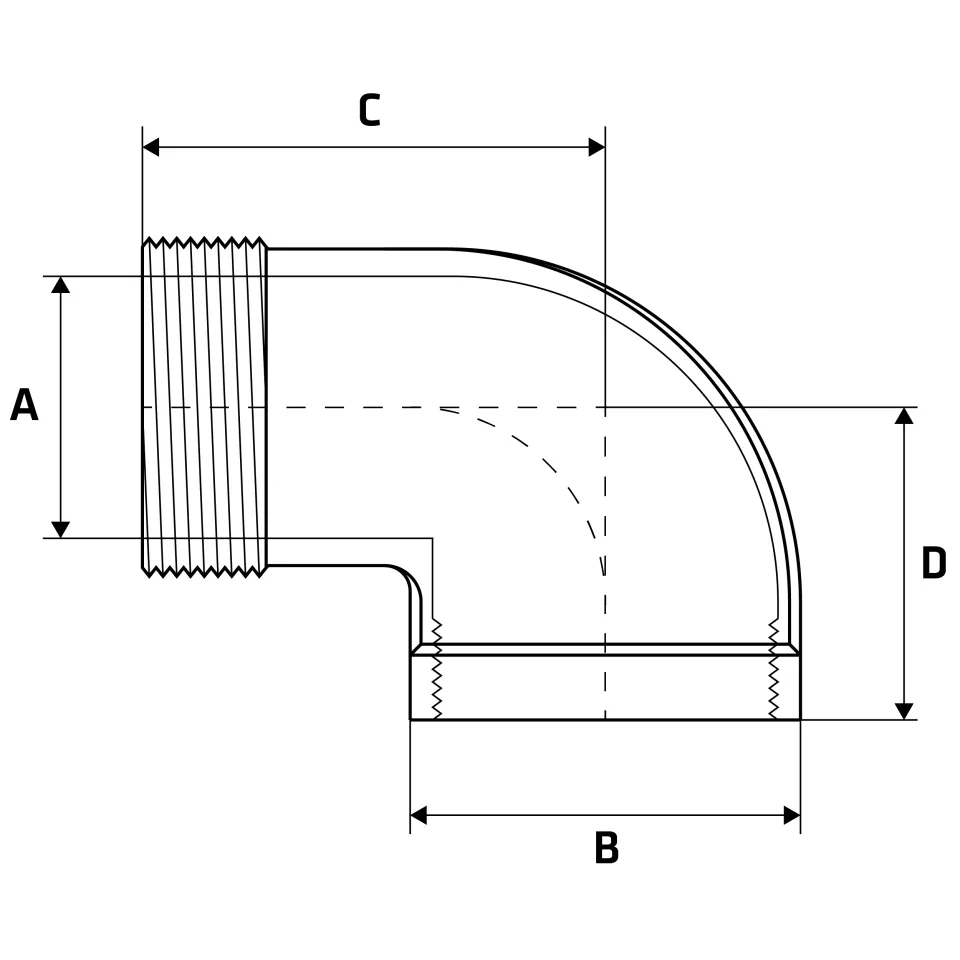

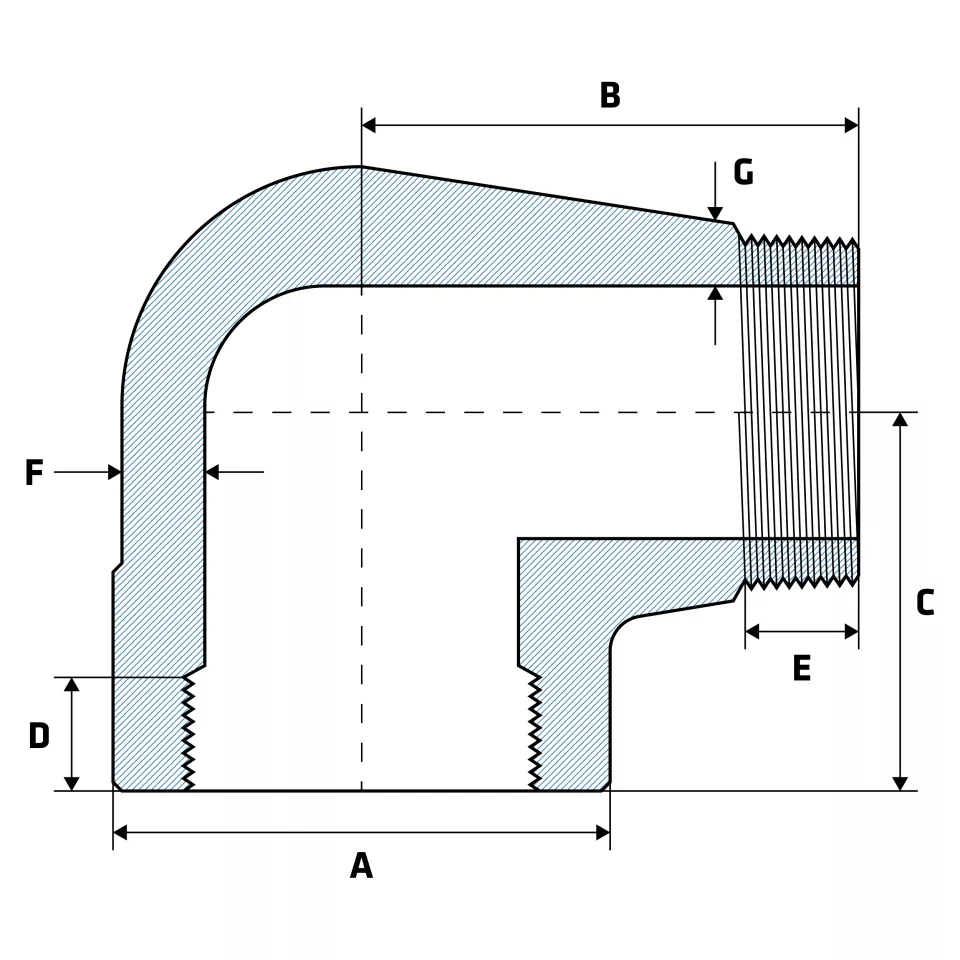

3000LB BSP Male-Female Elbow 90°
3000LB BSP Male-Female Elbow 90°
Features
- 3000LB Rated
- ASME B16.11, ASTM A182
- Any measurements that include a *, are indications that the measurement is a 'minimum measurement' as per their Manufacturing Standard.
-

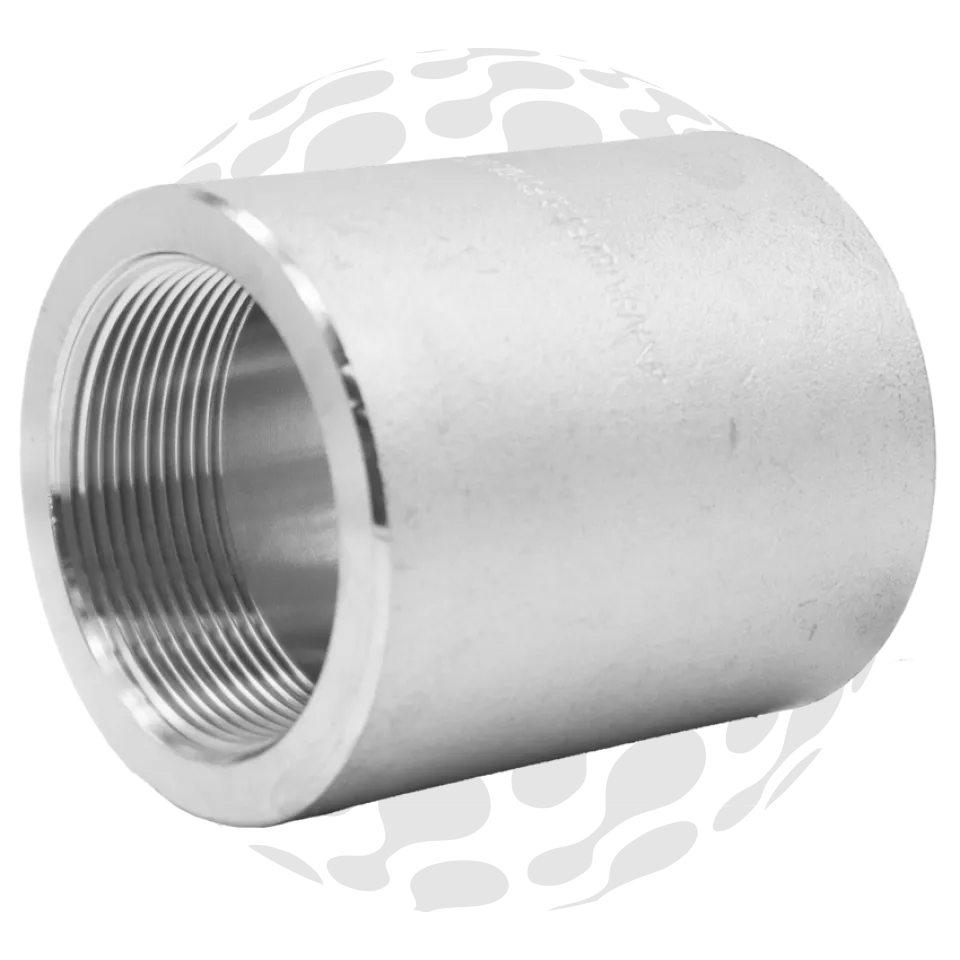

3000LB BSP Socket
3000LB BSP Socket
Features
- 3000LB Rated
- ASME B16.11, ASTM A182
- Any measurements that include a *, are indications that the measurement is a 'minimum measurement' as per their Manufacturing Standard.
-

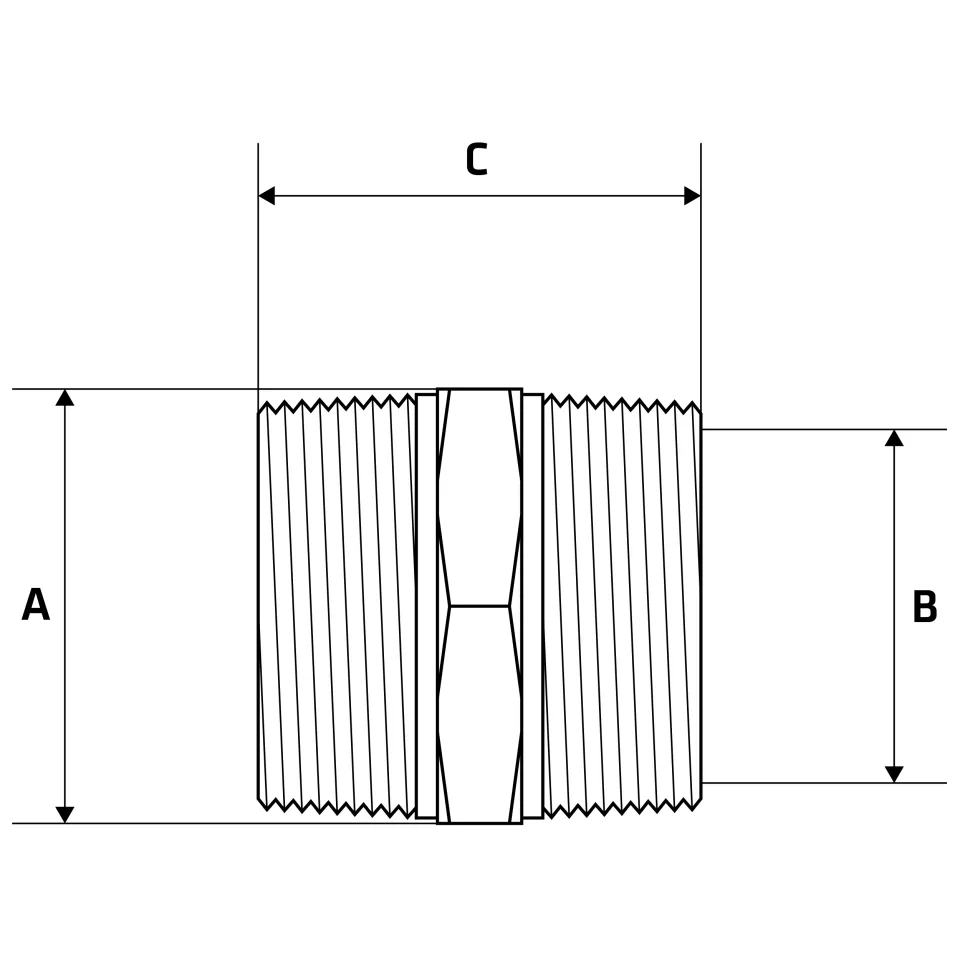

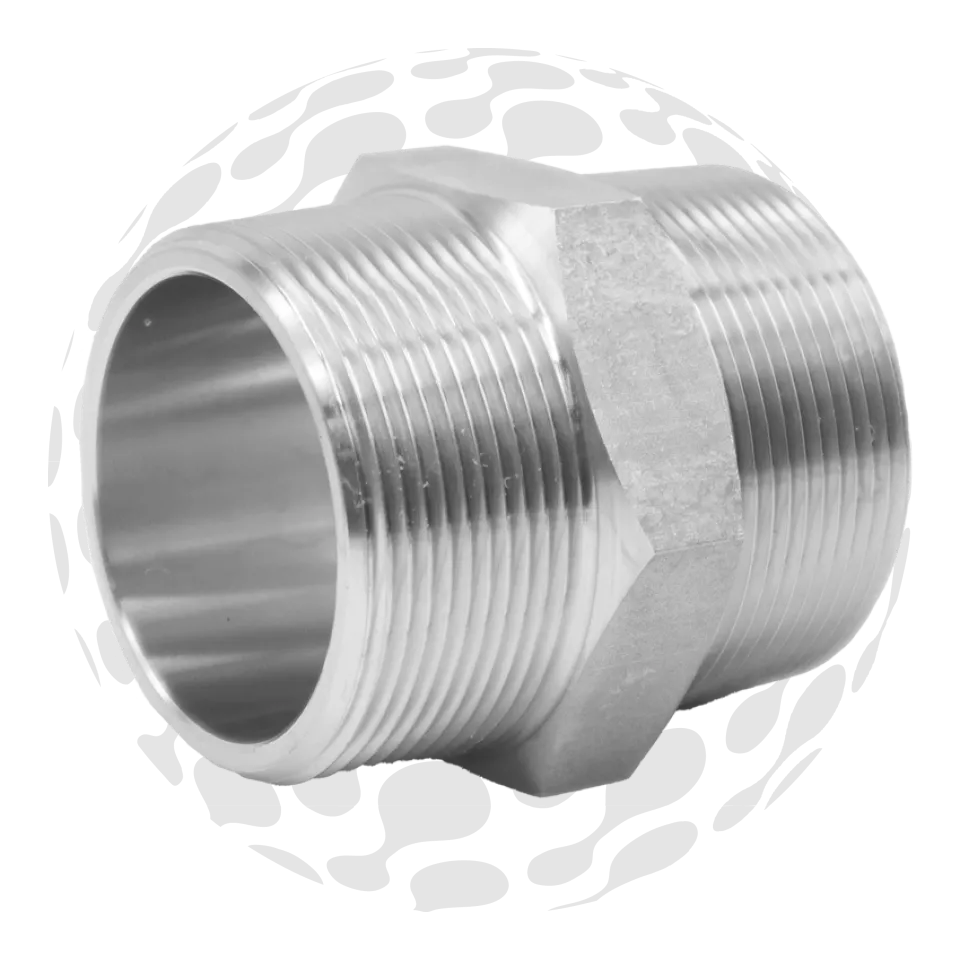

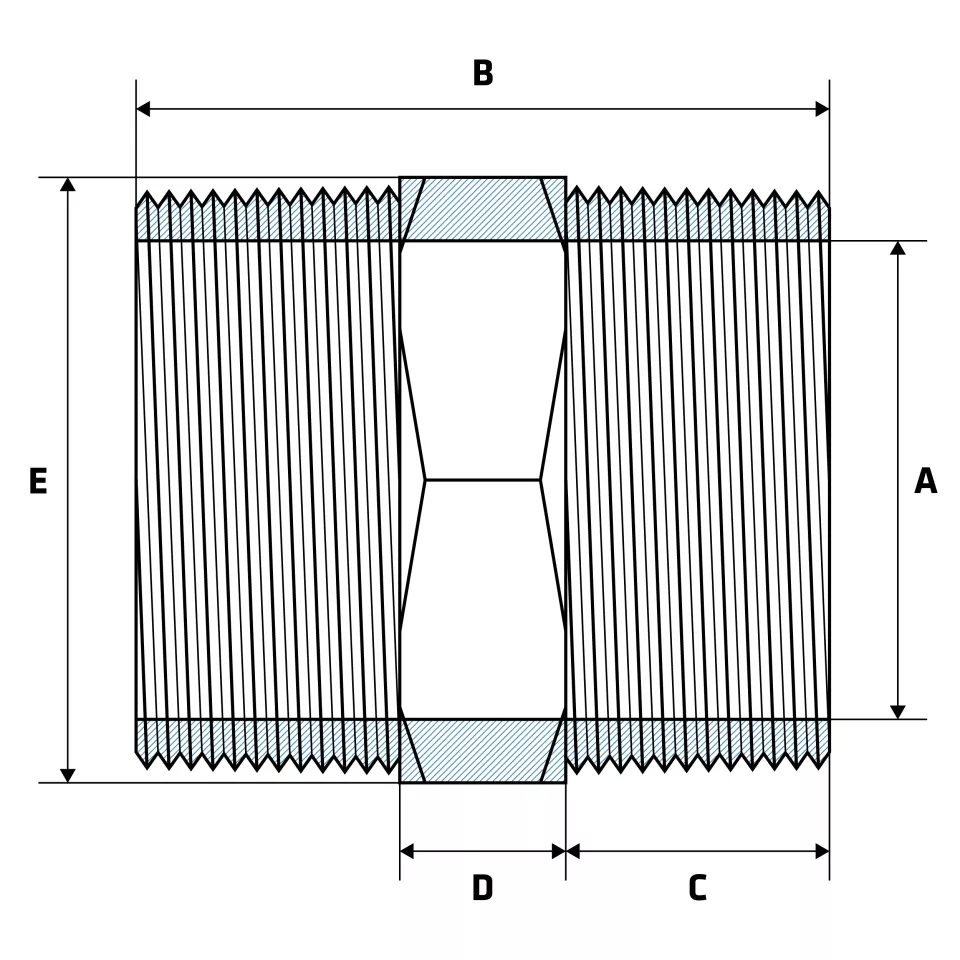

3000LB BSP Hex Nipple
3000LB BSP Hex Nipple
Features
- 3000LB Rated
- BS 3799, ASTM A182
- Any measurements that include a *, are indications that the measurement is a 'minimum measurement' as per their Manufacturing Standard.
- **Please note that the following fittings are BSPP, not BSPT as per our norm (15NB, 25NB & 32NB). New stock arriving will replace these with BSPT**
-

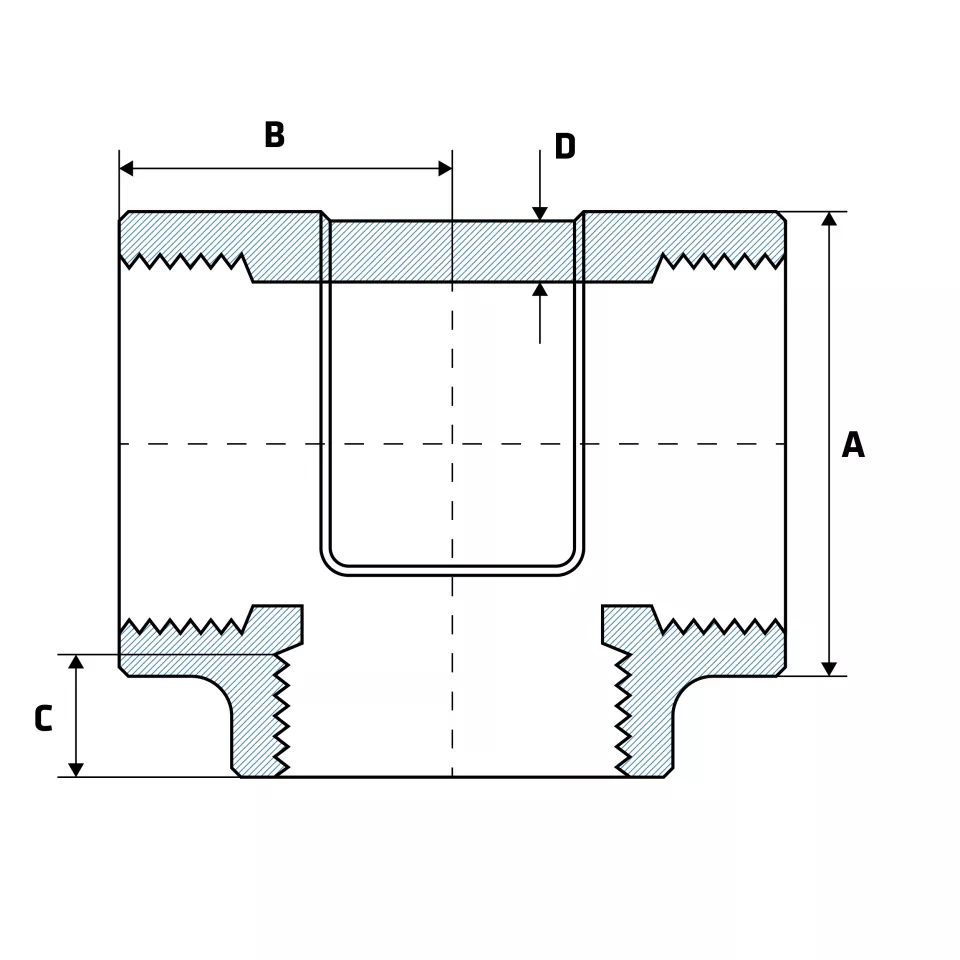

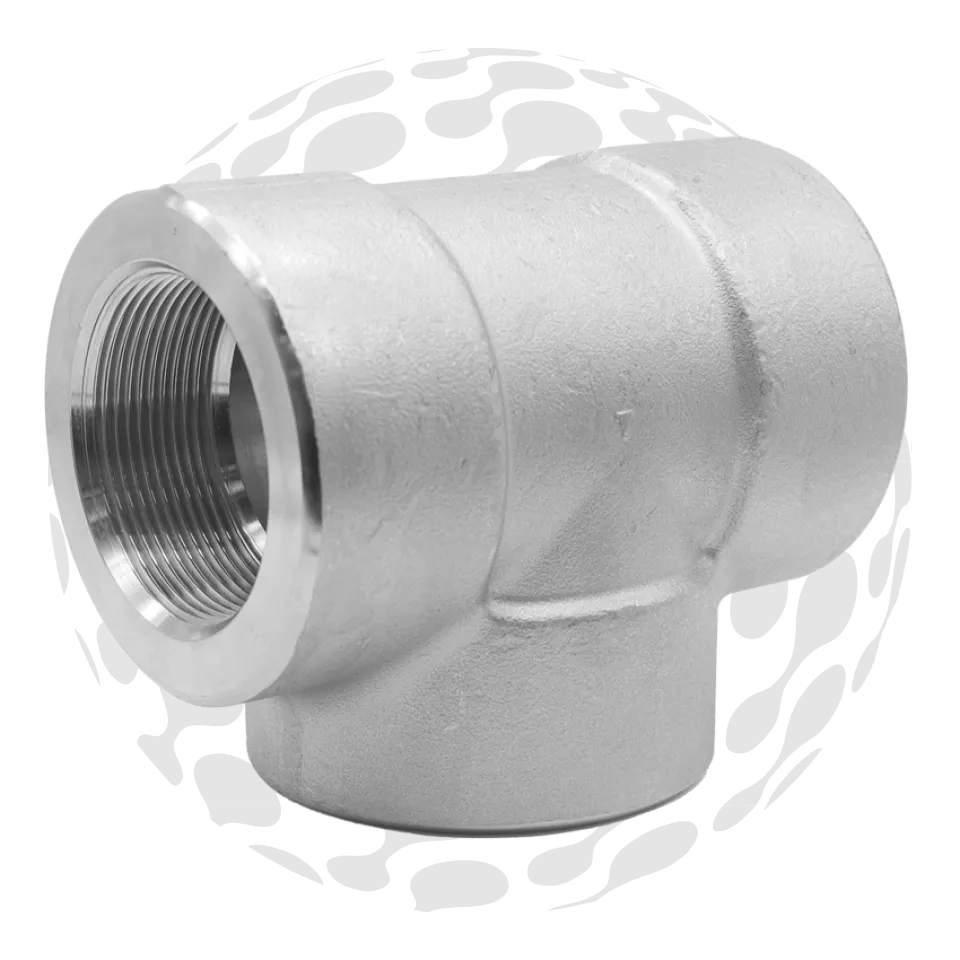

3000LB BSP Tee
3000LB BSP Tee
Features
- 3000LB Rated
- ASME B16.11, ASTM A182
- Any measurements that include a *, are indications that the measurement is a 'minimum measurement' as per their Manufacturing Standard.
-

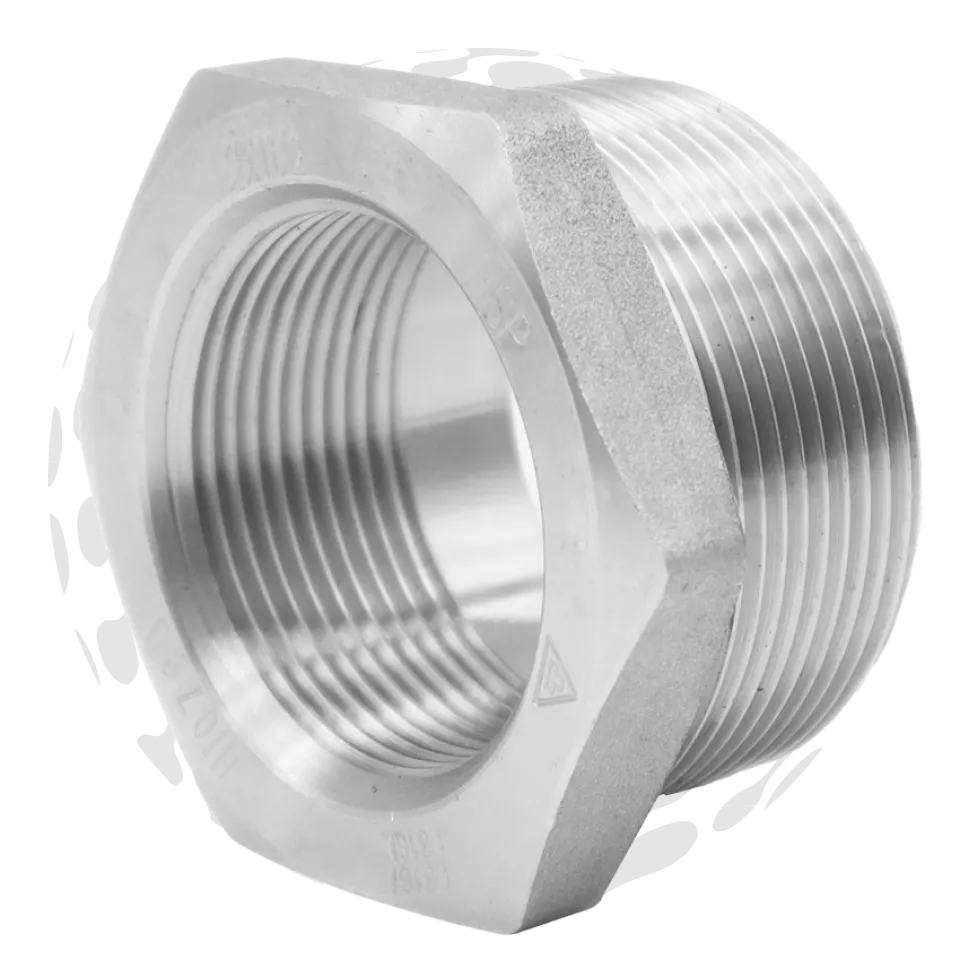

3000LB BSP Bush
3000LB BSP Bush
Features
- 3000LB rated
- ASME B16.11, ASTM A182
- Any measurements that include a *, are indications that the measurement is a 'minimum measurement' as per their Manufacturing Standard.
- **Please note that the following fittings have an external BSPP thread, not BSPT as per our norm (25NBx20NB). New stock arriving will replace these with BSPT**
-

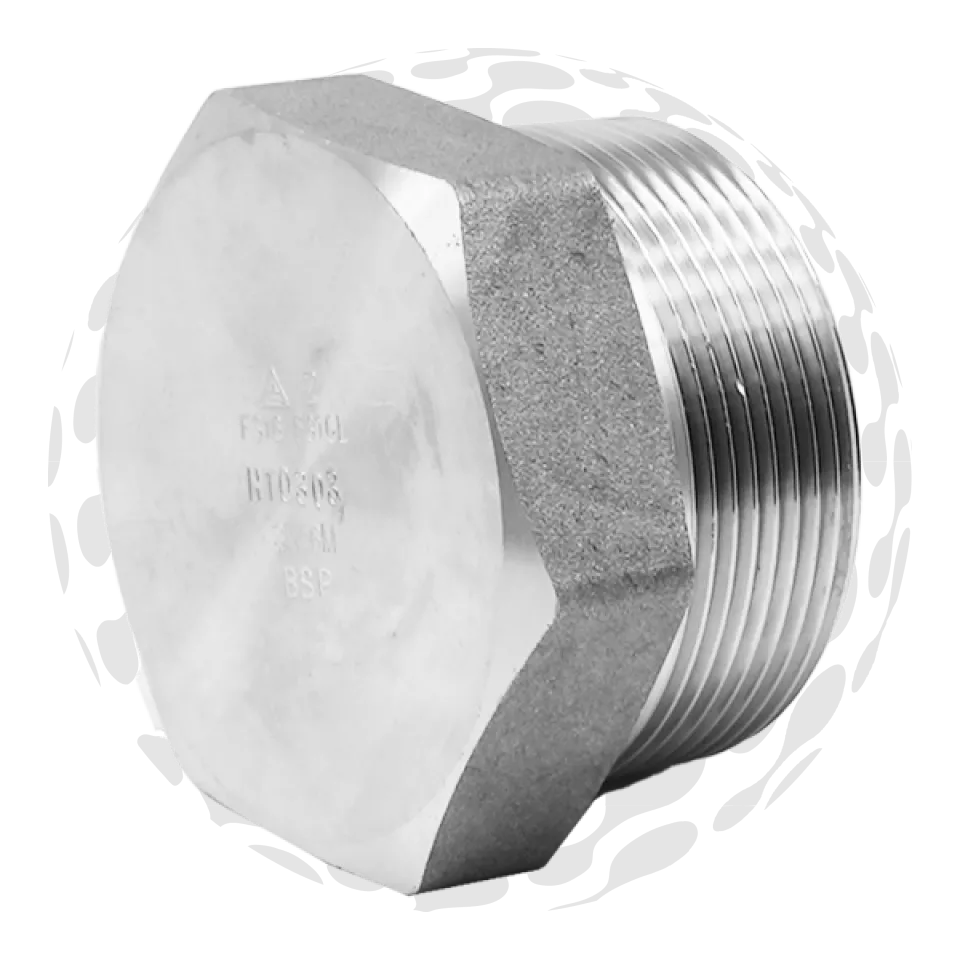

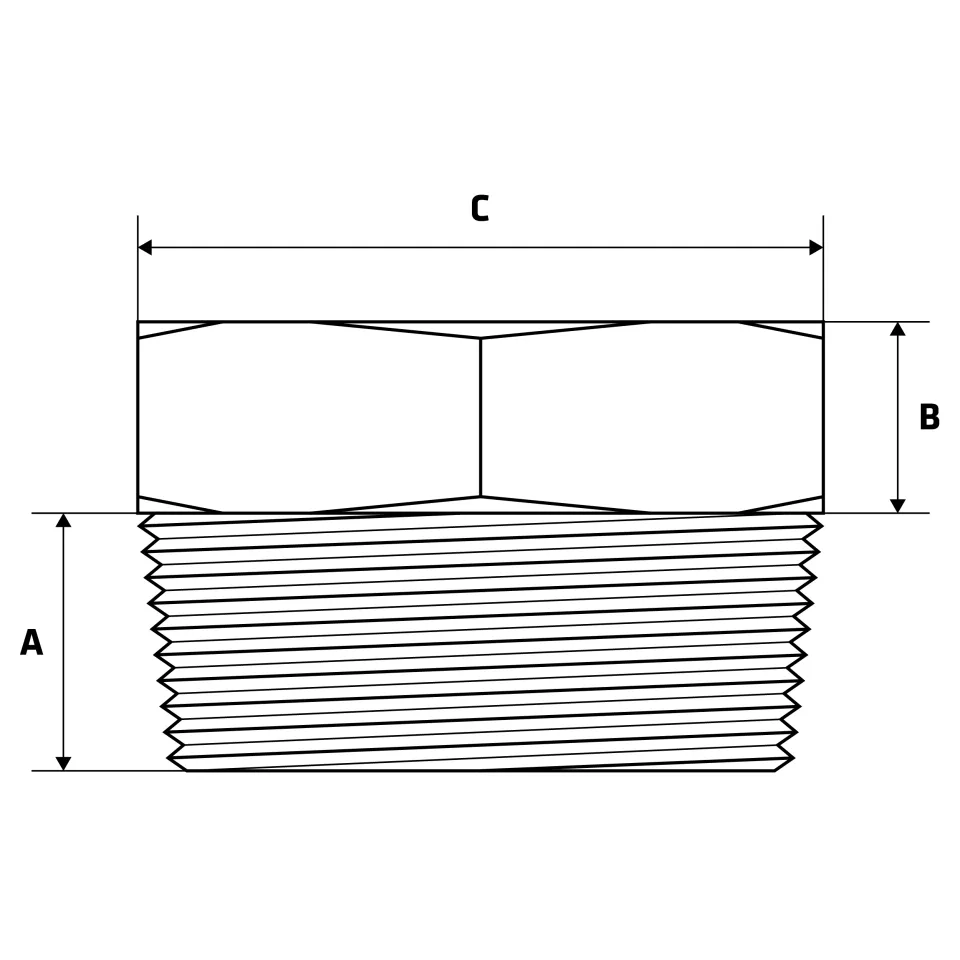

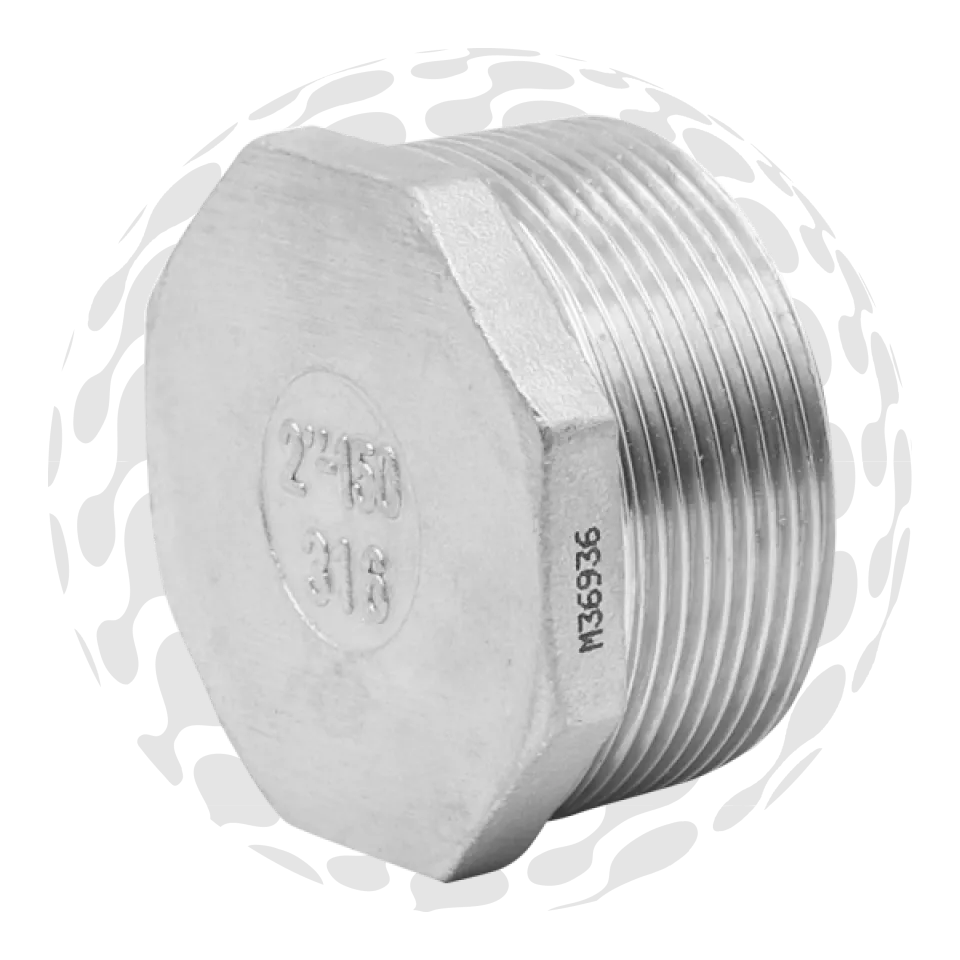

3000LB BSP Hex Plug
3000LB BSP Hex Plug
Features
- 3000LB Rated
- ASME B16.11, ASTM A182
- Any measurements that include a *, are indications that the measurement is a 'minimum measurement' as per their Manufacturing Standard.
- **Please note that the following fittings are BSPP, not BSPT as per our norm (20NB, 25NB, 32NB, 40NB & 50NB). New stock arriving will replace these with BSPT**
-

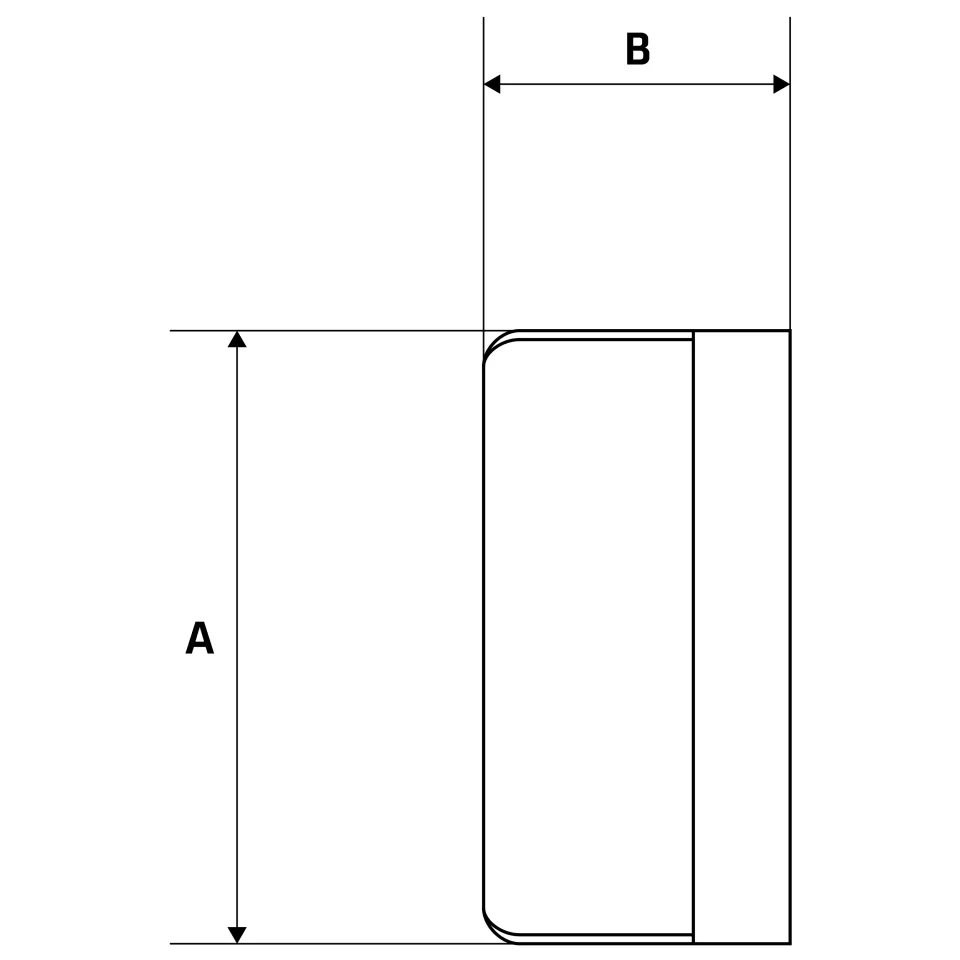

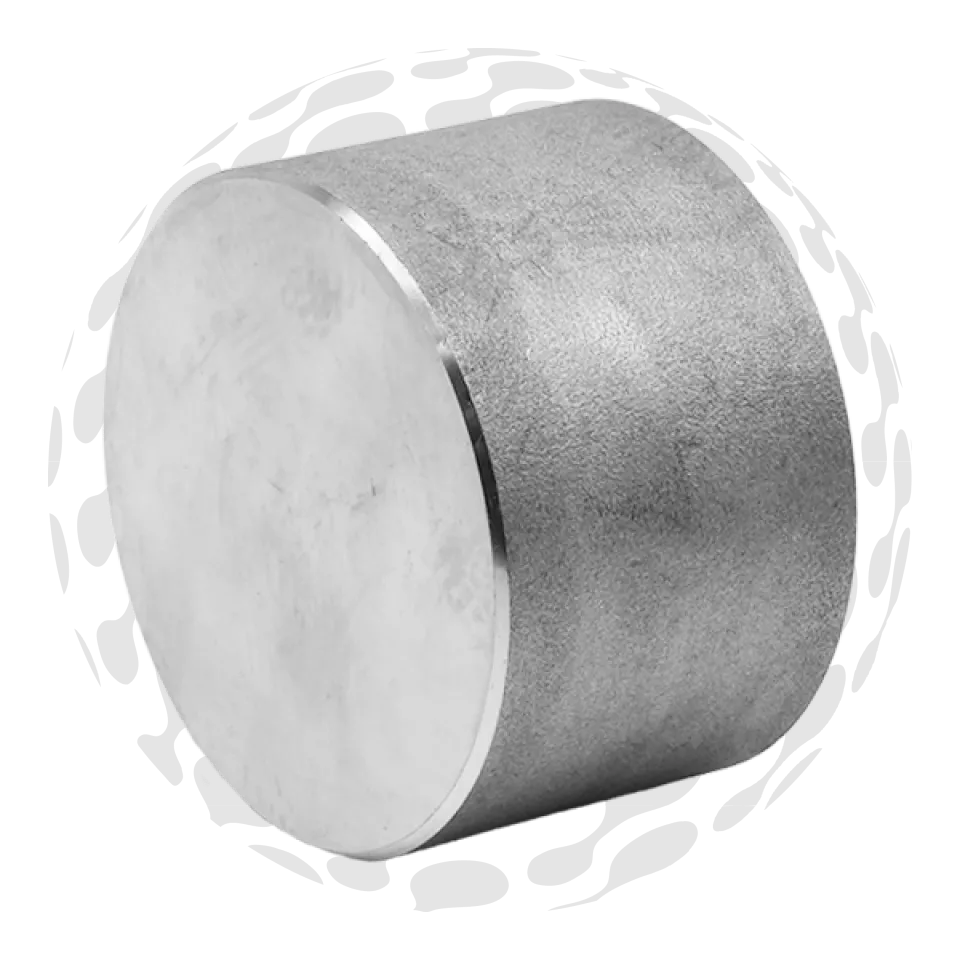

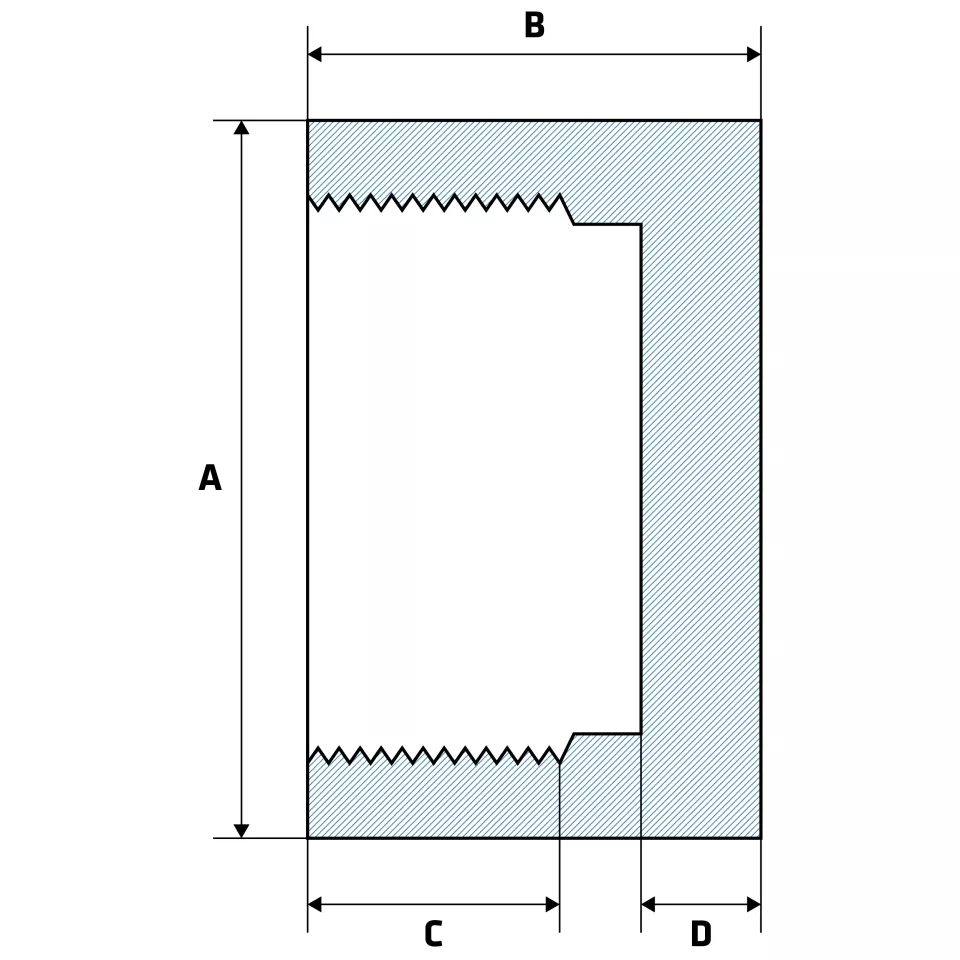

3000LB BSP Round Cap
3000LB BSP Round Cap
Features
- 3000LB Rated
- ASME B16.11, ASTM A182
- Any measurements that include a *, are indications that the measurement is a 'minimum measurement' as per their Manufacturing Standard.
-

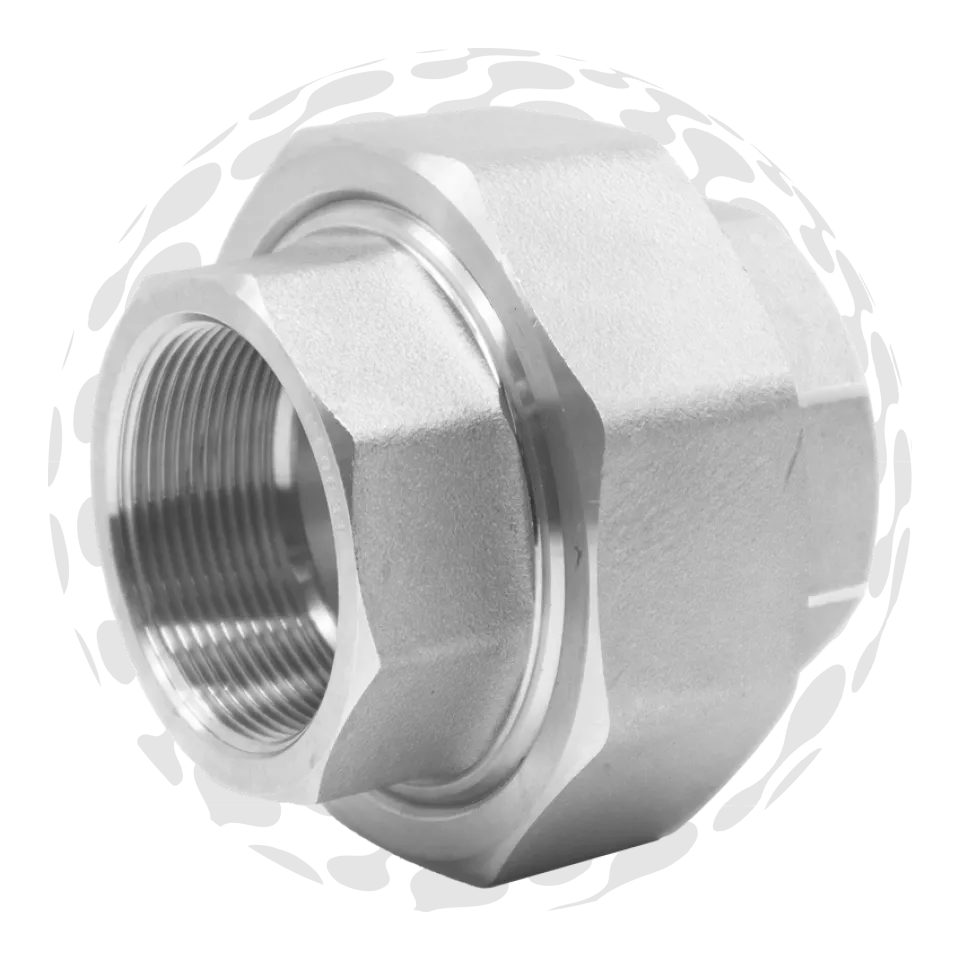

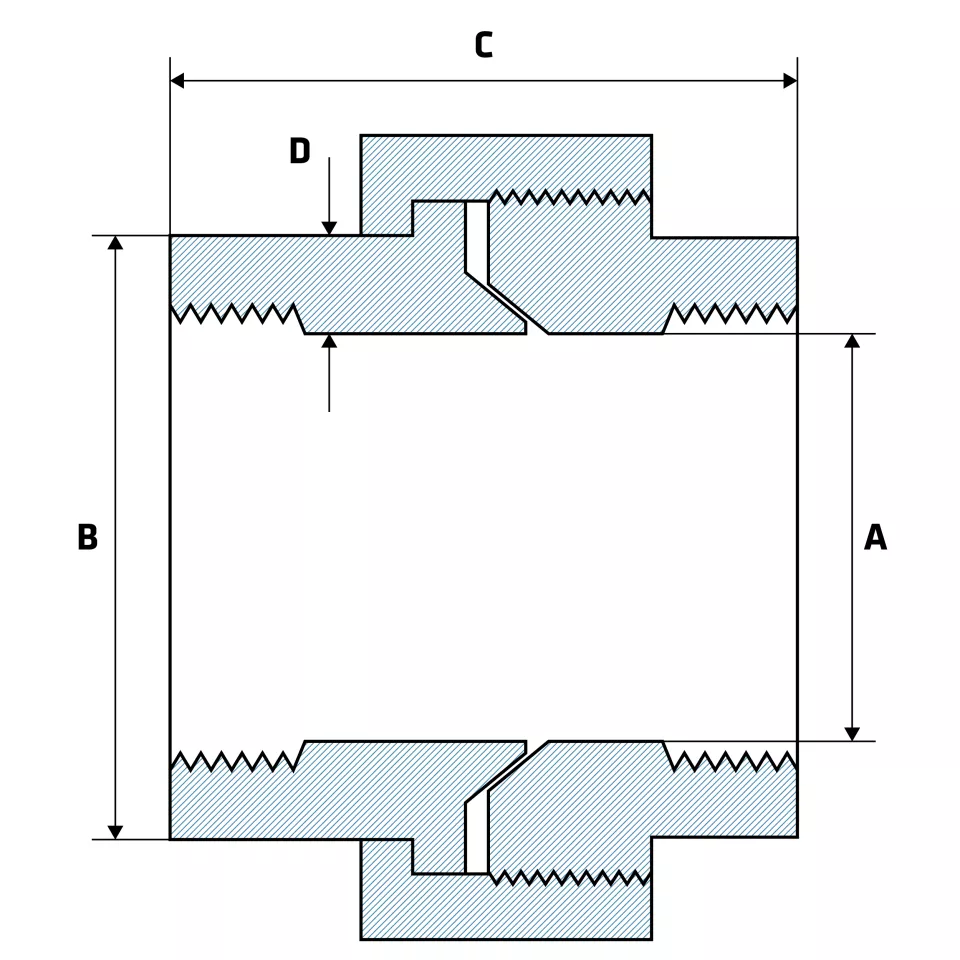

3000LB BSP Union
3000LB BSP Union
Features
- 3000LB Rated
- MSS-SP-83, ASTM A182
- Any measurements that include a *, are indications that the measurement is a 'minimum measurement' as per their Manufacturing Standard.
BSP Adapters
-

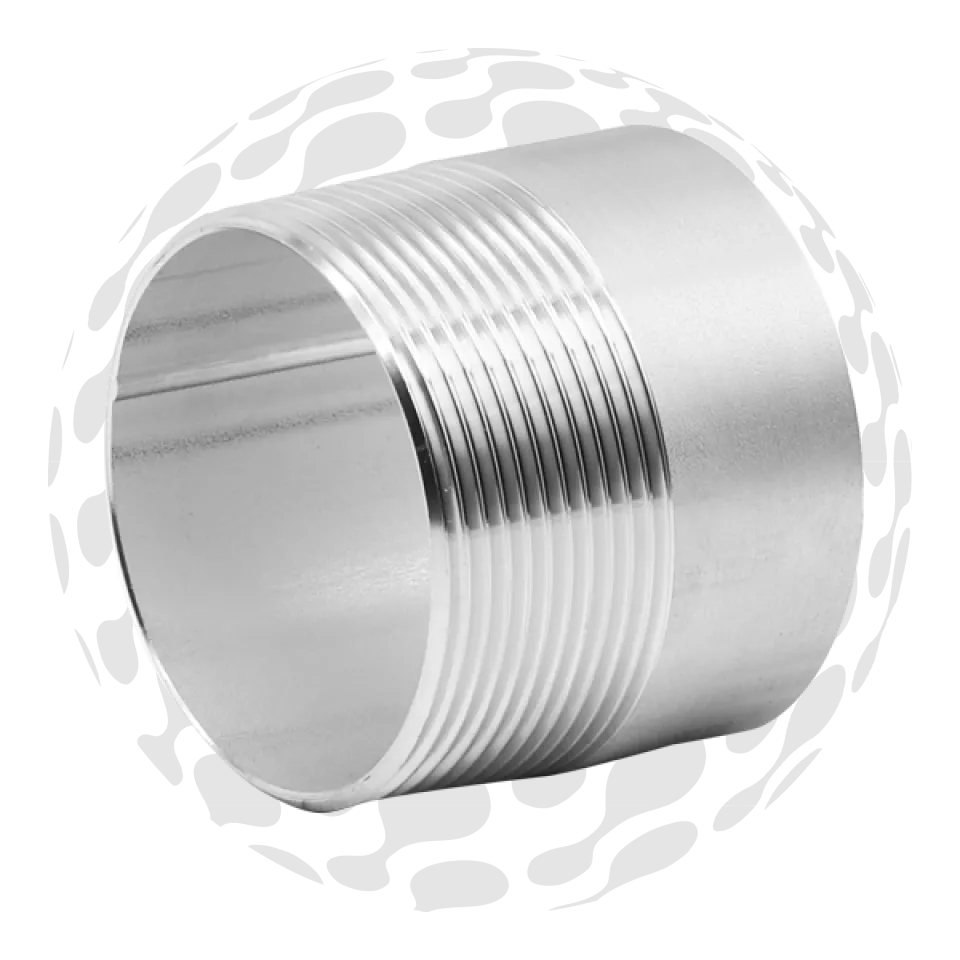

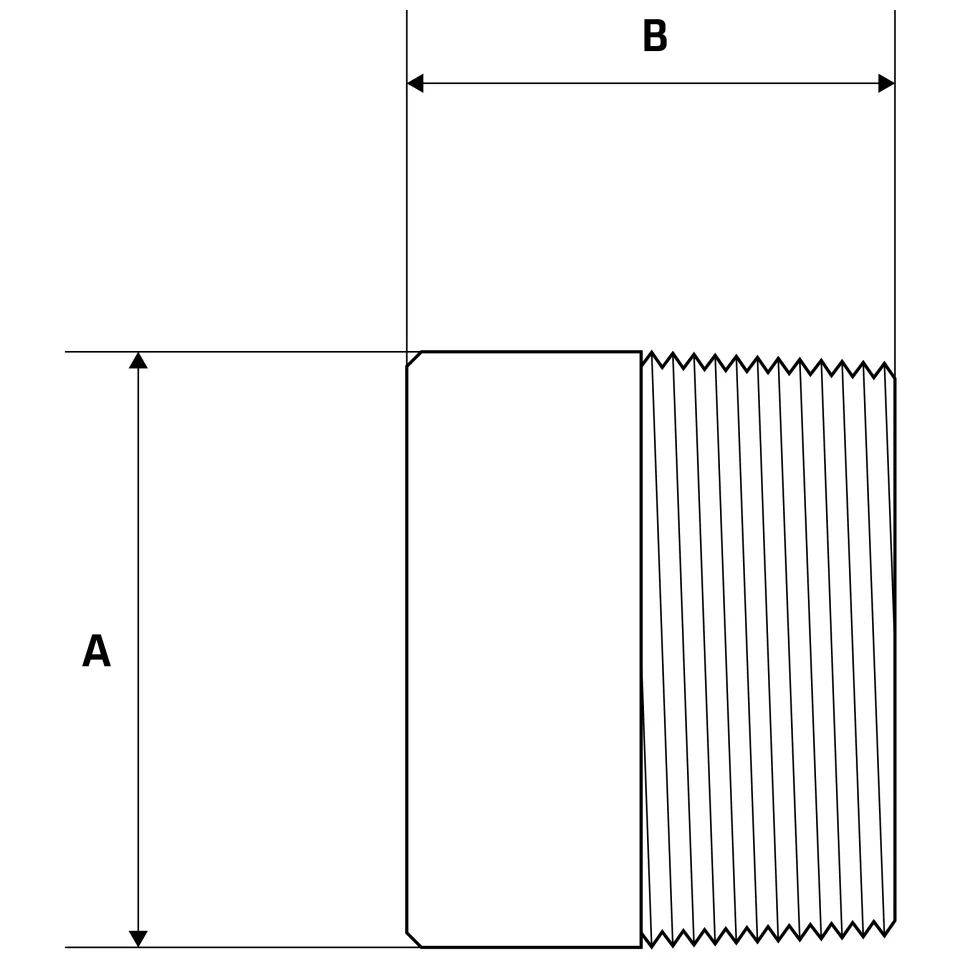

BSP Weld Nipple Adapter
BSP Weld Nipple Adapter
Features
- BSP Threaded End
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Butt Welds To Outside Diameter Tube Sizes
- BSP thread conforms with ISO 7-1/ISO 228-1
- Male Threads are Tapered (BSPT)
- Flat Spot For Ease Of Tightening
-
BSP Nipple to RJT Male Adapter
BSP Nipple to RJT Male Adapter
Features
- BSP Threaded End
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Flat Spot For Ease Of Tightening
- BSP thread conforms with ISO 7-1/ISO 228-1
- Male Threads are Tapered (BSPT)
-
BSP Nipple to RJT Female Adapter
BSP Nipple to RJT Female Adapter
Features
- BSP Threaded End
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Flat Spot For Ease Of Tightening
- BSP thread conforms with ISO 7-1/ISO 228-1
- Male Threads are Tapered (BSPT)
- Comes Standard With Hex Nut
- Hex Nut is 304 grade
-
BSP Nipple to Tri Clover Adapter
BSP Nipple to Tri Clover Adapter
Features
- BSP Threaded End - BSP Male
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Flat Spot For Ease Of Tightening
- BSP thread conforms with ISO 7-1/ISO 228-1
- Male Threads are Tapered (BSPT)
-
BSP Weld Socket Adapter
BSP Weld Socket Adapter
Features
- BSP Threaded End
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Butt Welds To Outside Diameter Tube Sizes
- BSP thread conforms with ISO 7-1/ISO 228-1
- Female Threads are Parallel (BSPP)
- Flat Spots For Ease Of Tightening
-
BSP Socket to RJT Male Adapter
BSP Socket to RJT Male Adapter
Features
- No Need For Welding! Save Time And Effort With One-Piece Adapters
- BSP Threaded Socket
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Flat Spots For Ease Of Tightening
- BSP thread conforms with ISO 7-1/ISO 228-1
- Female Threads are Parallel (BSPP)
-
BSP Socket to Tri Clover Adapter
BSP Socket to Tri Clover Adapter
Features
- BSP Threaded End - BSP Female
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Flat Spot For Ease Of Tightening
- BSP thread conforms with ISO 7-1/ISO 228-1
- Female Threads are Parallel (BSPP)
Bushes & Reducers
-

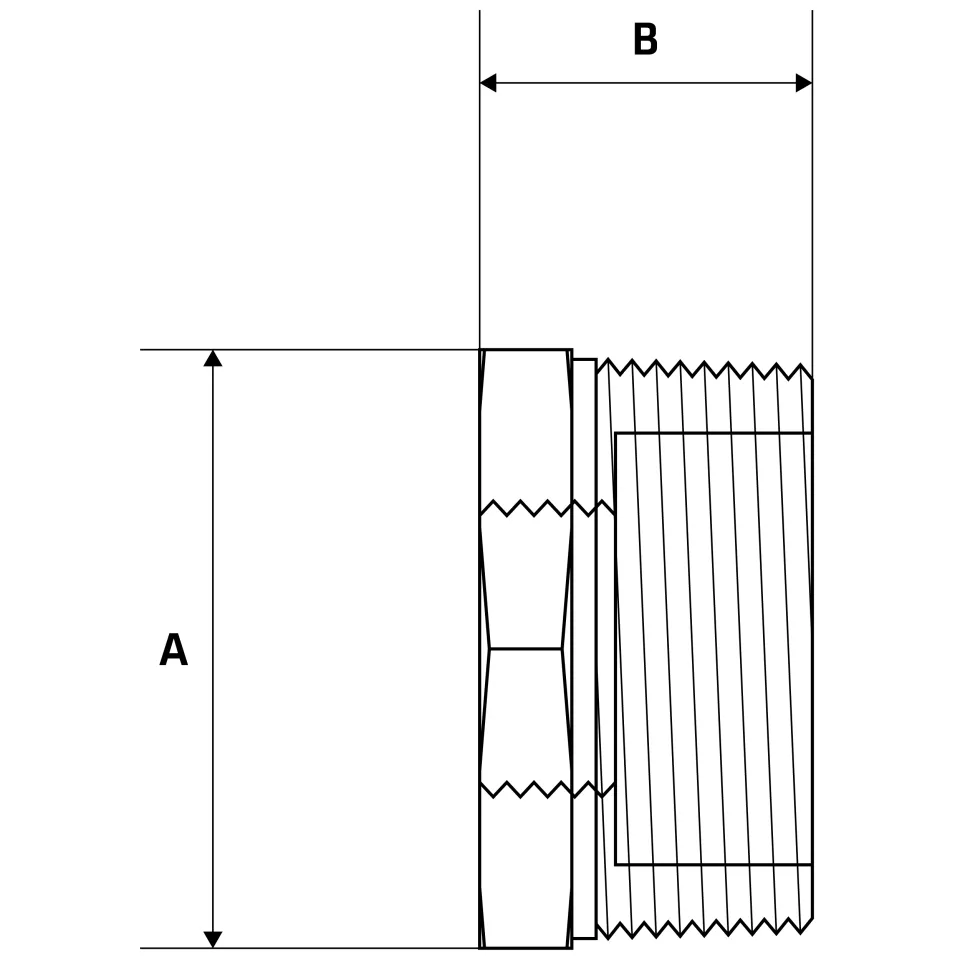

BSP Hex Bush
BSP Hex Bush
Features
- BSP Threaded Ends
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Investment lost wax casting manufactured to ISO 9001 : 2015
- BSP thread conforms with ISO 7-1/ISO 228-1
- Male Threads are Tapered (BSPT), Female Threads are Parallel (BSPP)
- Mill Test Certificates (EN10201 Type 2.2) available with all sizes
-

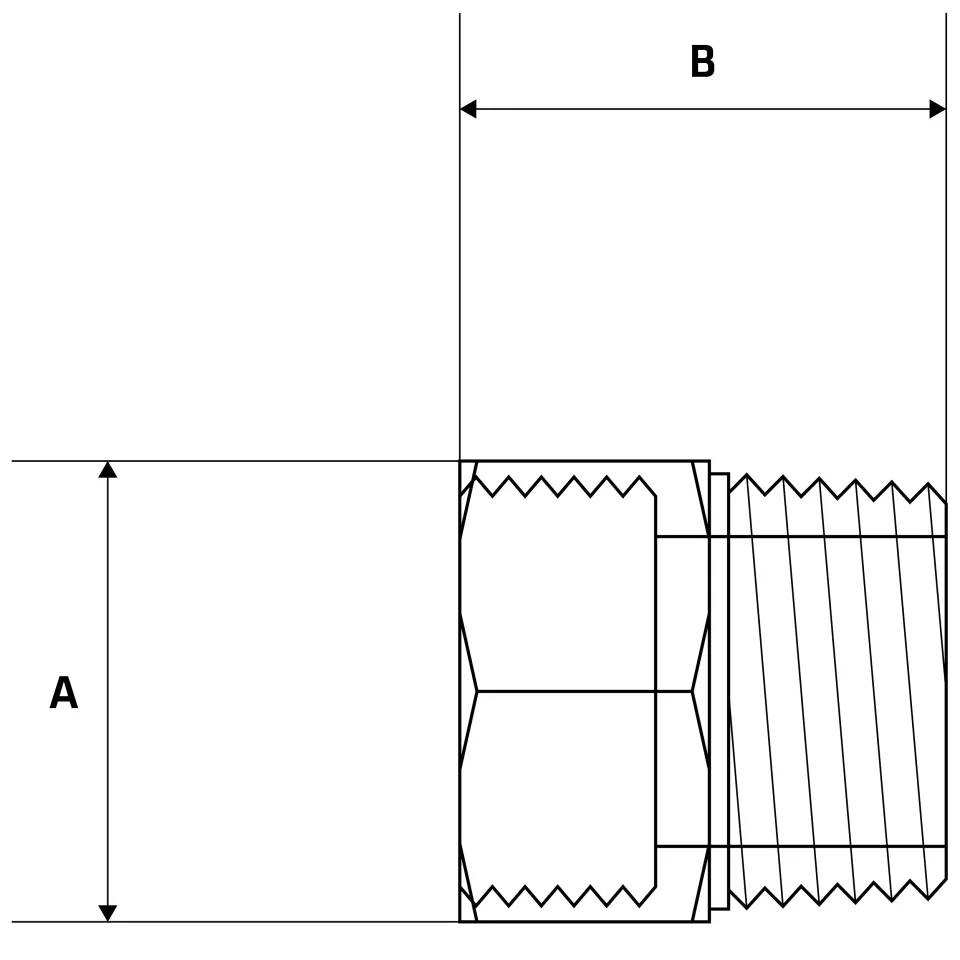

BSP Extension Socket
BSP Extension Socket
Features
- BSP Threaded Ends
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Investment lost wax casting manufactured to ISO 9001 : 2008
- BSP thread conforms with ISO 7-1/ISO 228-1
- Male Threads are Tapered (BSPT), Female Threads are Parallel (BSPP)
- Mill Test Certificates (EN10201 Type 2.2) available with all sizes
-

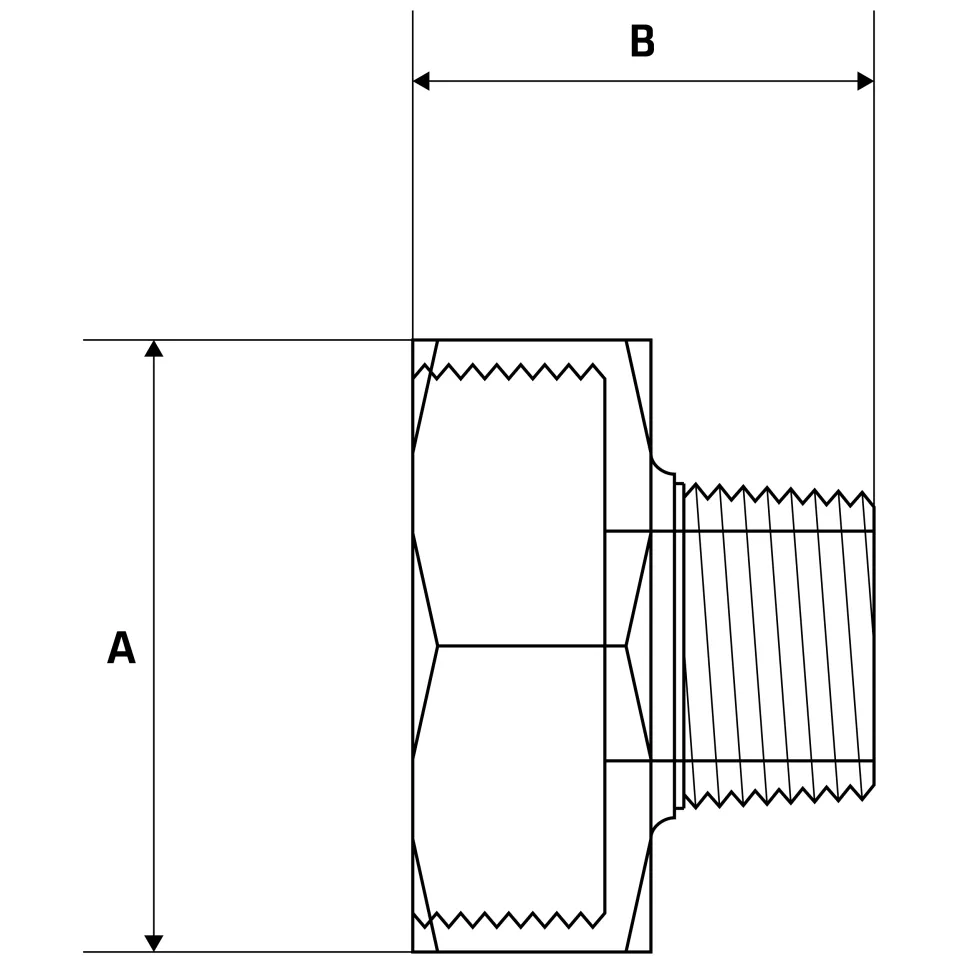

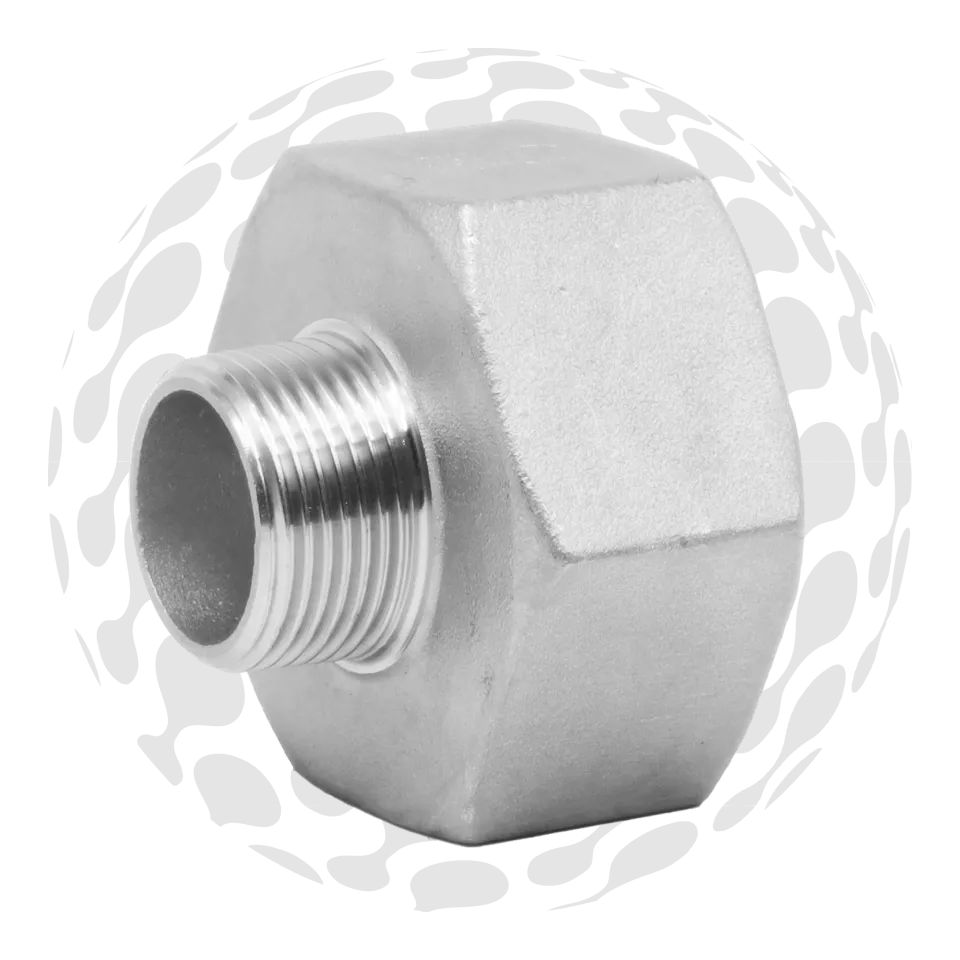

BSP Negative Bush
BSP Negative Bush
Features
- BSP Threaded Ends
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Investment lost wax casting manufactured to ISO 9001 : 2015
- BSP thread conforms with ISO 7-1/ISO 228-1
- Male Threads are Tapered (BSPT), Female Threads are Parallel (BSPP)
- Mill Test Certificates (EN10201 Type 2.2) available with all sizes
-

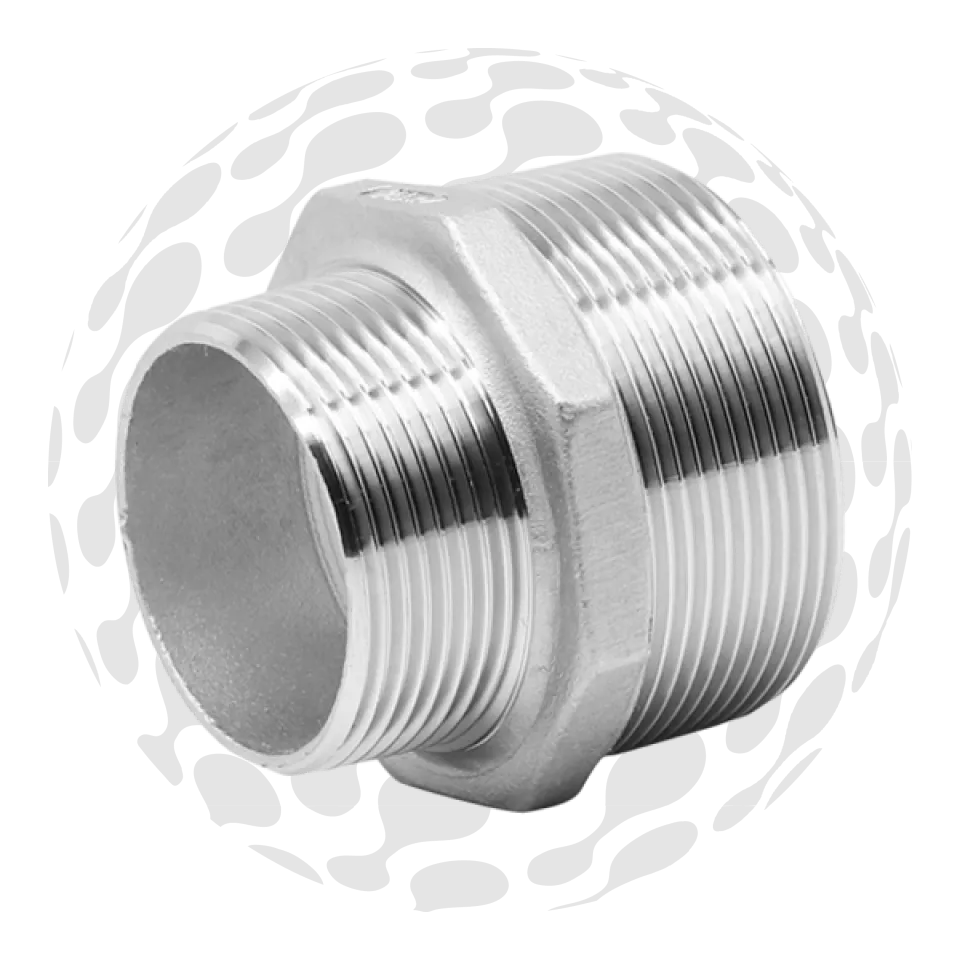

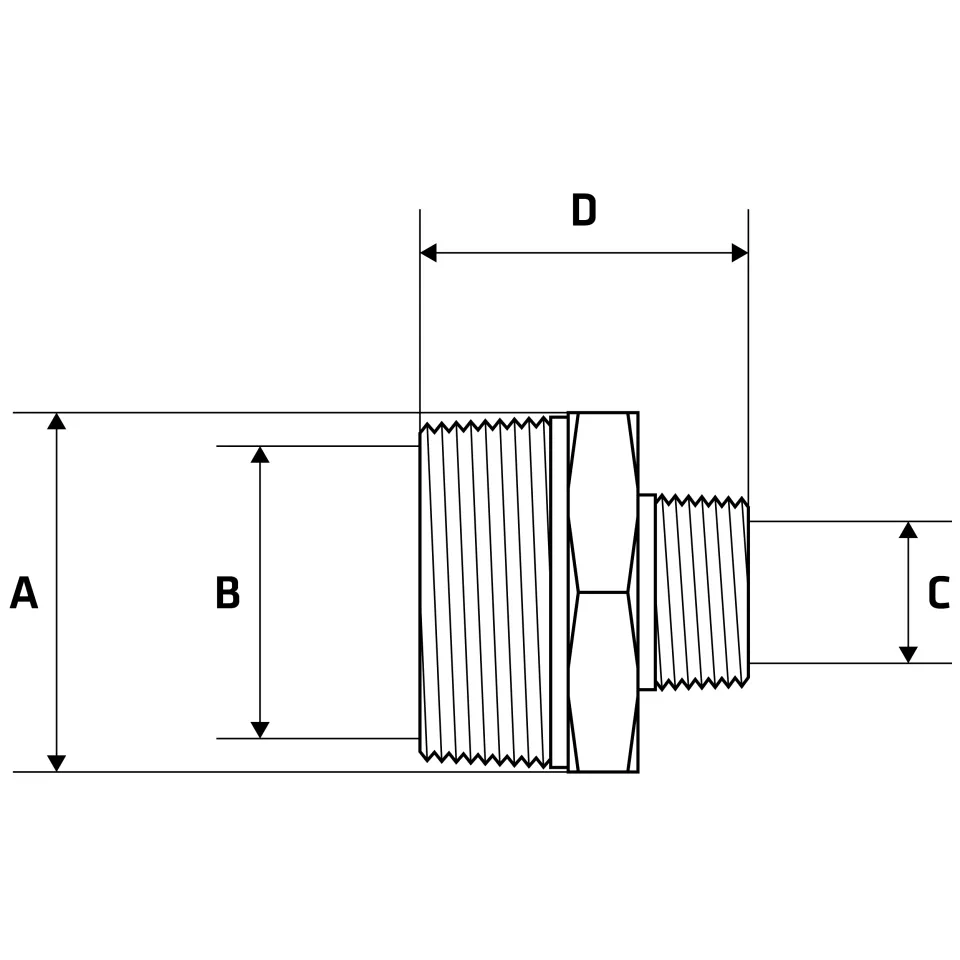

BSP Hex Reducing Nipple
BSP Hex Reducing Nipple
Features
- BSP Threaded Ends
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Investment lost wax casting manufactured to ISO 9001 : 2015
- BSP thread conforms with ISO 7-1/ISO 228-1
- Male Threads are Tapered (BSPT)
- Mill Test Certificates (EN10201 Type 2.2) available with all sizes
-
BSP Reducing Socket
BSP Reducing Socket
Features
- BSP Threaded Ends
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Investment lost wax casting manufactured to ISO 9001 : 2015
- BSP thread conforms with ISO 7-1/ISO 228-1
- Female Threads are Parallel (BSPP)
- Mill Test Certificates (EN10201 Type 2.2) available with all sizes
Elbows
-

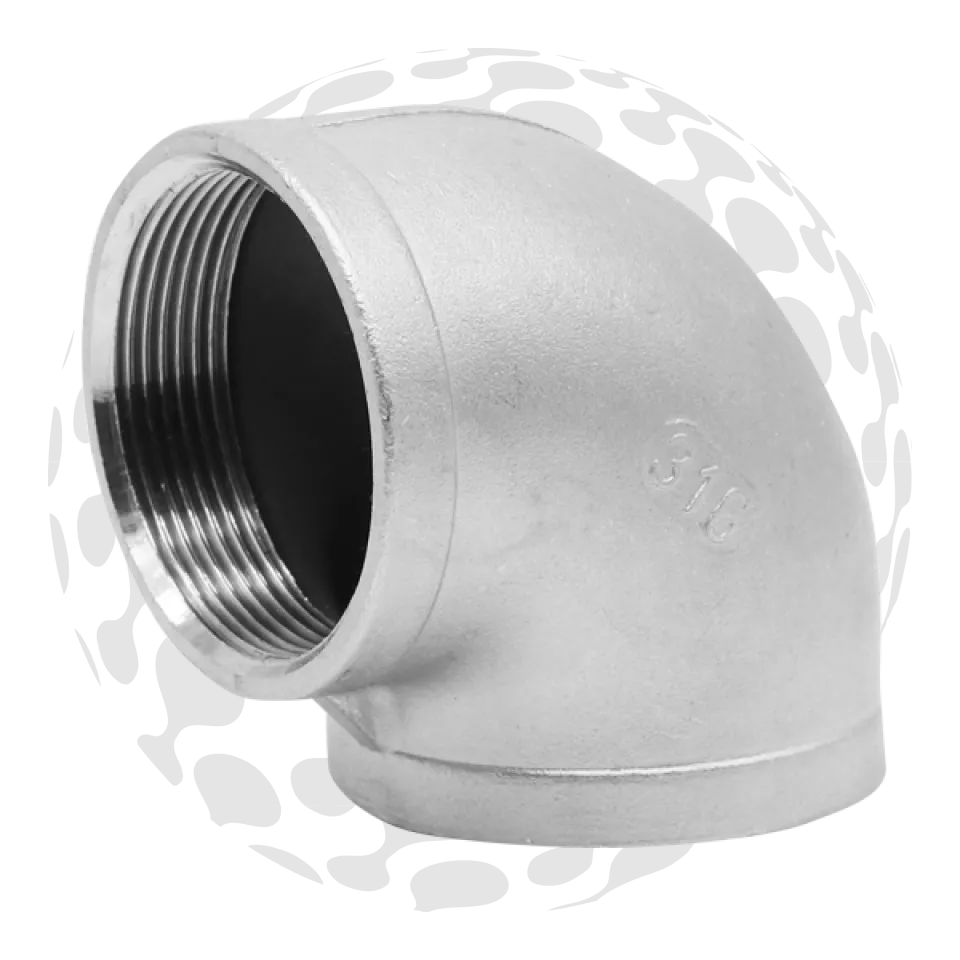

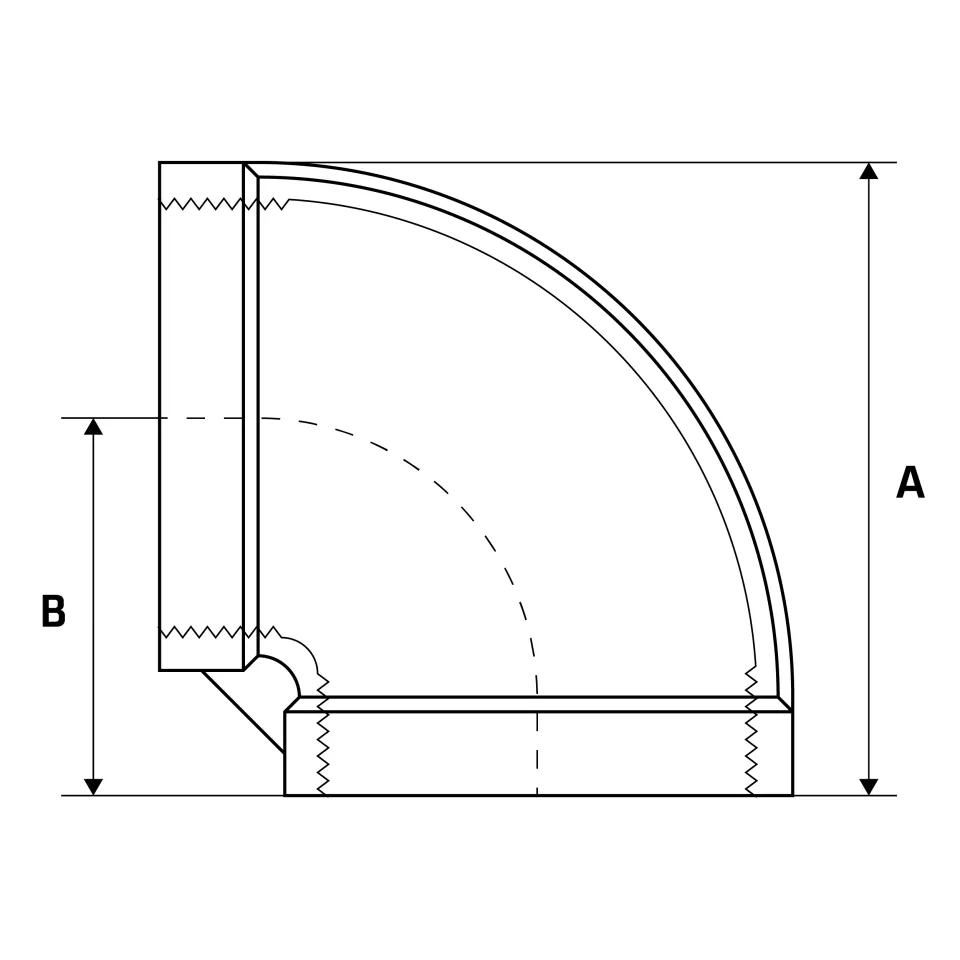

BSP Female Elbow 90°
BSP Female Elbow 90°
Features
- Female BSP threaded ends (parallel), which conforms with ISO 7-1/ISO 228-1
- Investment lost wax casting manufactured to ISO 9001
- Working Pressure: 10.3 bar (150.0 PSI)
- Working Temperature: 250°C at 10.3 bar (150.0 PSI)
- Bursting Pressure: Unavailable
- Mill Test Certifications available for all sizes (EN 10201 Type 2.2)
-

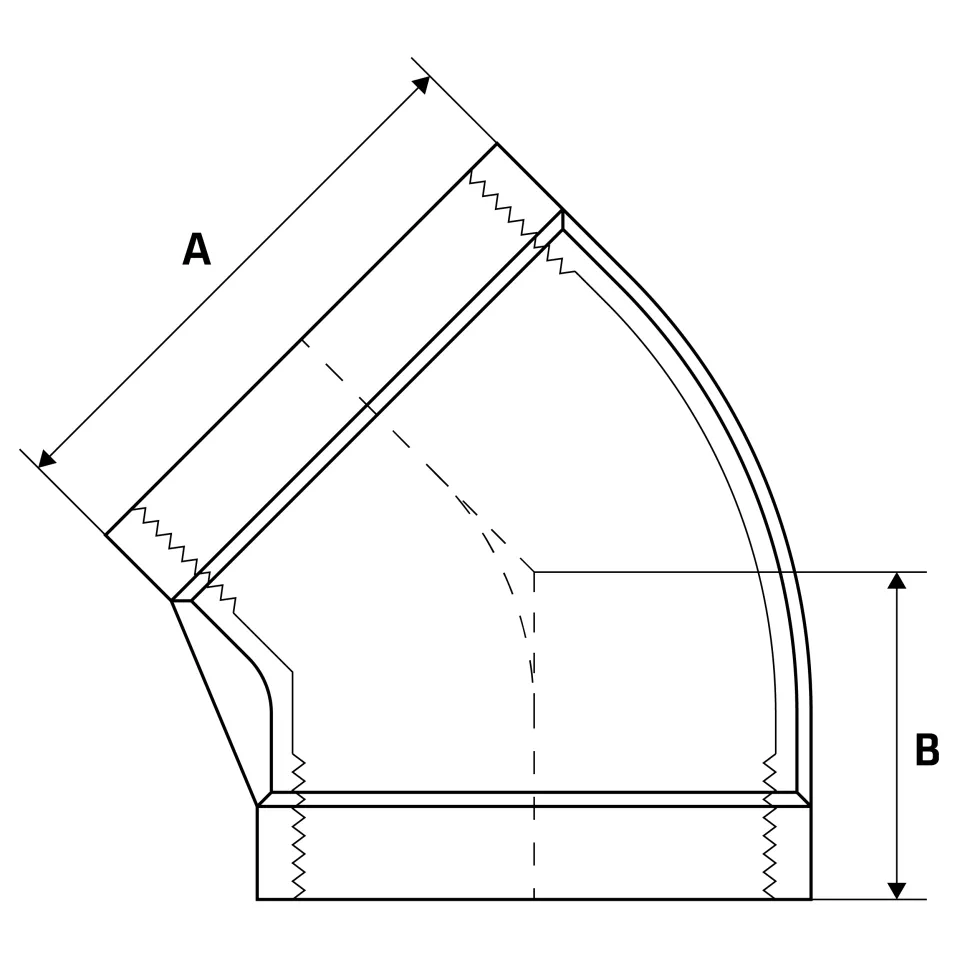

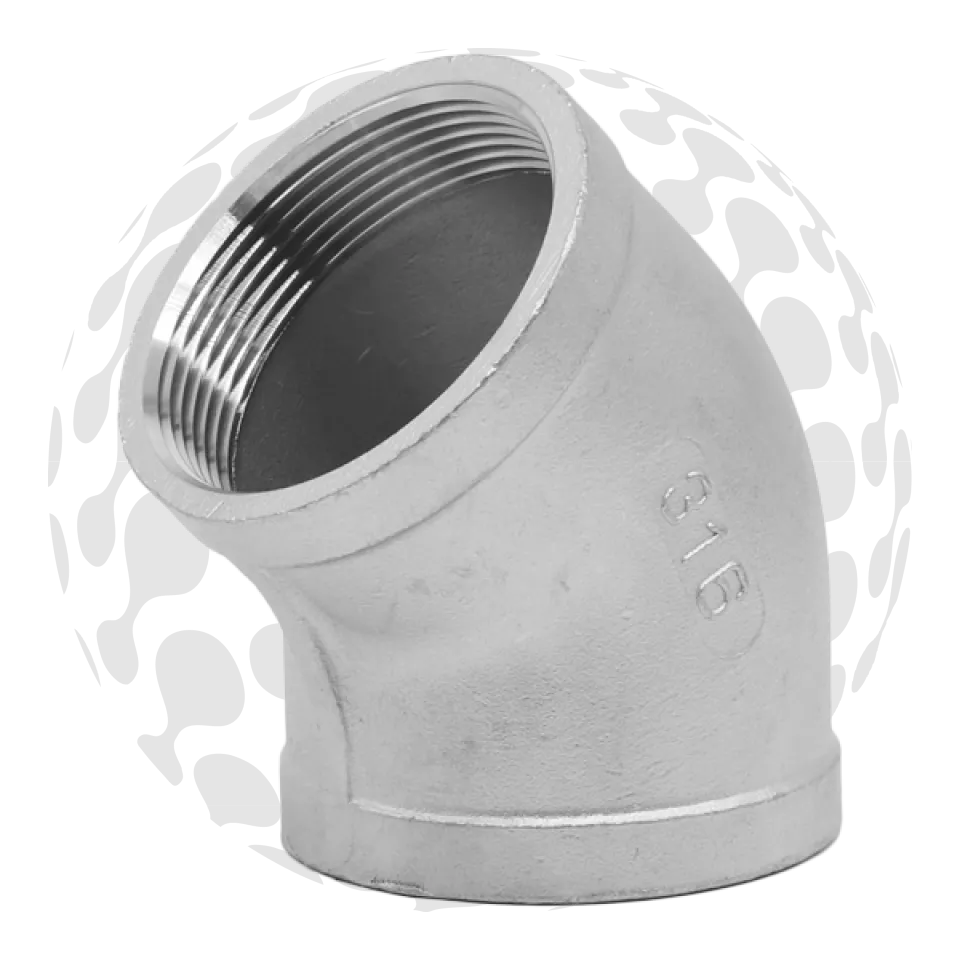

BSP Female Elbow 45°
BSP Female Elbow 45°
Features
- Female BSP threaded ends (parallel), which conforms with ISO 7-1/ISO 228-1
- Investment lost wax casting manufactured to ISO 9001
- Working Pressure: 10.3 bar (150.0 PSI)
- Working Temperature: 250°C at 10.3 bar (150.0 PSI)
- Bursting Pressure: Unavailable
- Mill Test Certifications available for all sizes (EN 10201 Type 2.2)
-
BSP Male-Female Elbow 90°
BSP Male-Female Elbow 90°
Features
- Also known as a 'Street Elbow'
- Female BSP (parallel) to Male BSP (tapered), which conform with ISO 7-1/ISO 228-1
- Investment lost wax casting manufactured to ISO 9001
- Working Pressure: 10.3 bar (150.0 PSI)
- Working Temperature: 250°C at 10.3 bar (150.0 PSI)
- Bursting Pressure: Unavailable
- Mill Test Certifications available for all sizes (EN 10201 Type 2.2)
-

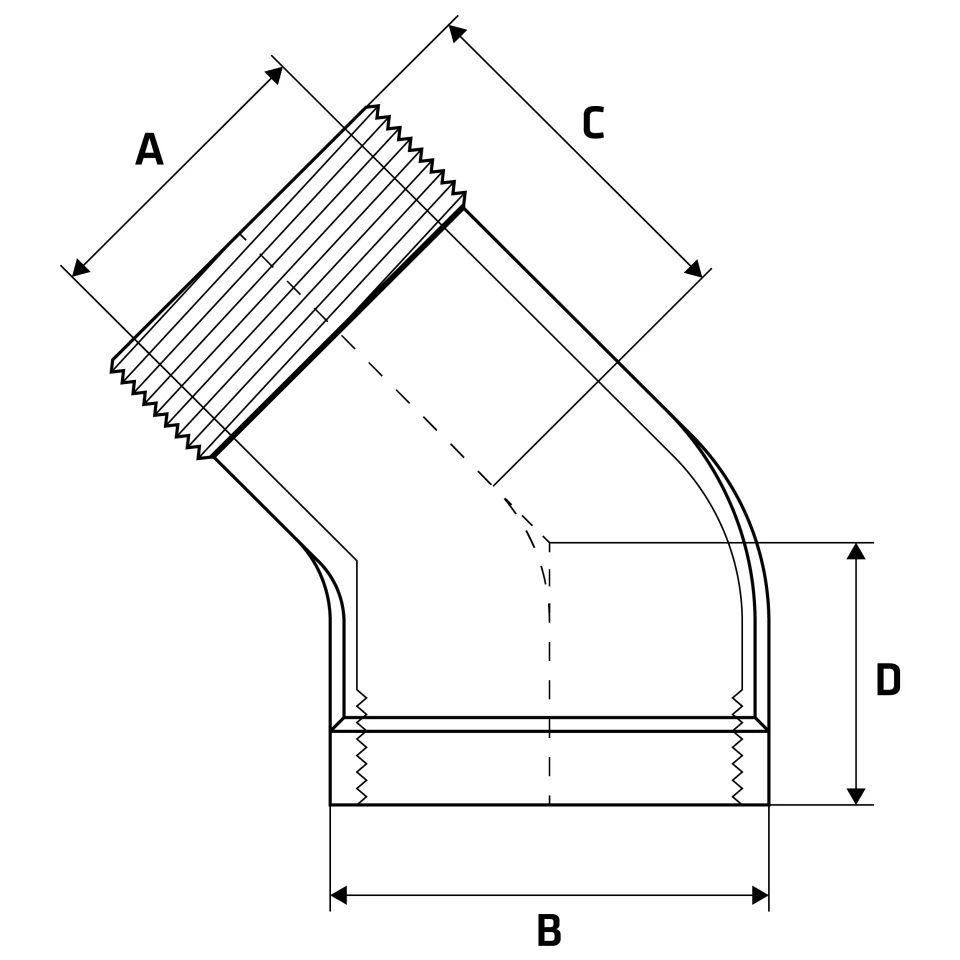

BSP Male-Female Elbow 45°
BSP Male-Female Elbow 45°
Features
- Also known as a 'Street Elbow'
- Female BSP (parallel) to Male BSP (tapered), which conform with ISO 7-1/ISO 228-1
- Investment lost wax casting manufactured to ISO 9001
- Working Pressure: 10.3 bar (150.0 PSI)
- Working Temperature: 250°C at 10.3 bar (150.0 PSI)
- Bursting Pressure: Unavailable
- Mill Test Certifications available for all sizes (EN 10201 Type 2.2)
Hosetails
-

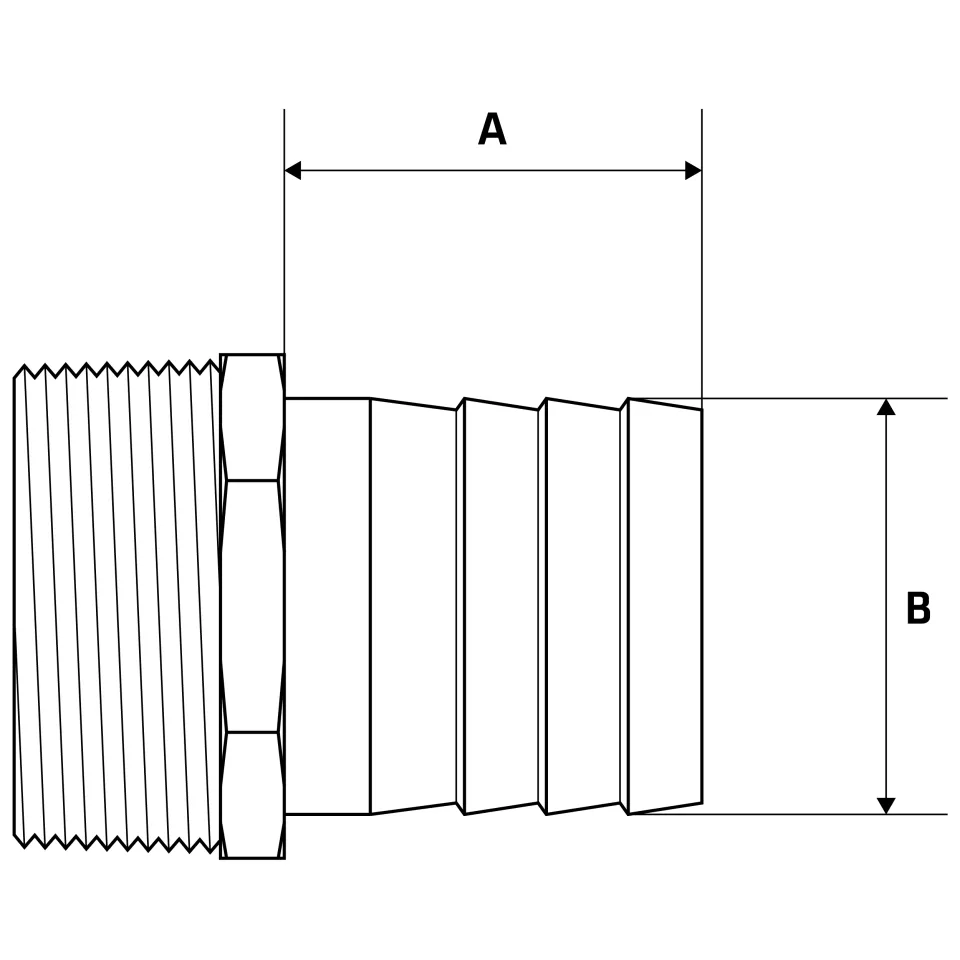

BSP Male Hosetail
BSP Male Hosetail
Features
- BSP Threaded Ends
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Investment lost wax casting manufactured to ISO 9001 : 2015
- BSP thread conforms with ISO 7-1/ISO 228-1
- Male Threads are Tapered (BSPT)
- Mill Test Certificates (EN10201 Type 2.2) available with all sizes
-

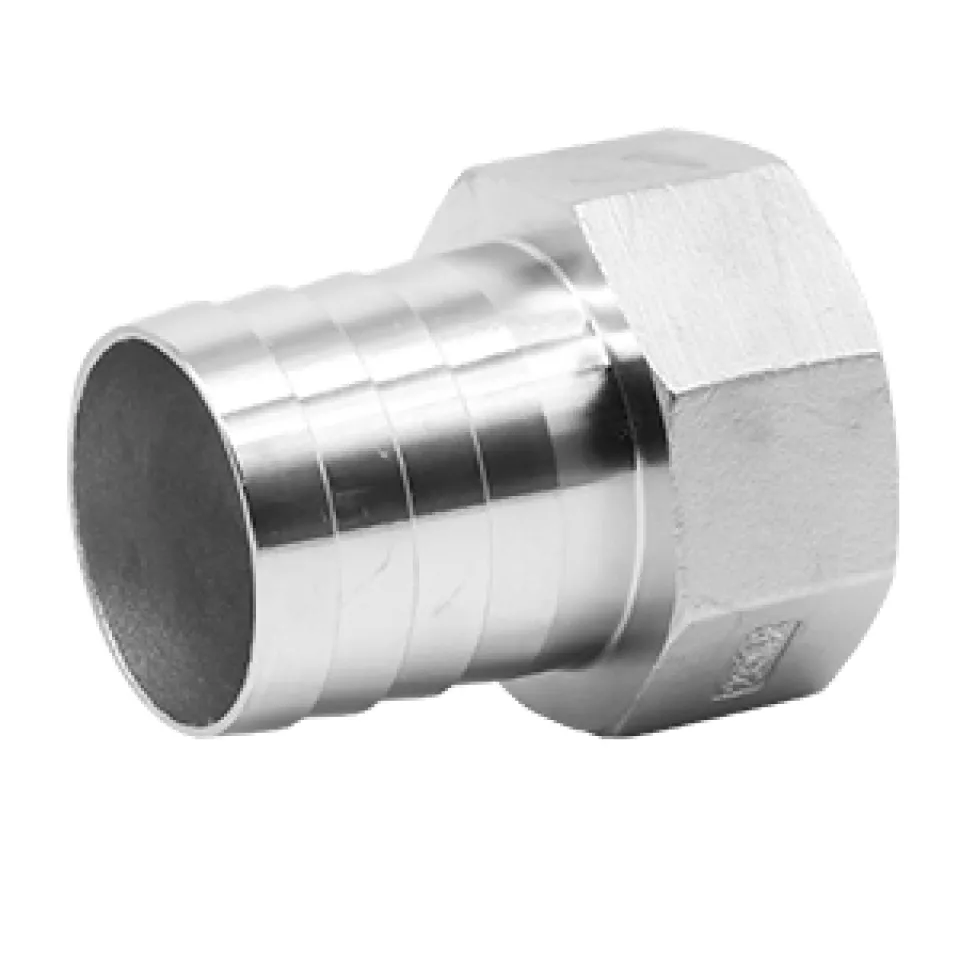

BSP Female Hosetail
BSP Female Hosetail
Features
- BSP Threaded Ends
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Investment lost wax casting manufactured to ISO 9001 : 2015
- BSP thread conforms with ISO 7-1/ISO 228-1
- Female Threads are Parallel (BSPP)
- Mill Test Certificates (EN10201 Type 2.2) available with all sizes
Mac Unions
-
BSP Conical Face Mac Union
BSP Conical Face Mac Union
Features
- BSP Threaded Ends
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Investment lost wax casting manufactured to ISO 9001 : 2015
- BSP thread conforms with ISO 7-1/ISO 228-1
- Female Threads are Parallel (BSPP)
- Mill Test Certificates (EN10201 Type 2.2) available with all sizes
- Conical Faced Union
-
BSP Flat Face Mac Union
BSP Flat Face Mac Union
Features
- BSP Threaded Ends
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Investment lost wax casting manufactured to ISO 9001 : 2015
- BSP thread conforms with ISO 7-1/ISO 228-1
- Female Threads are Parallel (BSPP)
- Mill Test Certificates (EN10201 Type 2.2) available with all sizes
- Flat Faced Union
- EPDM Gasket Included, But Can Be Sold Separately.
- Please Note, we are changing the gasket to an O-Ring as our new orders arrive. Some existing stock will still have flat section gasket.
Nipples
-
BSP Weld Nipple
BSP Weld Nipple
Features
- BSP Threaded Ends
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Investment lost wax casting manufactured to ISO 9001 : 2015
- BSP thread conforms with ISO 7-1/ISO 228-1
- Male Threads are Tapered (BSPT)
- Mill Test Certificates (EN10201 Type 2.2) available with all sizes
- Butt Welds To Nominal Bore Pipe Sizes
- View Extended Weld Nipples for more length options.
-

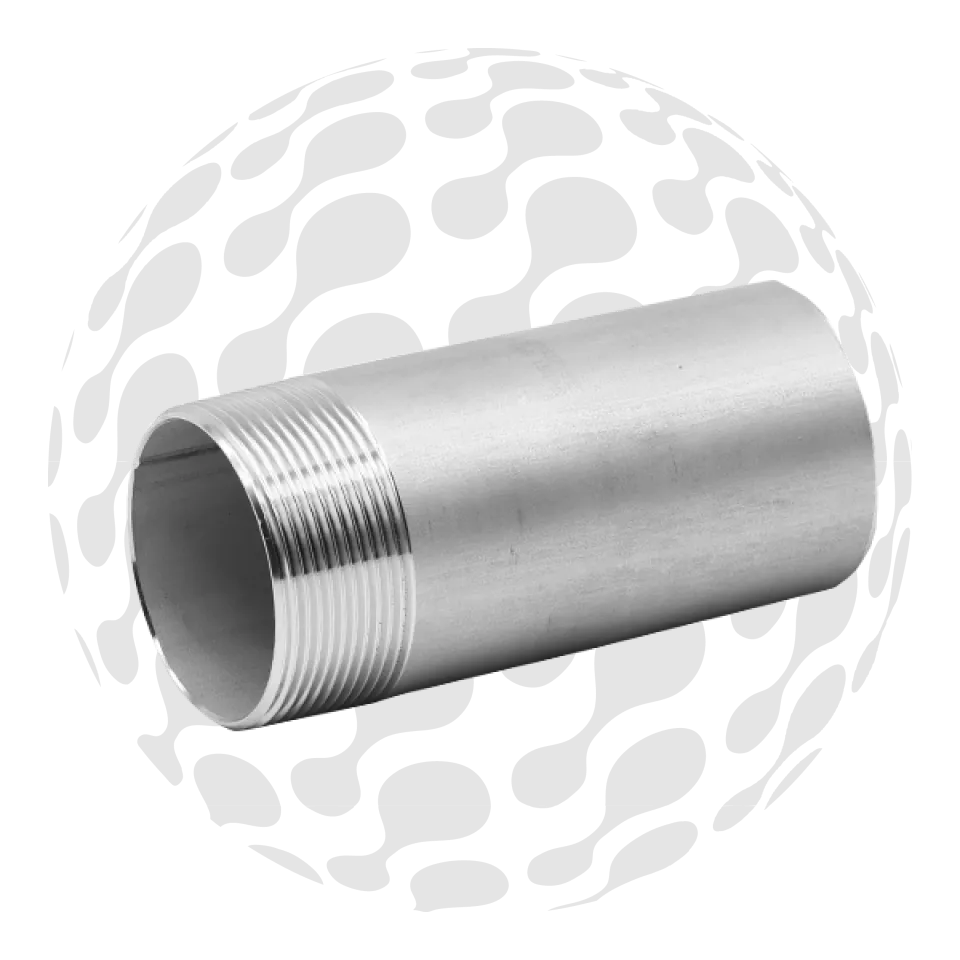

BSP Extended Weld Nipple
BSP Extended Weld Nipple
Features
- BSP Threaded Ends
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Investment lost wax casting manufactured to ISO 9001 : 2015
- BSP thread conforms with ISO 7-1/ISO 228-1
- Male Threads are Tapered (BSPT)
- Mill Test Certificates (EN10201 Type 2.2) available with all sizes
- Butt Welds To Nominal Bore Pipe Sizes
-

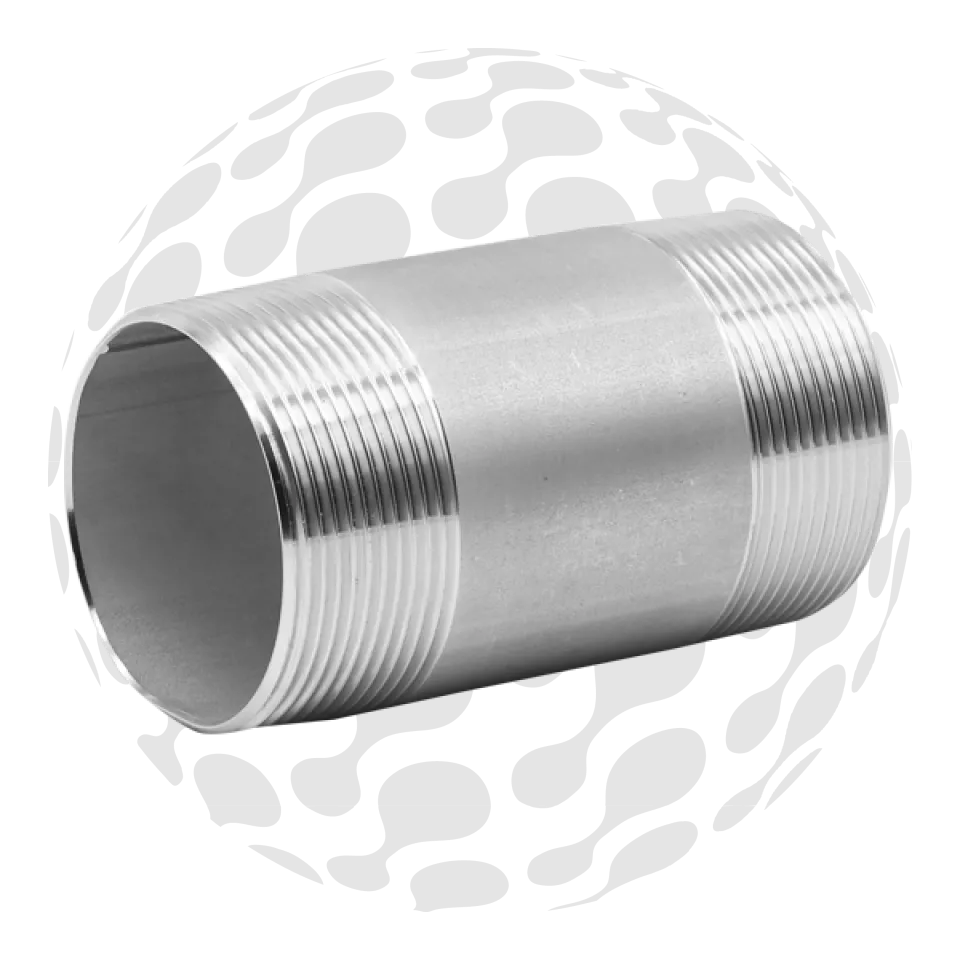

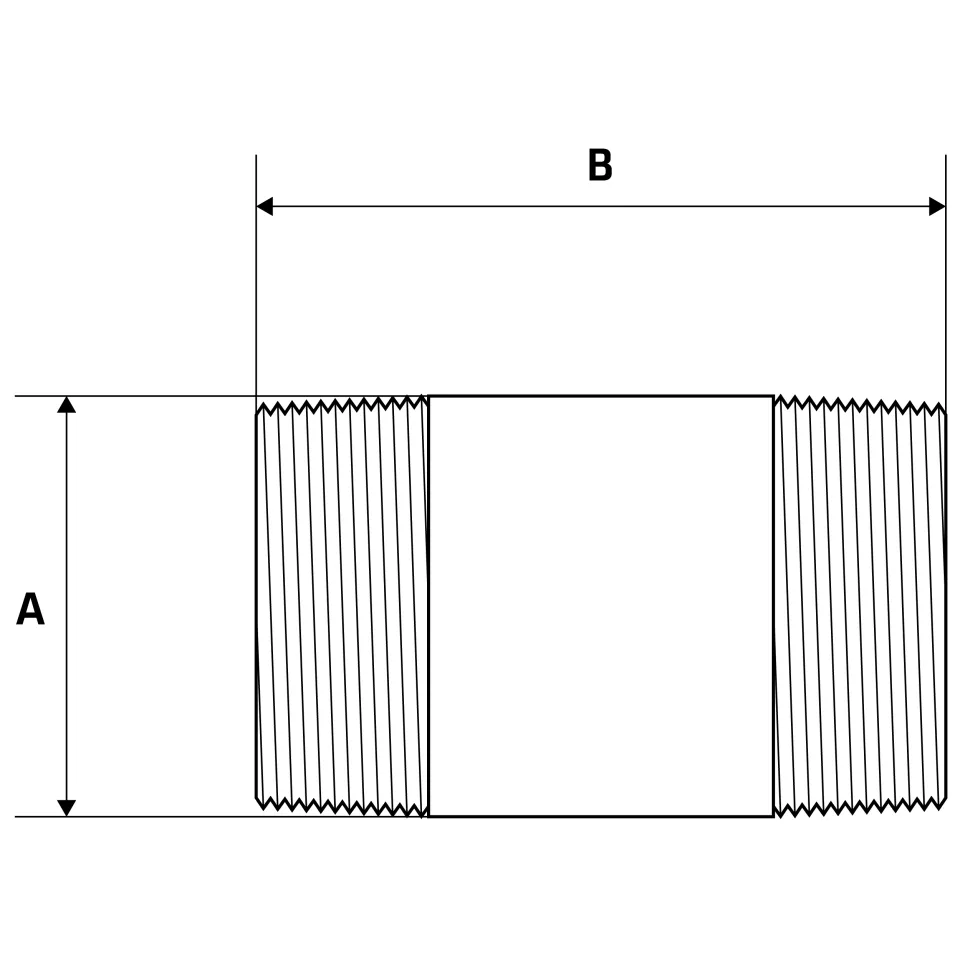

BSP Barrel Nipple
BSP Barrel Nipple
Features
- BSP Threaded Ends
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Investment lost wax casting manufactured to ISO 9001 : 2015
- BSP thread conforms with ISO 7-1/ISO 228-1
- Male Threads are Tapered (BSPT)
- Mill Test Certificates (EN10201 Type 2.2) available with all sizes
- View Extended Barrel Nipples for more length options.
-

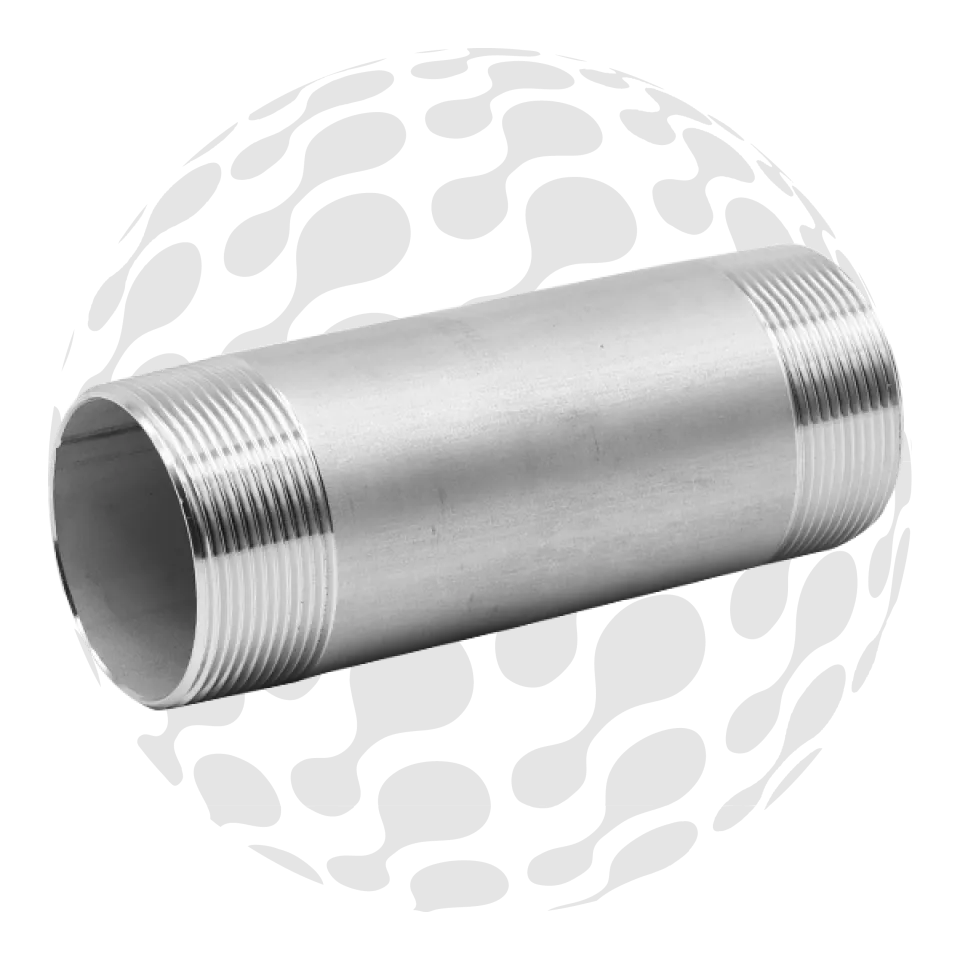

BSP Extended Barrel Nipple
BSP Extended Barrel Nipple
Features
- BSP Threaded Ends
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Investment lost wax casting manufactured to ISO 9001 : 2015
- BSP thread conforms with ISO 7-1/ISO 228-1
- Male Threads are Tapered (BSPT)
- Mill Test Certificates (EN10201 Type 2.2) available with all sizes
- Custom Made Lengths also Available To Suit Your needs. Enquire with our team.
-

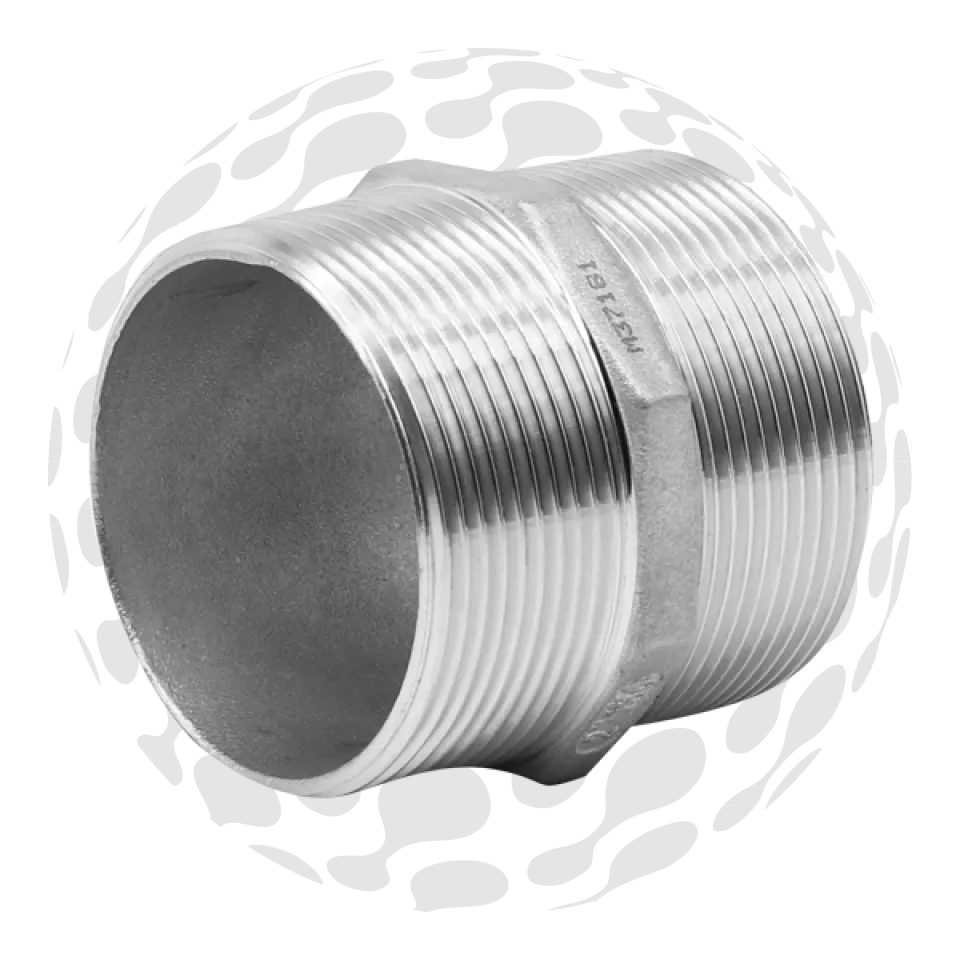

BSP Hex Nipple
BSP Hex Nipple
Features
- BSP Threaded Ends
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Investment lost wax casting manufactured to ISO 9001 : 2015
- BSP thread conforms with ISO 7-1/ISO 228-1
- Male Threads are Tapered (BSPT)
- Mill Test Certificates (EN10201 Type 2.2) available with all sizes
-
BSP Hex Reducing Nipple
BSP Hex Reducing Nipple
Features
- BSP Threaded Ends
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Investment lost wax casting manufactured to ISO 9001 : 2015
- BSP thread conforms with ISO 7-1/ISO 228-1
- Male Threads are Tapered (BSPT)
- Mill Test Certificates (EN10201 Type 2.2) available with all sizes
-
BSP Weld Nipple Adapter
BSP Weld Nipple Adapter
Features
- BSP Threaded End
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Butt Welds To Outside Diameter Tube Sizes
- BSP thread conforms with ISO 7-1/ISO 228-1
- Male Threads are Tapered (BSPT)
- Flat Spot For Ease Of Tightening
-
BSP Nipple to RJT Male Adapter
BSP Nipple to RJT Male Adapter
Features
- BSP Threaded End
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Flat Spot For Ease Of Tightening
- BSP thread conforms with ISO 7-1/ISO 228-1
- Male Threads are Tapered (BSPT)
-
BSP Nipple to RJT Female Adapter
BSP Nipple to RJT Female Adapter
Features
- BSP Threaded End
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Flat Spot For Ease Of Tightening
- BSP thread conforms with ISO 7-1/ISO 228-1
- Male Threads are Tapered (BSPT)
- Comes Standard With Hex Nut
- Hex Nut is 304 grade
-
BSP Nipple to Tri Clover Adapter
BSP Nipple to Tri Clover Adapter
Features
- BSP Threaded End - BSP Male
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Flat Spot For Ease Of Tightening
- BSP thread conforms with ISO 7-1/ISO 228-1
- Male Threads are Tapered (BSPT)
NPT-BSP Adapters
-
NPT-BSP Hex Nipple Adapter
NPT-BSP Hex Nipple Adapter
Features
- BSP/NPT Threaded Ends
- 150lbs Pressure Rating
- Threads are Tapered (BSPT/NPT)
- NPT thread conforms with ASME B1.20.1 and the BSP thread conforms with ISO 7-1/ISO 228-1
-
NPT-BSP Socket Adapter
NPT-BSP Socket Adapter
Features
- 150lbs Pressure Rating
- NPT and BSP female threaded ends
- NPT Thread is Tapered, BSP Thread is Parallel
- NPT thread conforms with ASME B1.20.1 and the BSP thread conforms with ISO 7-1/ISO 228-1
Plugs & Caps
-
BSP Hex Plug
BSP Hex Plug
Features
- BSP Threaded Ends
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Investment lost wax casting manufactured to ISO 9001 : 2015
- BSP thread conforms with ISO 7-1/ISO 228-1
- Male Threads are Tapered (BSPT)
- Mill Test Certificates (EN10201 Type 2.2) available with all sizes
- Hollow Centre
-

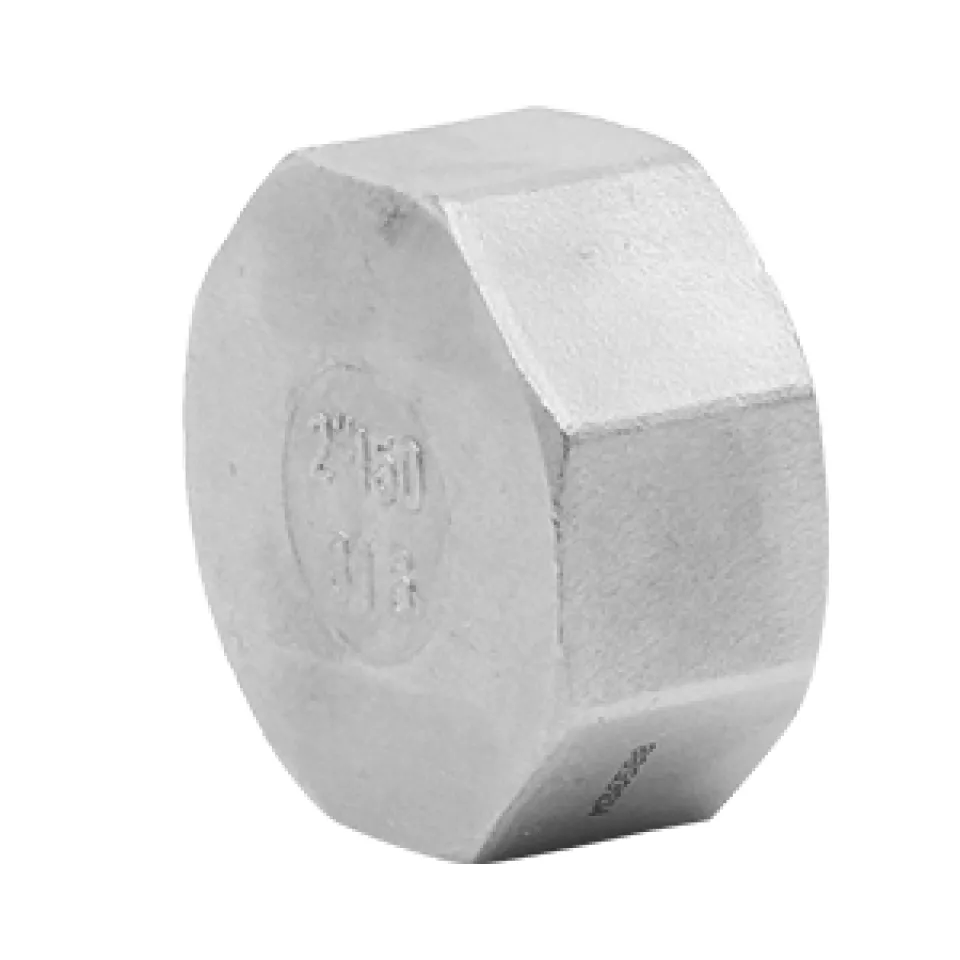

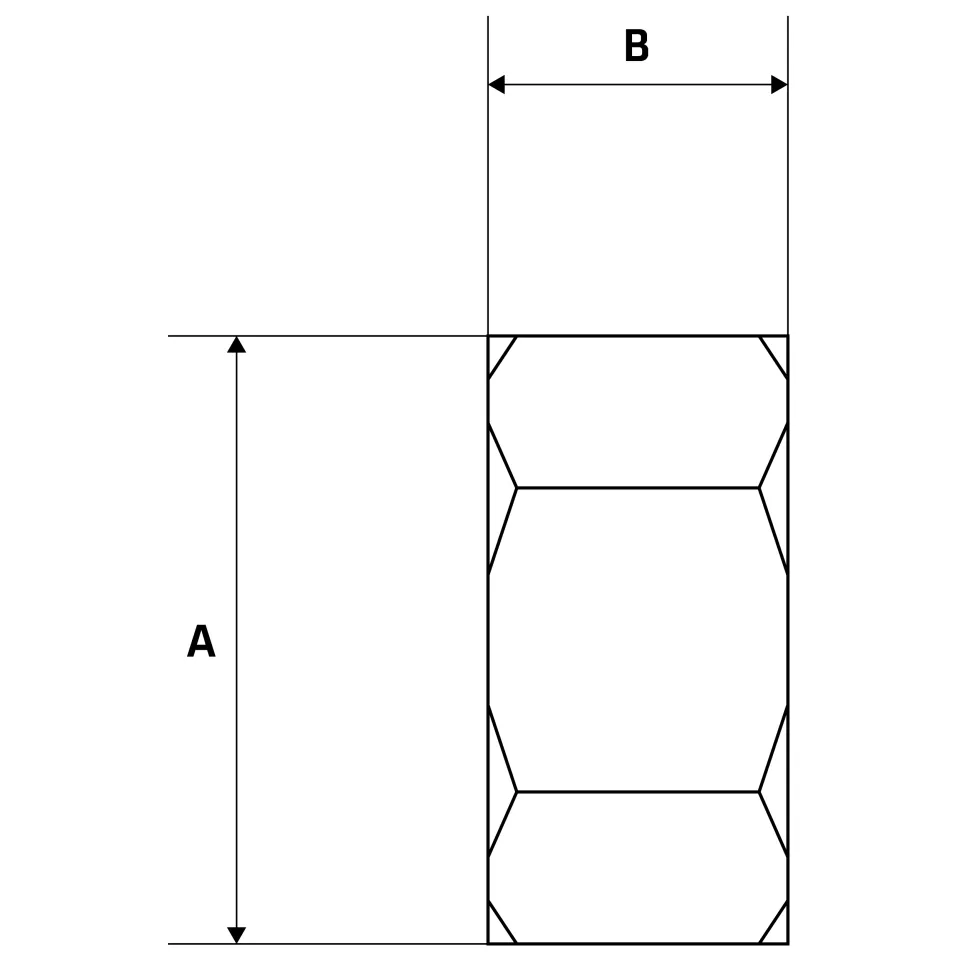

BSP Hex Cap
BSP Hex Cap
Features
- BSP Threaded Ends
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Investment lost wax casting manufactured to ISO 9001 : 2015
- BSP thread conforms with ISO 7-1/ISO 228-1
- Female Threads are Parallel (BSPP)
- Mill Test Certificates (EN10201 Type 2.2) available with all sizes
-

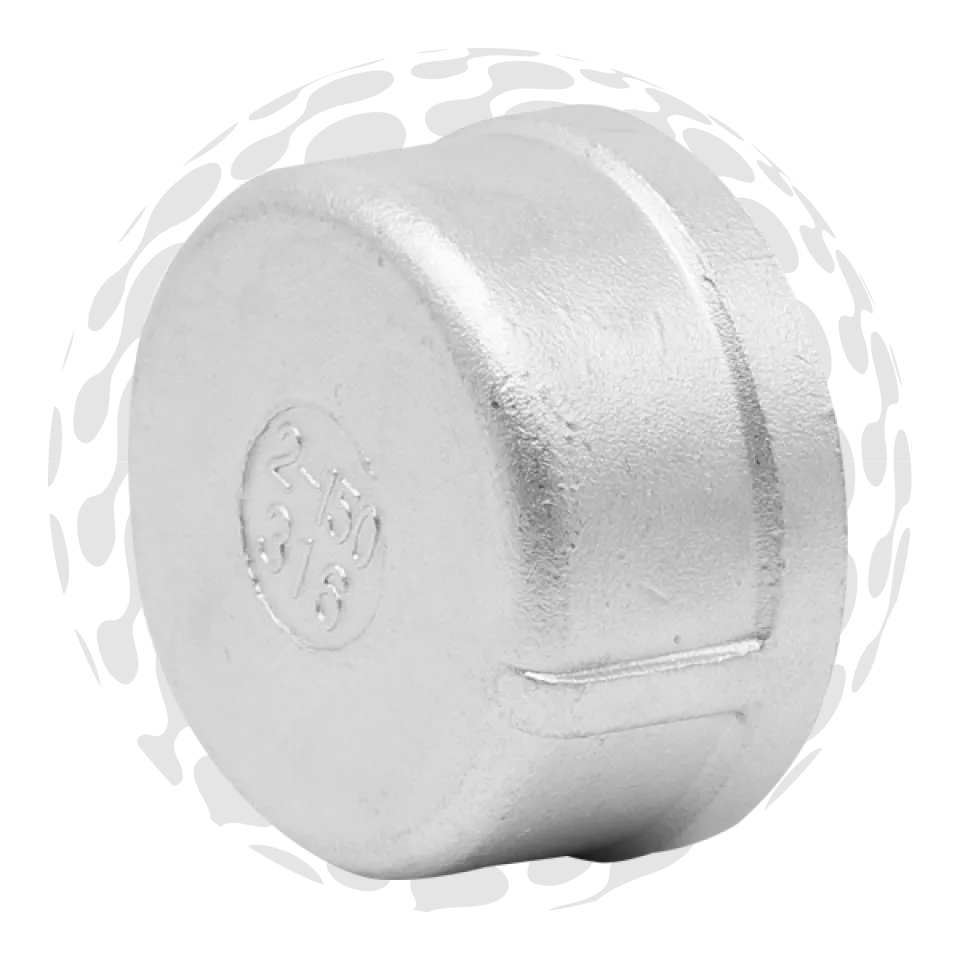

BSP Round Cap
BSP Round Cap
Features
- BSP Threaded Ends
- Working Pressure: 150lbs (psi) / 10bar
- Working Temperature: 250°C at 10bar
- Investment lost wax casting manufactured to ISO 9001 : 2015
- BSP thread conforms with ISO 7-1/ISO 228-1
- Female Threads are Parallel (BSPP)
- Mill Test Certificates (EN10201 Type 2.2) available with all sizes
