Expansion & Vibration
Expansion Bellows
-
Stainless Steel Table D/E Expansion Bellow
Stainless Steel Table D/E Expansion Bellow
Features
- EPDM Expansion Bellow
- Temperature rating from -15°C to 115°C
- Pressure Rating up to 16 Bar (232 psi) ...
- Stainless Steel Flanges
View Dimensions
-
Galvanised Table D/E Expansion Bellow
Galvanised Table D/E Expansion Bellow
Features
- EPDM Expansion Bellow
- Temperature rating from -15°C to 115°C
- Pressure Rating up to 16 Bar (232 psi) ...
- Galvanised Table E Flanges
View Dimensions
RapidPress Press-Fit
-
RapidPress Expansion Compensator
RapidPress Expansion Compensator
Features
- EPDM Seals
- Measurement 'D' = Maximum amount of expansion length
- Temperature rating: -20°C, 120°C ...
- Maximum operating pressure: 16 Bar (232psi)
- Refer to page 35 in our RapidPress Technical Guide for our Expansion Compensation Table
- RapidPress Extreme options available
View Dimensions
FlexiFlow Hoses & Fittings
-
FlexiFlow Hose with Imperial Tube Ends
FlexiFlow Hose with Imperial Tube Ends
Features
- FlexiFlow Stainless Steel Convoluted Braided Hose
- Connections: Imperial Tube Butt Weld Ends
- Temperature Rating: -100˚C to 550˚C ...
- Hose Test Standard: ISO 10380-2012
- Hose Designation: TYPE 1-10
- Click 'View Dimensions' for the following information:
- F = Static/Flexing Minimum Bend Radius (mm)
- G = Working/Test Pressure (bar)
View Dimensions
-

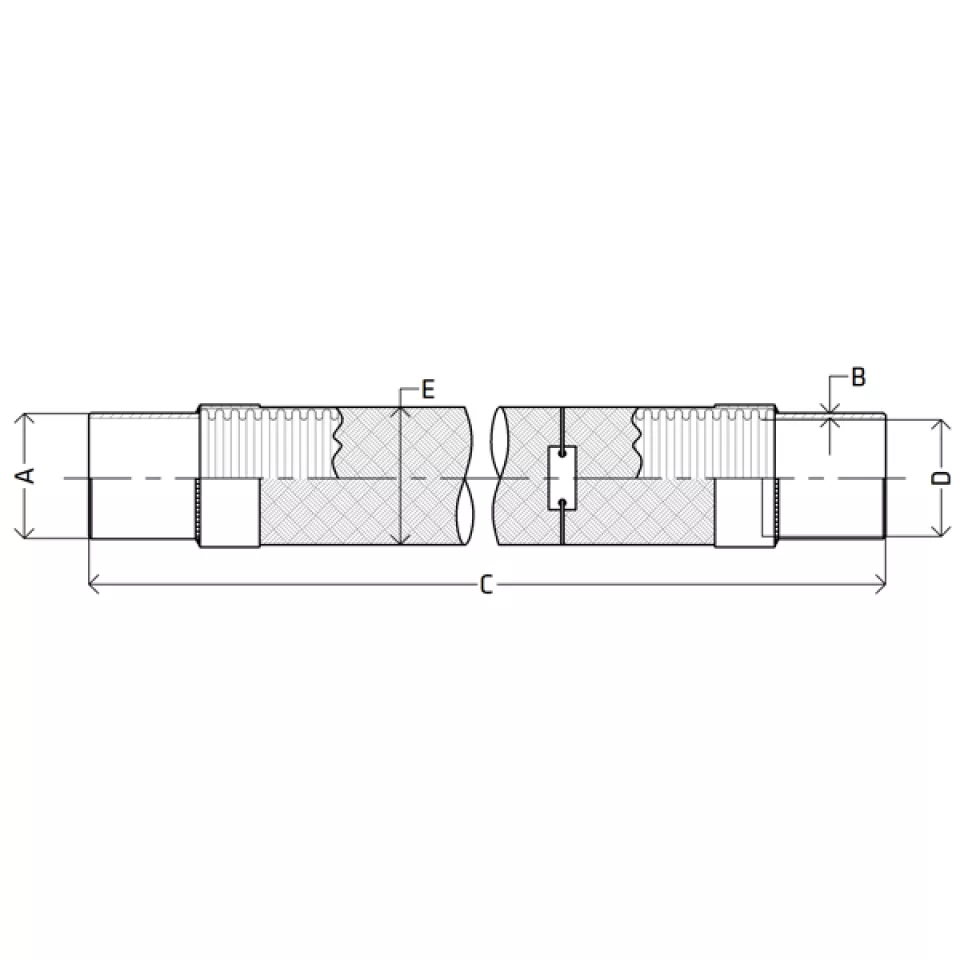

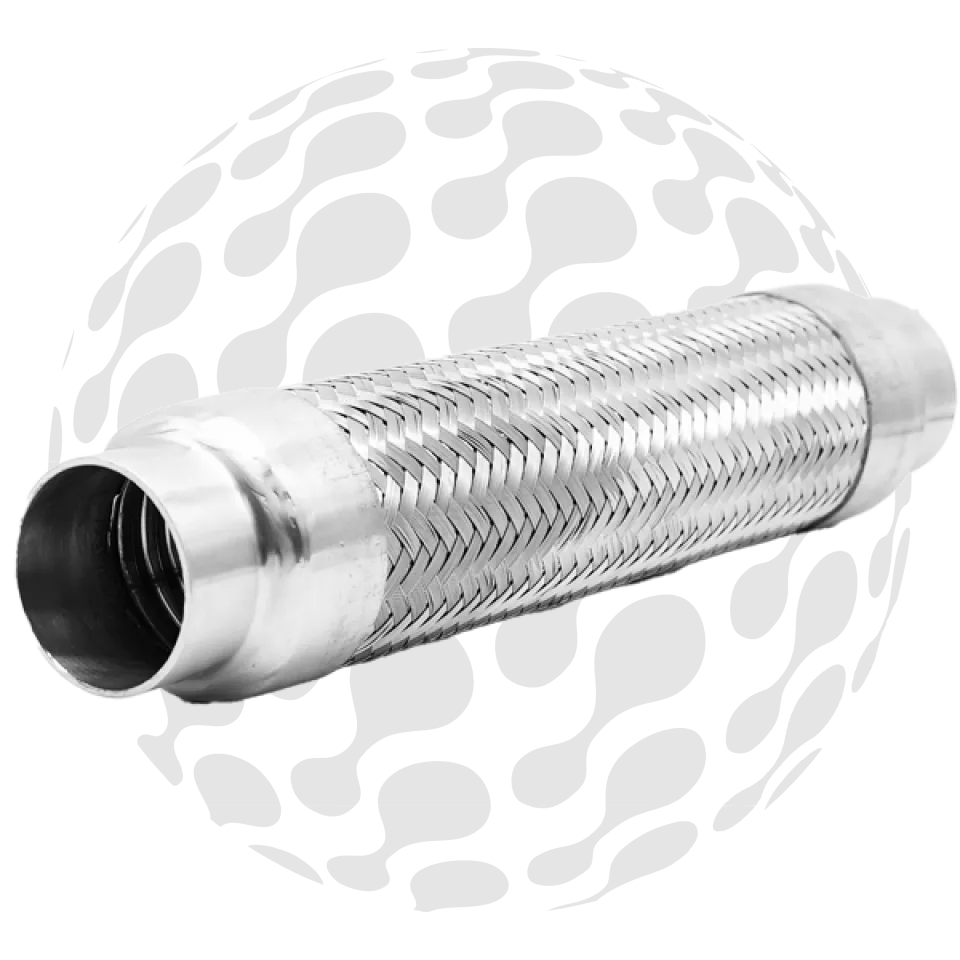

FlexiFlow Hose with Schedule 10S Pipe Ends
FlexiFlow Hose with Schedule 10S Pipe Ends
Features
- FlexiFlow Stainless Steel Convoluted Braided Hose
- Connections: Schedule 10S Pipe Butt Weld Ends
- Temperature Rating: -100˚C to 550˚C ...
- Hose Test Standard: ISO 10380-2012
- Hose Designation: TYPE 1-10
- Click 'View Dimensions' for the following information:
- F = Static/Flexing Minimum Bend Radius (mm)
- G = Working/Test Pressure (bar)
View Dimensions
-

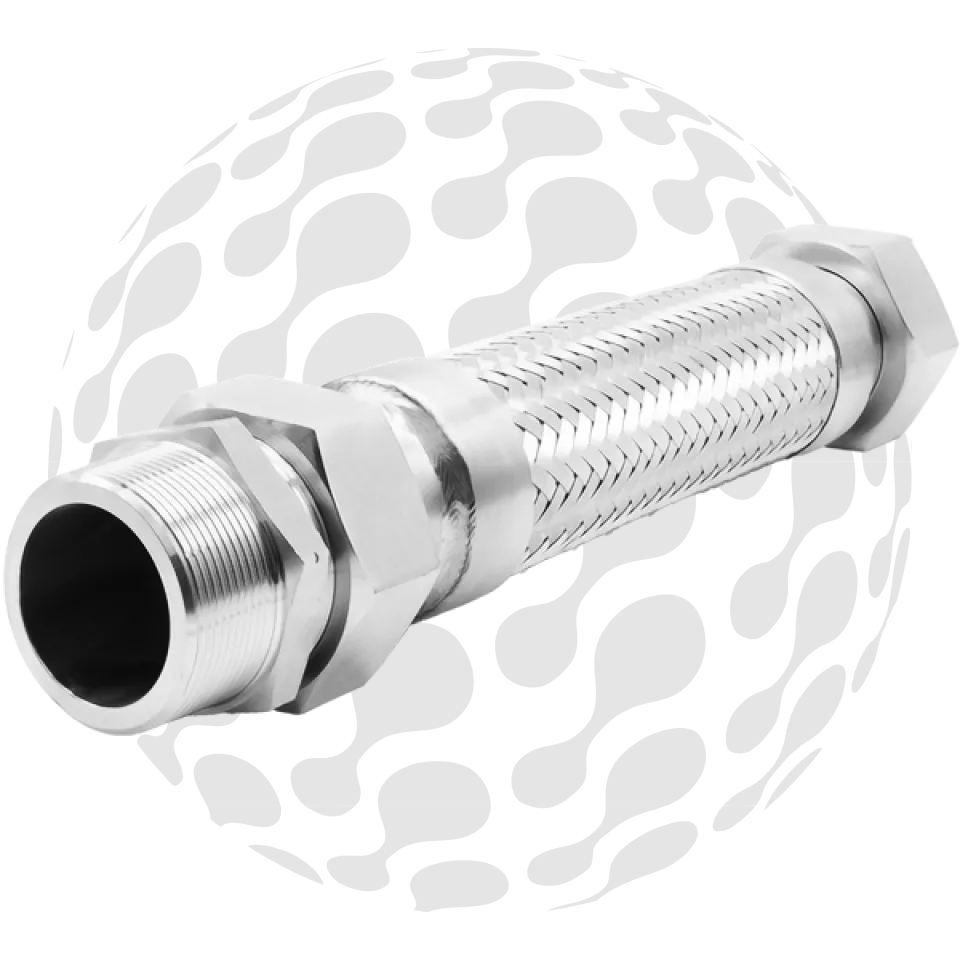

FlexiFlow Hose with BSP Male/Female Connections
FlexiFlow Hose with BSP Male/Female Connections
Features
- FlexiFlow Stainless Steel Convoluted Braided Hose
- Connection 1: BSP Nipple
- Connection 2: BSP Running Nut ...
- Temperature Rating: -100˚C to 550˚C
- Hose Test Standard: ISO 10380-2012
- Hose Designation: TYPE 1-10
- ***Please note that some stock is made up of FlexiFlow Hoses with BSP Running Nuts on both ends with a FlexiFlow BSP Conical Hex Nipple pre-installed on one end until new stock arrives***
- Click 'View Dimensions' for the following information:
- D = Static/Flexing Minimum Bend Radius (mm)
- E = Working/Test Pressure (bar)
View Dimensions
-

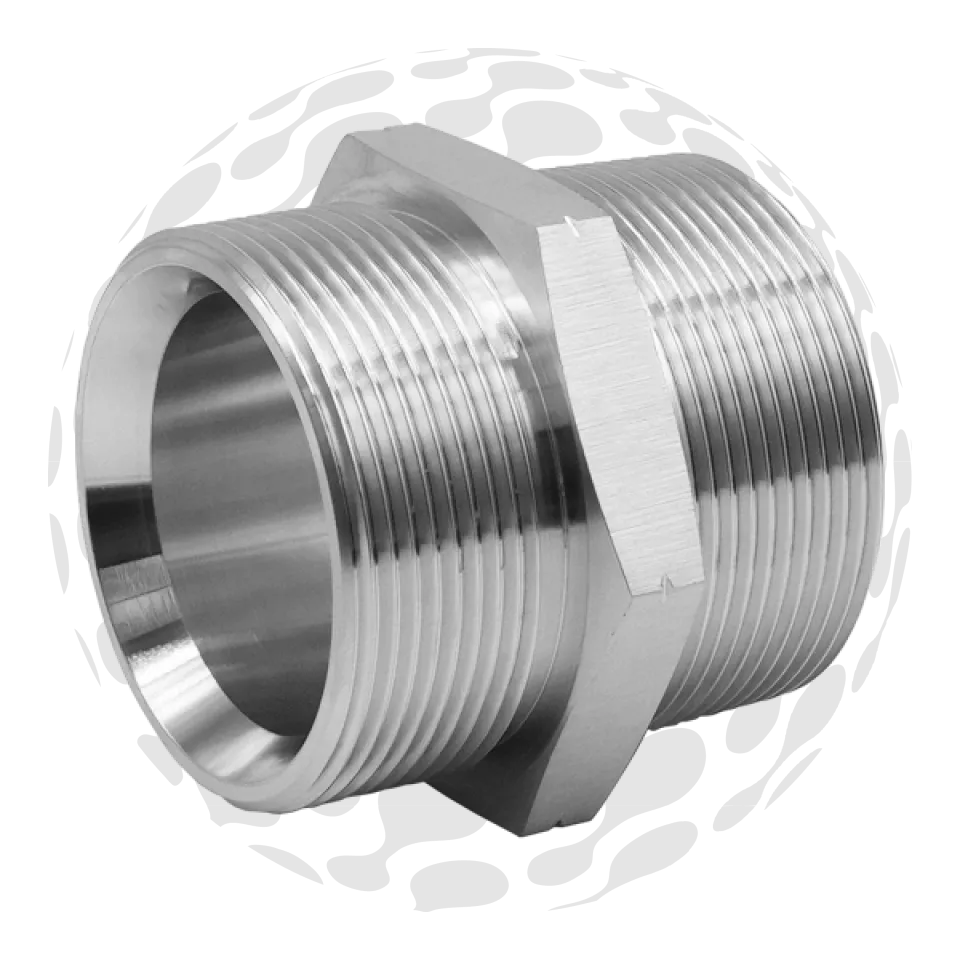

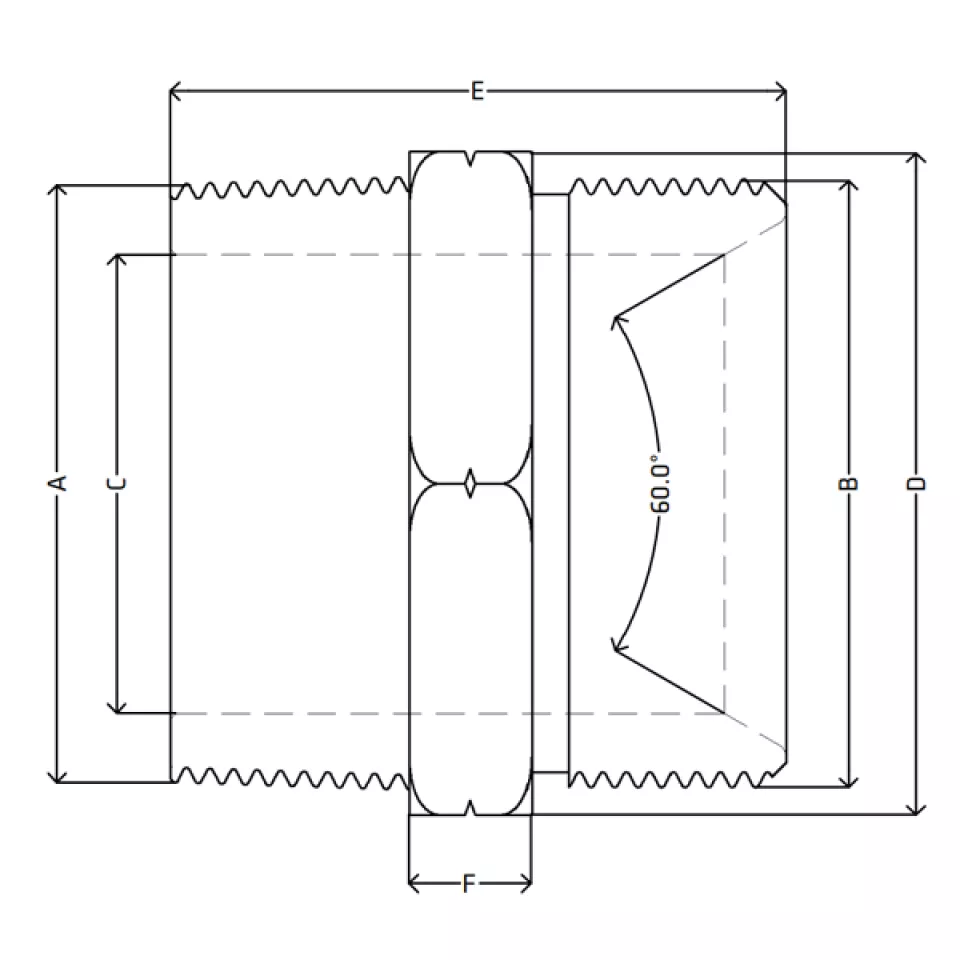

FlexiFlow BSP Conical Hex Nipple
FlexiFlow BSP Conical Hex Nipple
Features
- Conical faced internal suitable for use with FlexiFlow Hoses with BSP Running Nuts
- BSP Threaded Ends (ISO 7-1, ISO 228-1)
- Working Pressure: 10 bar (150 psi) ...
- Working Temperature: 250°C @ 10 bar
- *Please note: Dimension 'A' is BSPT and Dimension 'B' is BSPP*
View Dimensions
FlexiFlow Hoses with Union Connections
-

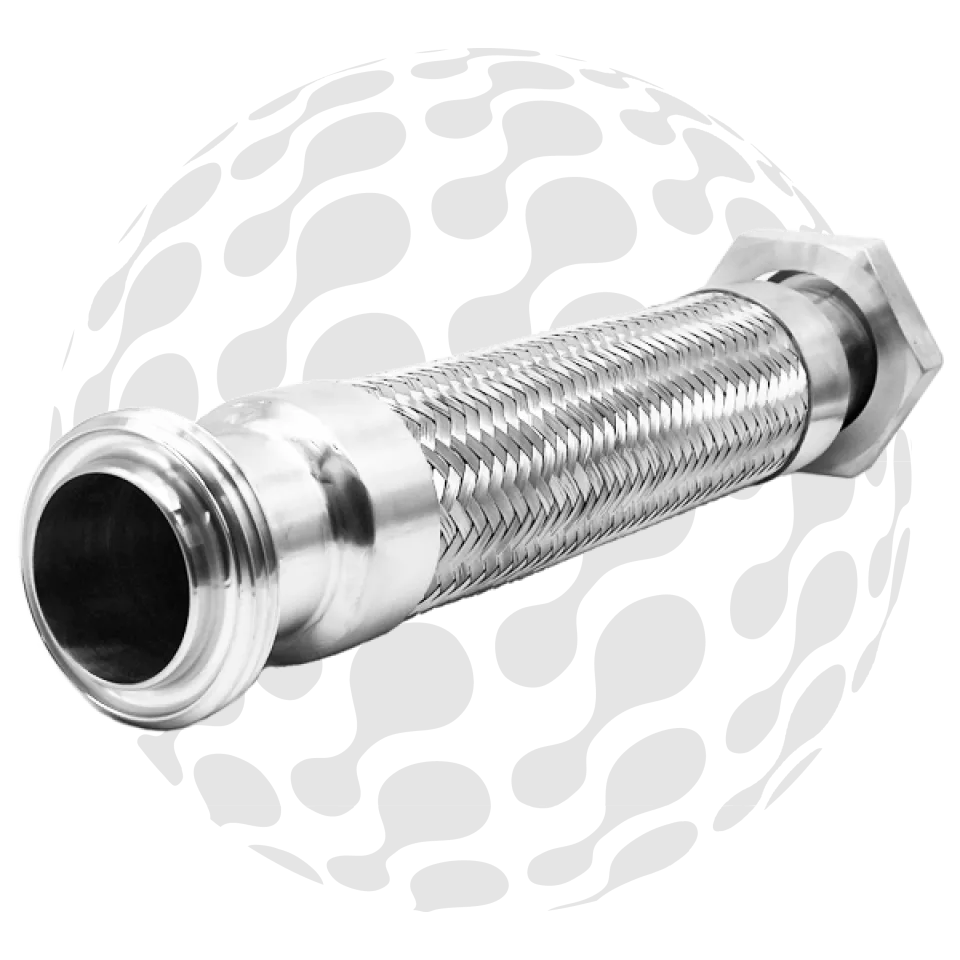

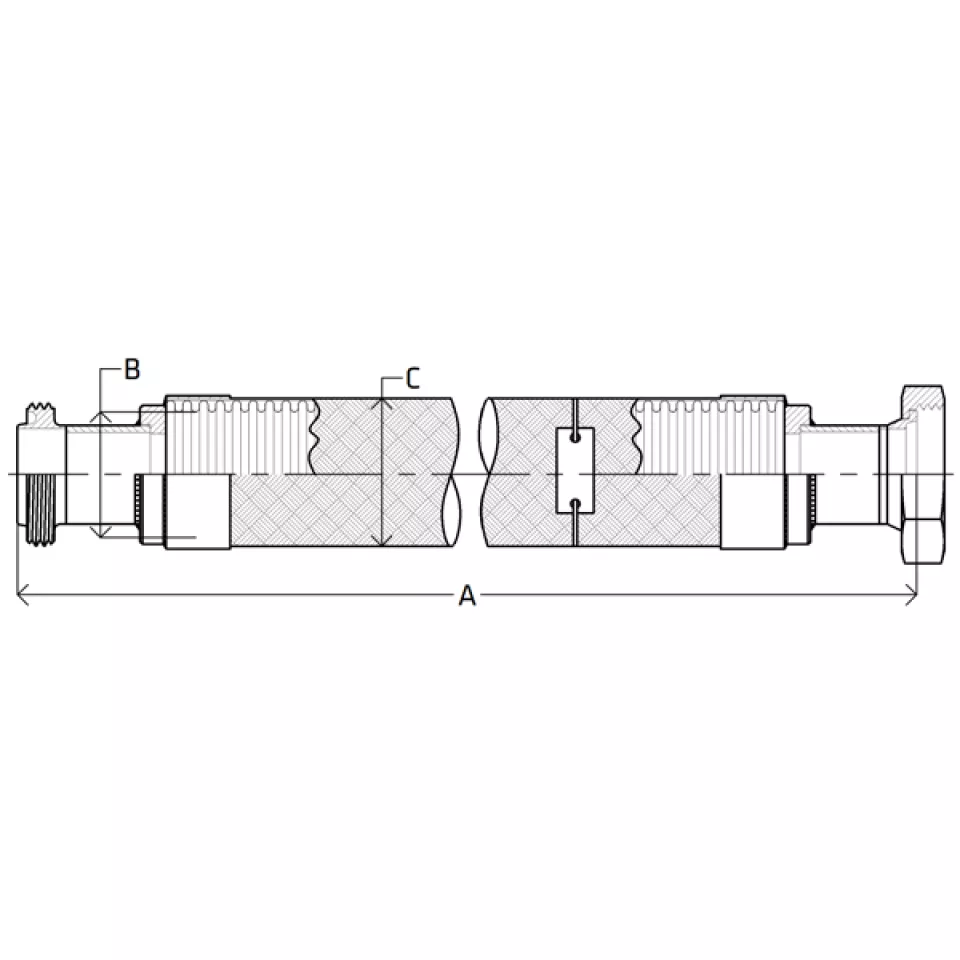

FlexiFlow Hose with RJT Male/Female
FlexiFlow Hose with RJT Male/Female
Features
- **Please allow 1-2 days lead time for fabrication**
- FlexiFlow Stainless Steel Convoluted Braided Hose
- Connection 1: RJT Male Part ...
- Connection 2: RJT Weld Liner & Hex Nut
- Hose Test Standard: ISO 10380-2012
- Hose Designation: TYPE 1-10
- Click 'View Dimensions' for the following information:
- D = Static/Flexing Minimum Bend Radius (mm)
- E = Working/Test Pressure (bar) *Applies to Hose Only, Not End Connections*
View Dimensions
-

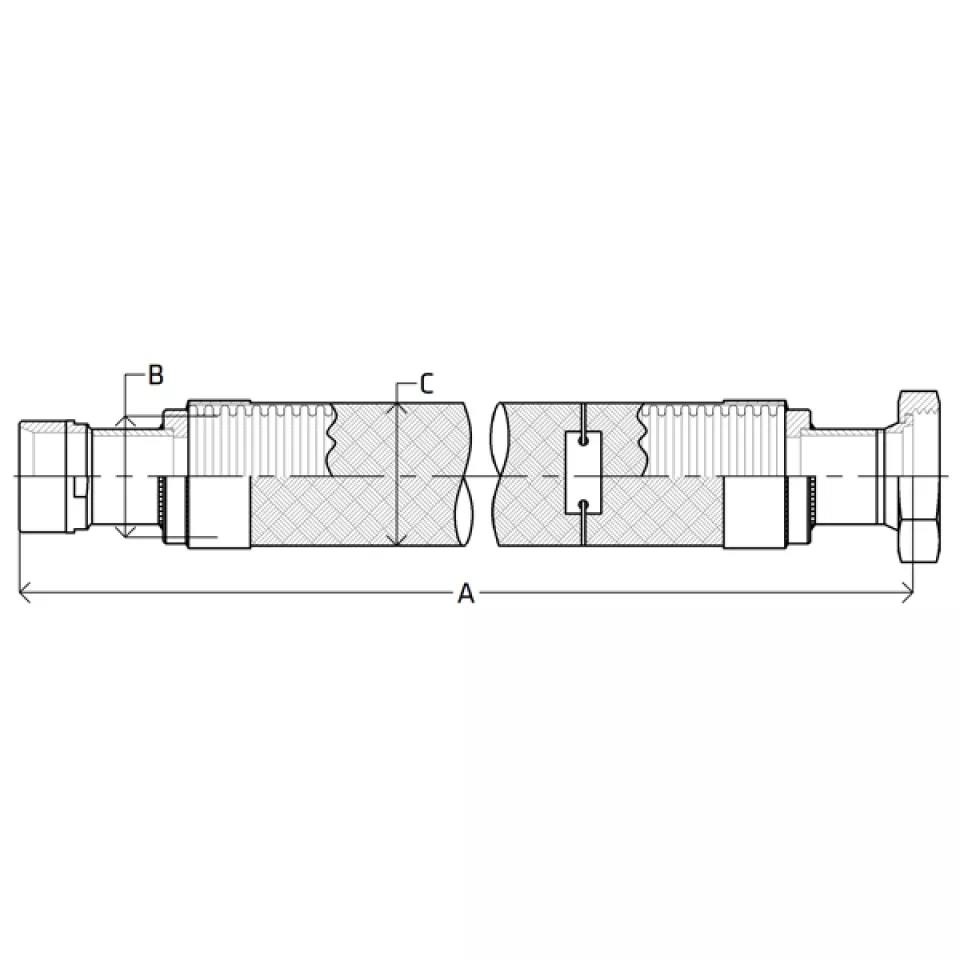

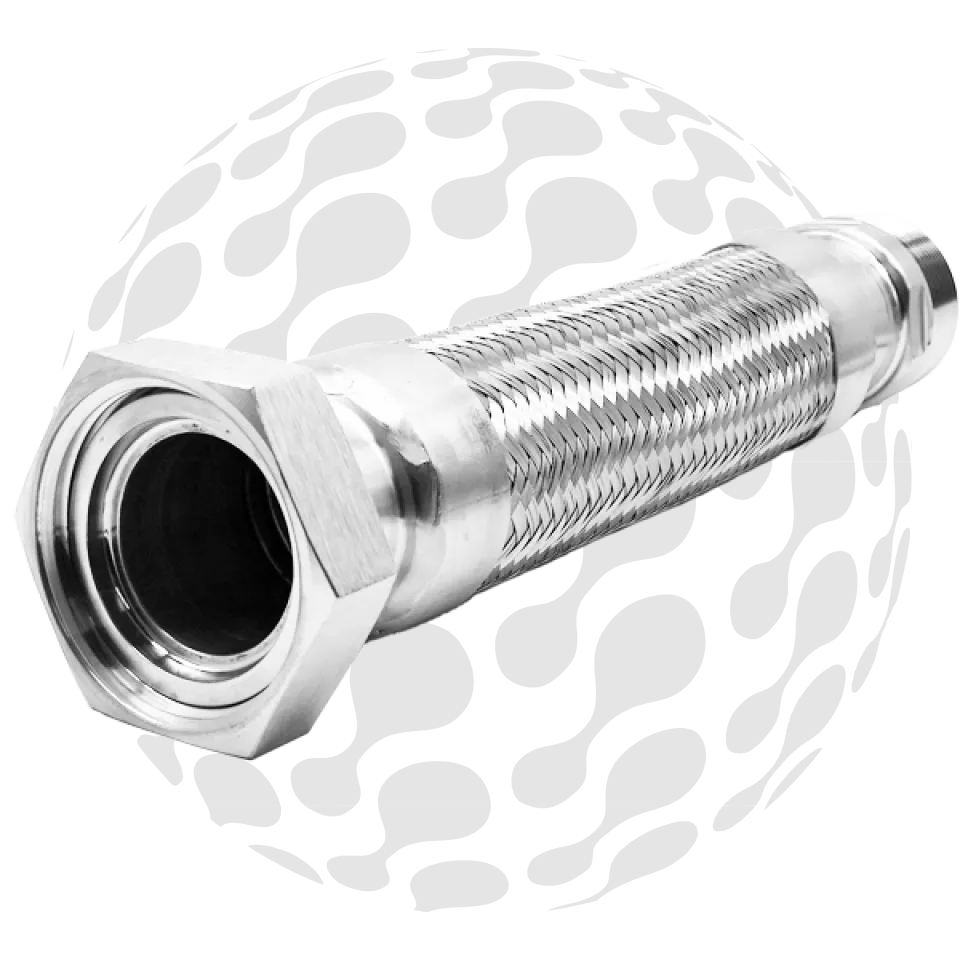

FlexiFlow Hose with BSP/RJT Female
FlexiFlow Hose with BSP/RJT Female
Features
- **Please allow 1-2 days lead time for fabrication**
- FlexiFlow Stainless Steel Convoluted Braided Hose
- Connection 1: BSP Nipple ...
- Connection 2: RJT Weld Liner & Hex Nut
- Hose Test Standard: ISO 10380-2012
- Hose Designation: TYPE 1-10
- Click 'View Dimensions' for the following information:
- D = Static/Flexing Minimum Bend Radius (mm)
- E = Working/Test Pressure (bar) *Applies to Hose Only, Not End Connections*
View Dimensions
-

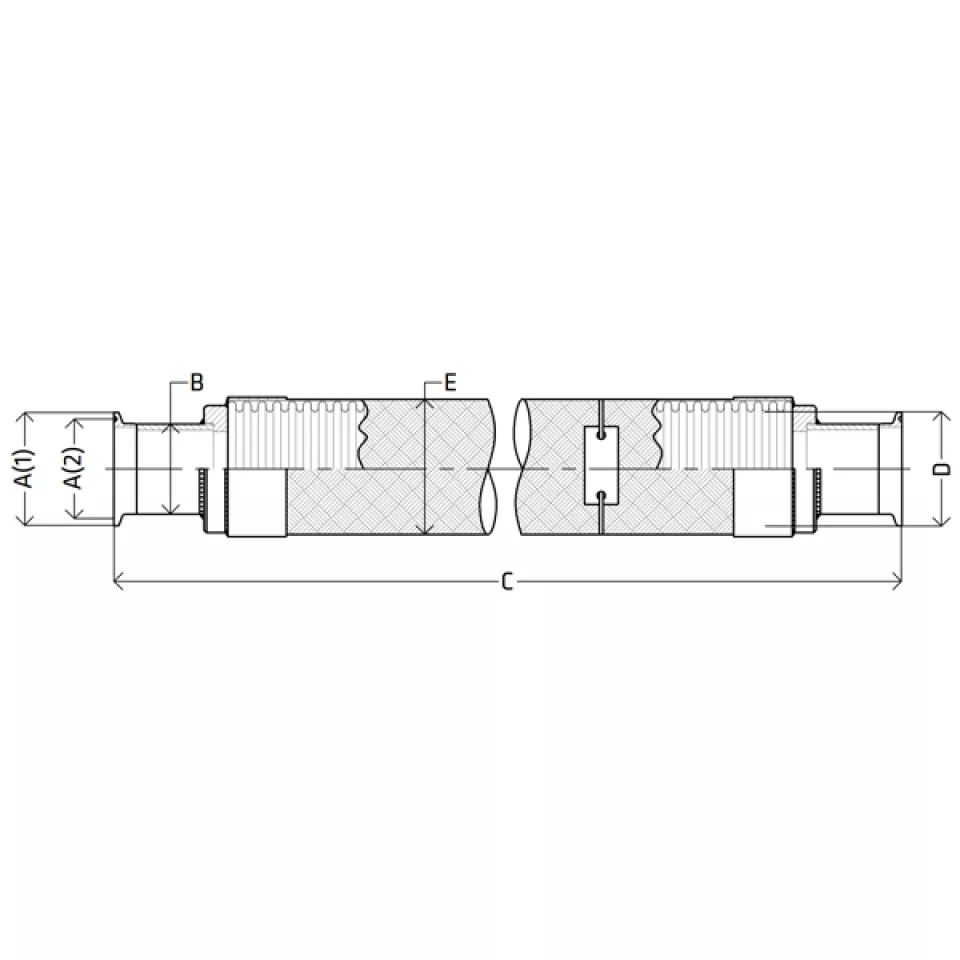

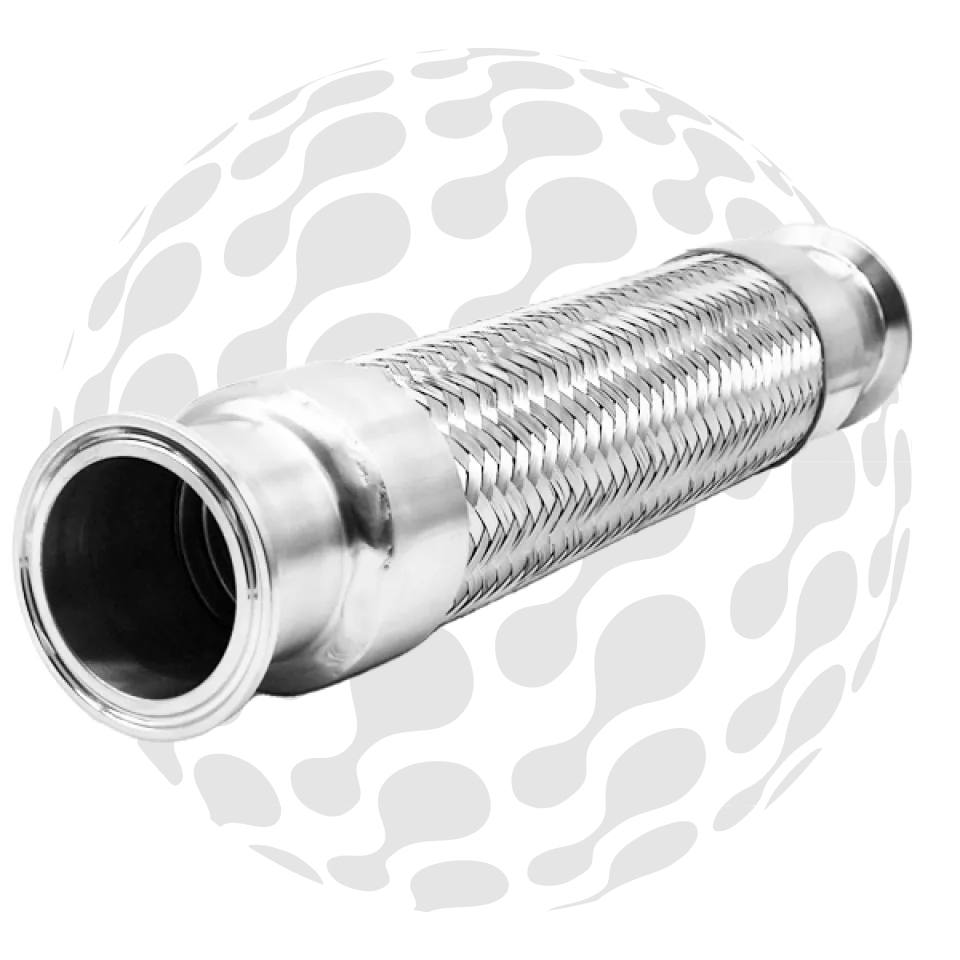

FlexiFlow Hose with Tri Clover Ferrules
FlexiFlow Hose with Tri Clover Ferrules
Features
- **Please allow 1-2 days lead time for fabrication**
- FlexiFlow Stainless Steel Convoluted Braided Hose
- Connections: Tri Clover Ferrules ...
- Hose Test Standard: ISO 10380-2012
- Hose Designation: TYPE 1-10
- Click 'View Dimensions' for the following information:
- F = Static/Flexing Minimum Bend Radius (mm)
- G = Working/Test Pressure (bar) *Applies to Hose Only, Not End Connections*
View Dimensions
-

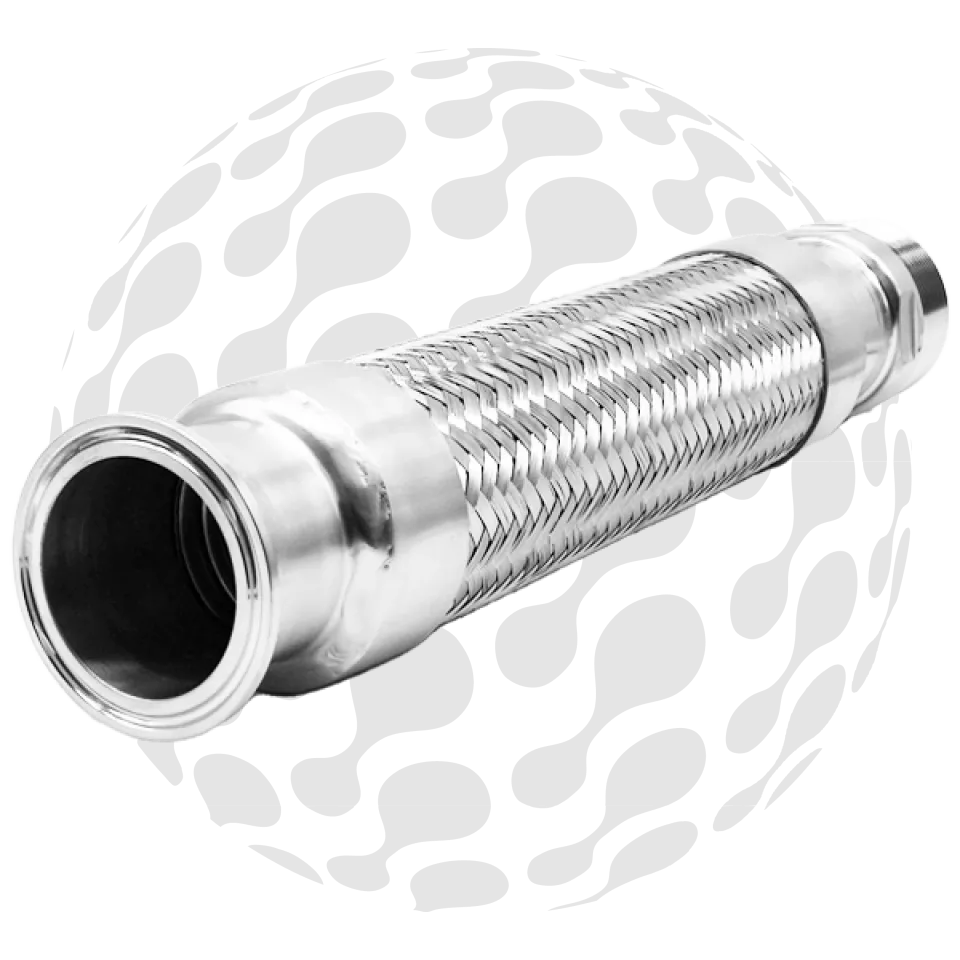

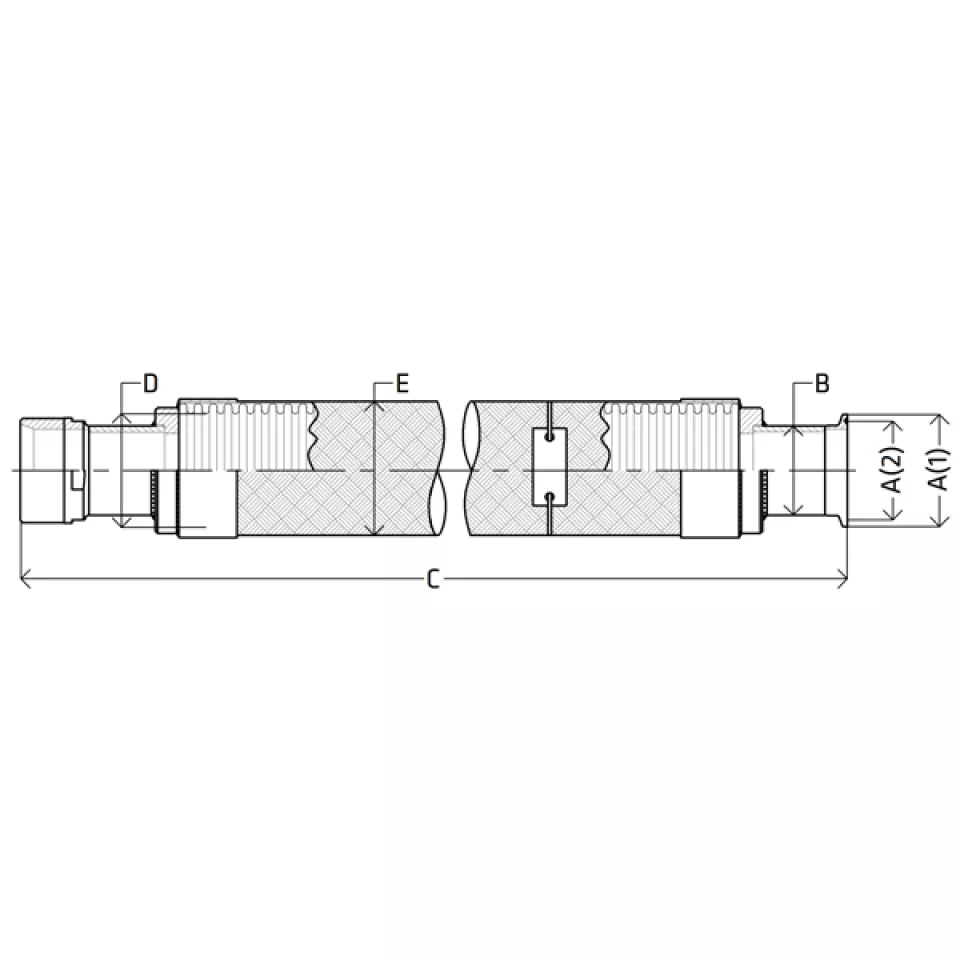

FlexiFlow Hose with BSP/Tri Clover Ferrule
FlexiFlow Hose with BSP/Tri Clover Ferrule
Features
- **Please allow 1-2 days lead time for fabrication**
- FlexiFlow Stainless Steel Convoluted Braided Hose
- Connection 1: BSP Nipple ...
- Connection 2: Tri Clover Ferrule
- Hose Test Standard: ISO 10380-2012
- Hose Designation: TYPE 1-10
- Click 'View Dimensions' for the following information:
- F = Static/Flexing Minimum Bend Radius (mm)
- G = Working/Test Pressure (bar) *Applies to Hose Only, Not End Connections*
View Dimensions
FlexiFlow Hoses with RapidPress Connections
-
FlexiFlow Hose with RapidPress Couplers
FlexiFlow Hose with RapidPress Couplers
Features
- **Please allow 1-2 days lead time for fabrication**
- FlexiFlow Stainless Steel Convoluted Braided Hose
- Connections: RapidPress Couplers ...
- Hose Test Standard: ISO 10380-2012
- Hose Designation: TYPE 1-10
- Click 'View Dimensions' for the following information:
- E = Static/Flexing Minimum Bend Radius (mm)
- F = Working/Test Pressure (bar) *Applies to Hose Only, Not End Connections*
View Dimensions
-
FlexiFlow Hose with RapidPress Extreme Couplers
FlexiFlow Hose with RapidPress Extreme Couplers
Features
- **Please allow 1-2 days lead time for fabrication**
- FlexiFlow Stainless Steel Convoluted Braided Hose
- Connections: RapidPress Extreme Couplers (FKM) ...
- Hose Test Standard: ISO 10380-2012
- Hose Designation: TYPE 1-10
- Click 'View Dimensions' for the following information:
- E = Static/Flexing Minimum Bend Radius (mm)
- F = Working/Test Pressure (bar) *Applies to Hose Only, Not End Connections*
View Dimensions
FlexiFlow Hoses with Flange Connections
-

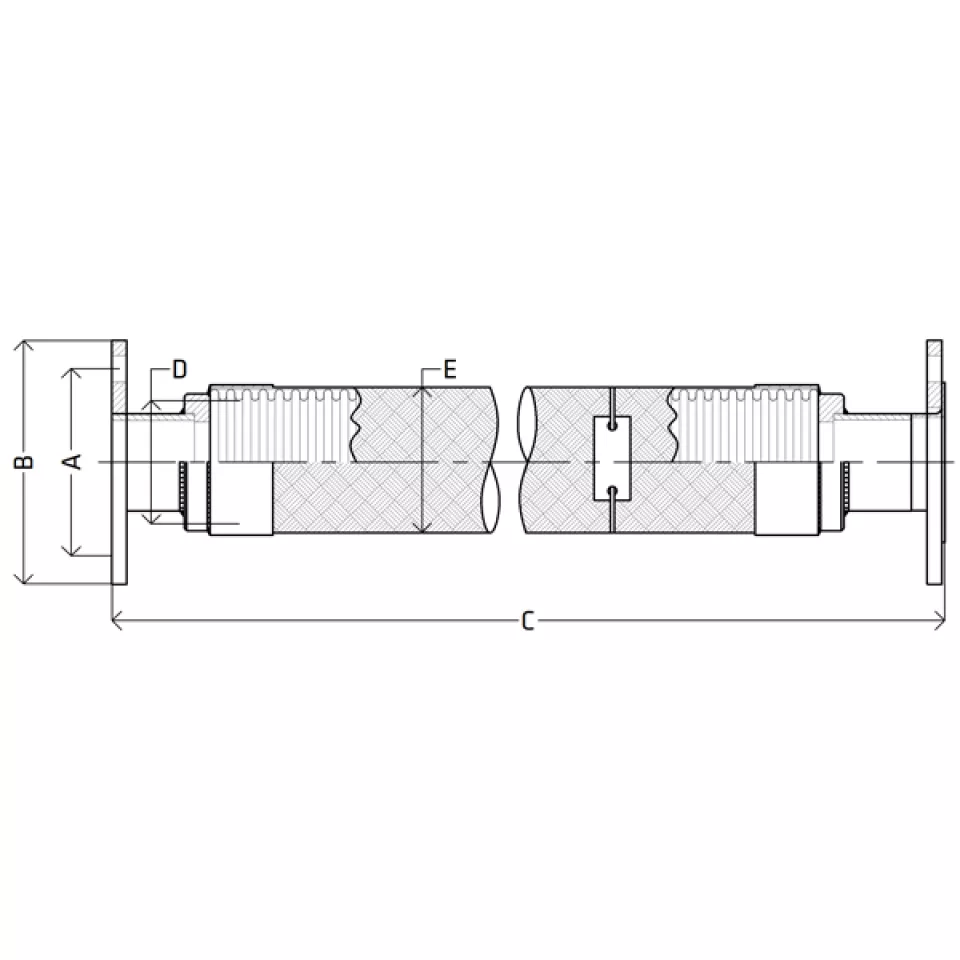

FlexiFlow Hose with Table E Flanges
FlexiFlow Hose with Table E Flanges
Features
- **Please allow 1-2 days lead time for fabrication**
- FlexiFlow Stainless Steel Convoluted Braided Hose
- Connection 1: Table E (*Non Standard* AS2129) Flange ...
- Connection 2: Table E (*Non Standard* AS2129) Flange with Neck Ring (Floating Flange)
- Hose Test Standard: ISO 10380-2012
- Hose Designation: TYPE 1-10
- Click 'View Dimensions' for the following information:
- F = Static/Flexing Minimum Bend Radius (mm)
- G = Working/Test Pressure (bar) *Applies to Hose Only, Not End Connections*
-
FlexiFlow Hose with PN10-40 Flanges
FlexiFlow Hose with PN10-40 Flanges
Features
- **Please allow 1-2 days lead time for fabrication**
- FlexiFlow Stainless Steel Convoluted Braided Hose
- Connection 1: PN10/16/40 (EN1092-1) Flange ...
- Connection 2: PN10/16/40 (EN1092-1) Flange with Neck Ring (Floating Flange)
- Hose Test Standard: ISO 10380-2012
- Hose Designation: TYPE 1-10
- Click 'View Dimensions' for the following information:
- F = Static/Flexing Minimum Bend Radius (mm)
- G = Working/Test Pressure (bar) *Applies to Hose Only, Not End Connections*
View Dimensions
-

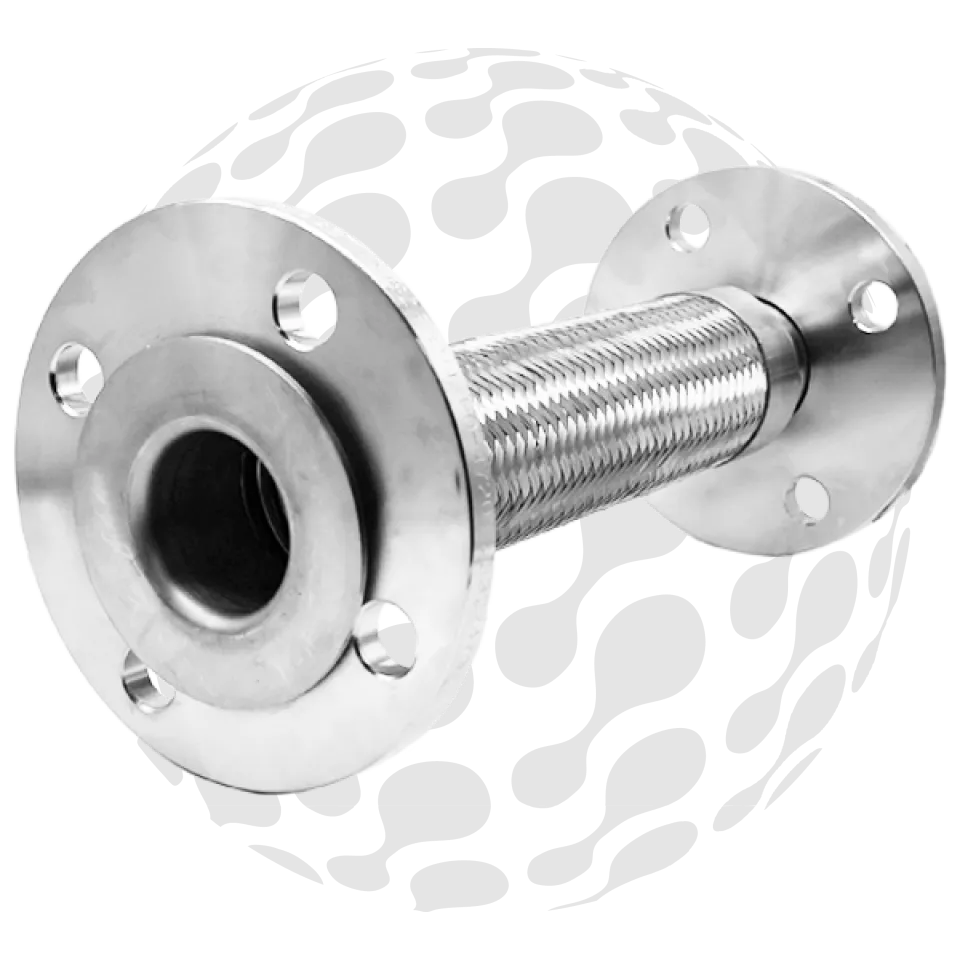

FlexiFlow Hose with ANSI150 Flanges
FlexiFlow Hose with ANSI150 Flanges
Features
- **Please allow 1-2 days lead time for fabrication**
- FlexiFlow Stainless Steel Convoluted Braided Hose
- Connection 1: ANSI150 (ASME B16.5) Flange ...
- Connection 2: ANSI150 (ASME B16.5) Flange with Neck Ring (Floating Flange)
- Hose Test Standard: ISO 10380-2012
- Hose Designation: TYPE 1-10
- Click 'View Dimensions' for the following information:
- F = Static/Flexing Minimum Bend Radius (mm)
- G = Working/Test Pressure (bar) *Applies to Hose Only, Not End Connections*
View Dimensions
FlexiFlow 'U' Loops
-

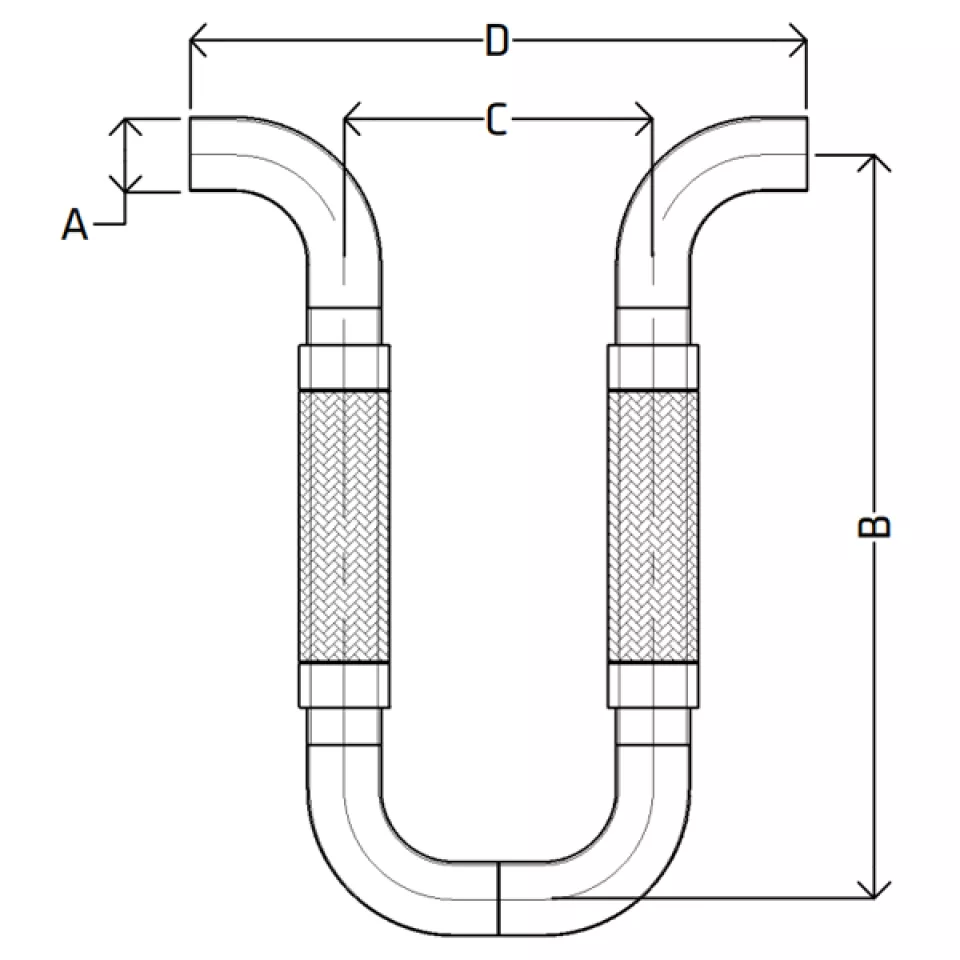

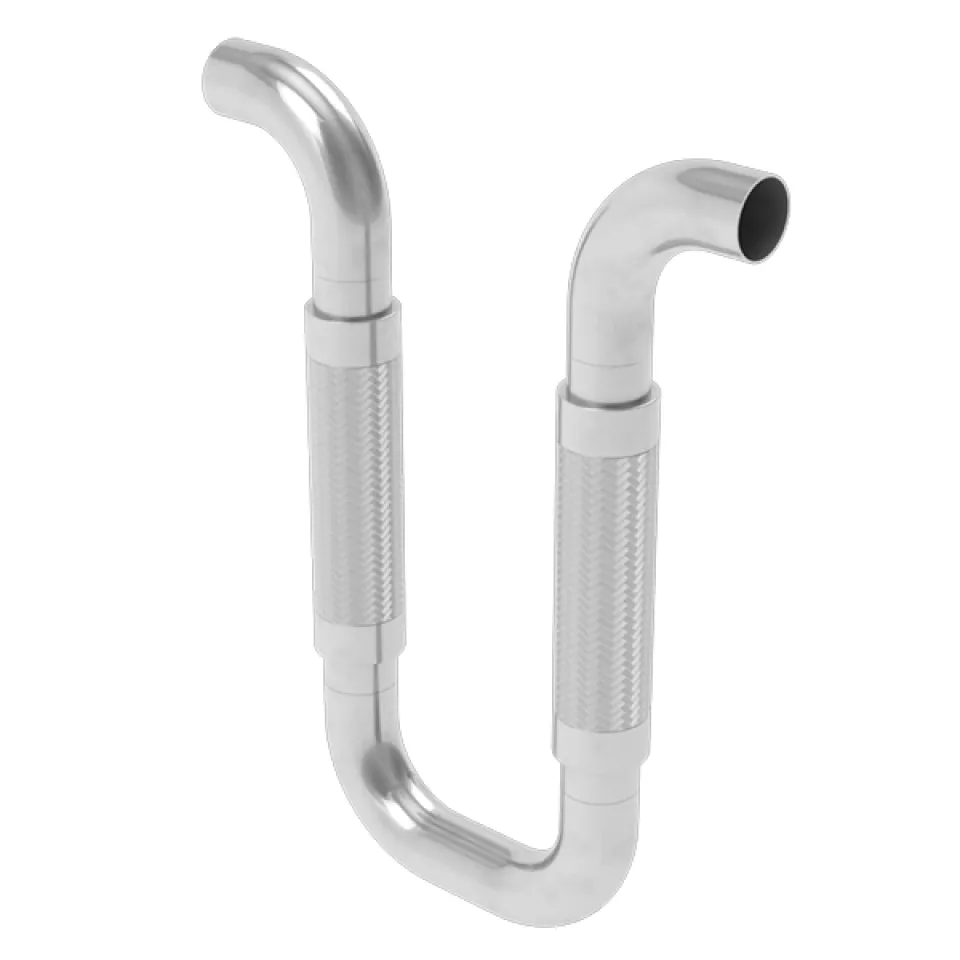

FlexiFlow 'U' Loop w/ Imperial Tube Ends
FlexiFlow 'U' Loop w/ Imperial Tube Ends
Features
- Butt Weld Ends (Imperial Tube)
- Measurement 'E' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-

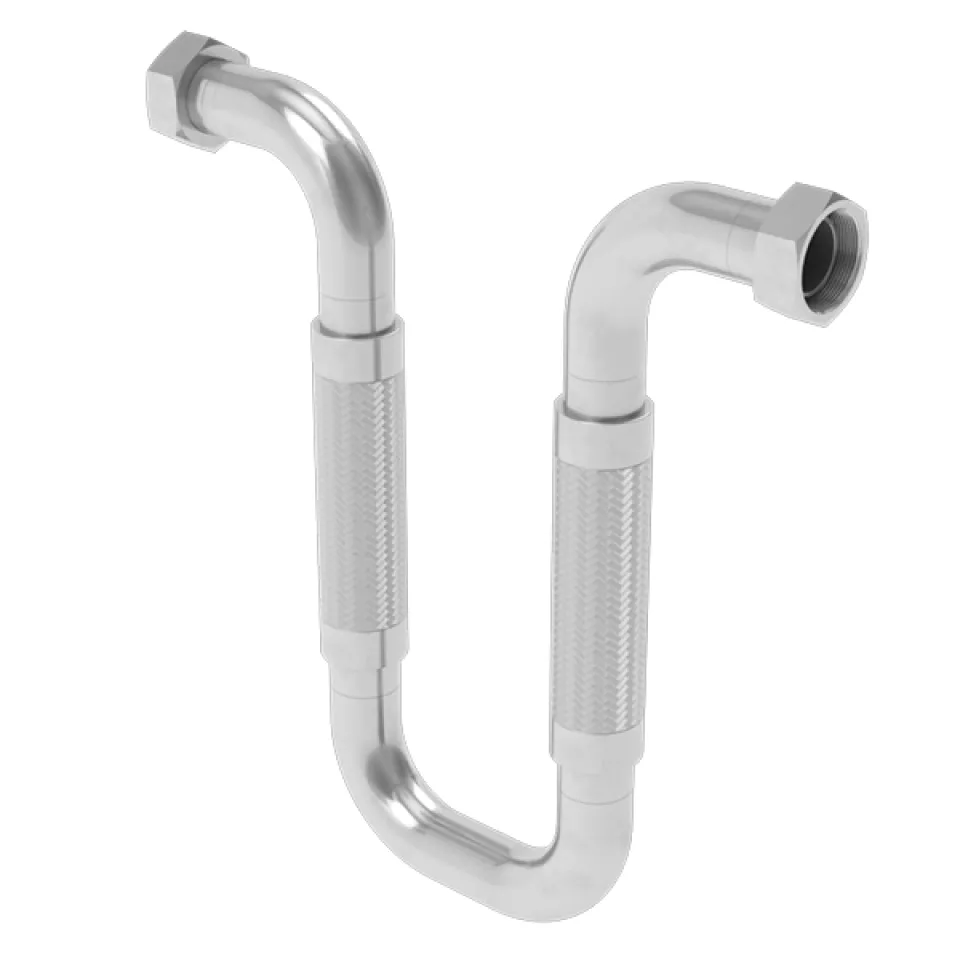

FlexiFlow 'U' Loop w/ BSP Floating Nuts
FlexiFlow 'U' Loop w/ BSP Floating Nuts
Features
- BSP Floating Nut End Connections
- Measurement 'F' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow 'U' Loop w/ RJT Connections
FlexiFlow 'U' Loop w/ RJT Connections
Features
- RJT Male Part & Weld Liner/Hex Nut End Connections
- Measurement 'E' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-

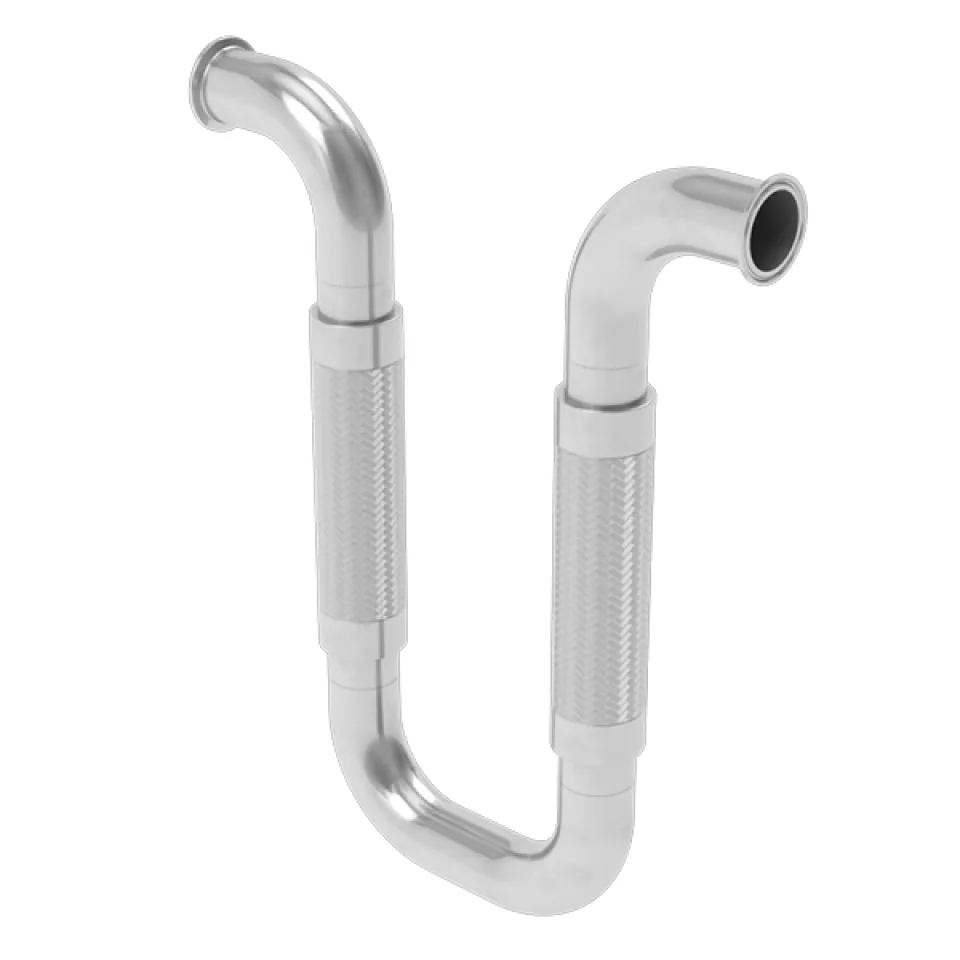

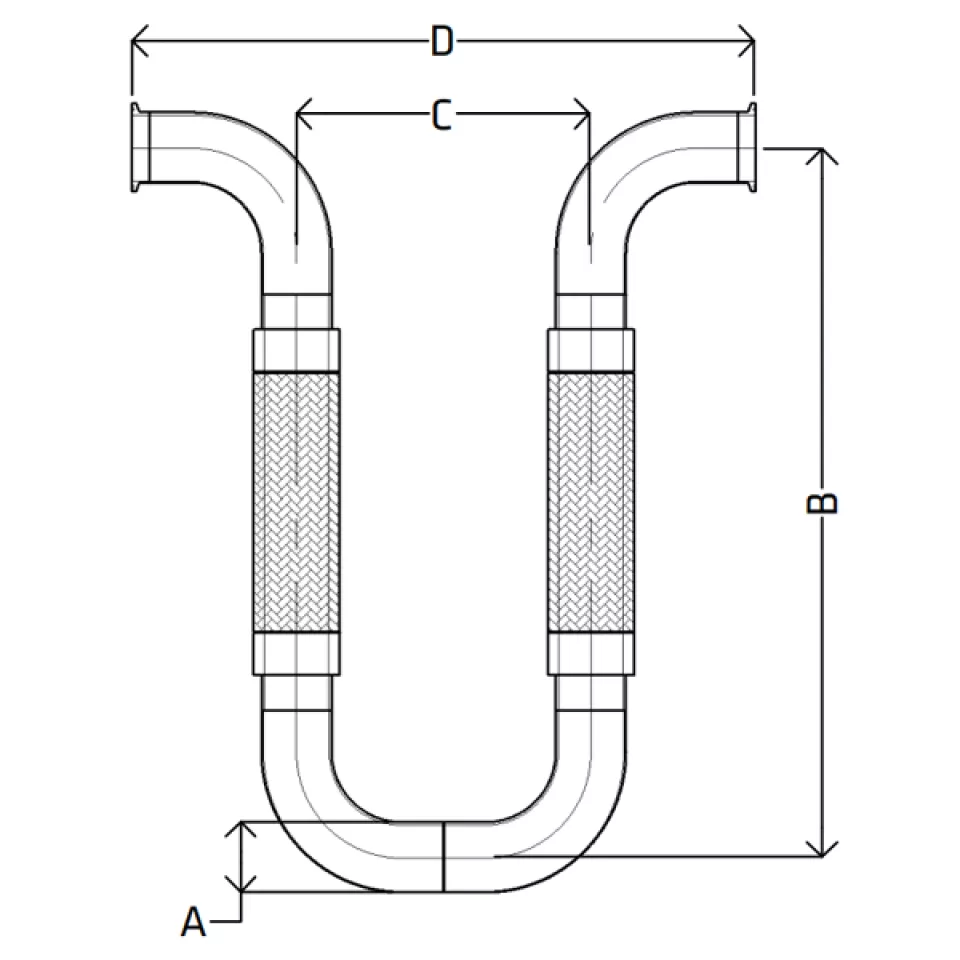

FlexiFlow 'U' Loop w/ Tri Clover Ferrules
FlexiFlow 'U' Loop w/ Tri Clover Ferrules
Features
- Tri Clover Ferrule End Connections
- Measurement 'E' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-

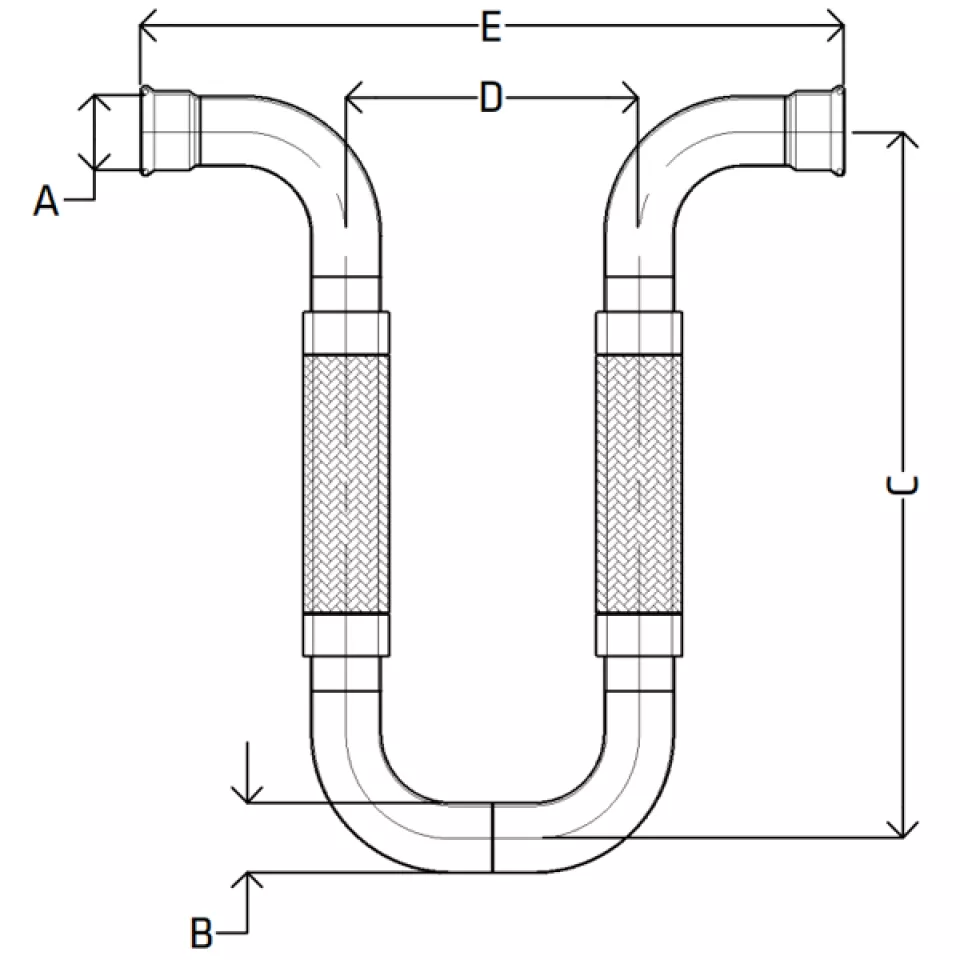

FlexiFlow 'U' Loop w/ RapidPress Couplers
FlexiFlow 'U' Loop w/ RapidPress Couplers
Features
- RapidPress Coupler End Connections (EPDM Seals)
- Measurement 'F' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow 'U' Loop w/ RapidPress Extreme Couplers
FlexiFlow 'U' Loop w/ RapidPress Extreme Couplers
Features
- RapidPress Extreme Coupler End Connections (FKM Seals)
- Measurement 'F' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-

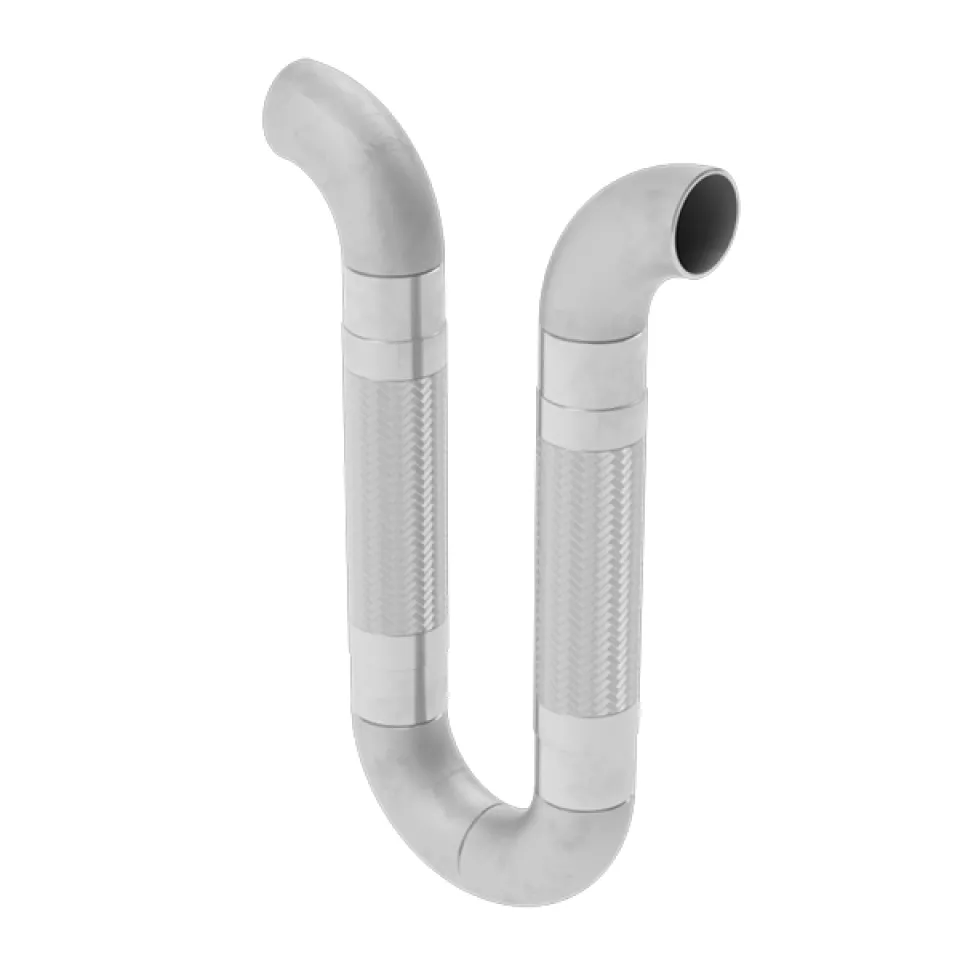

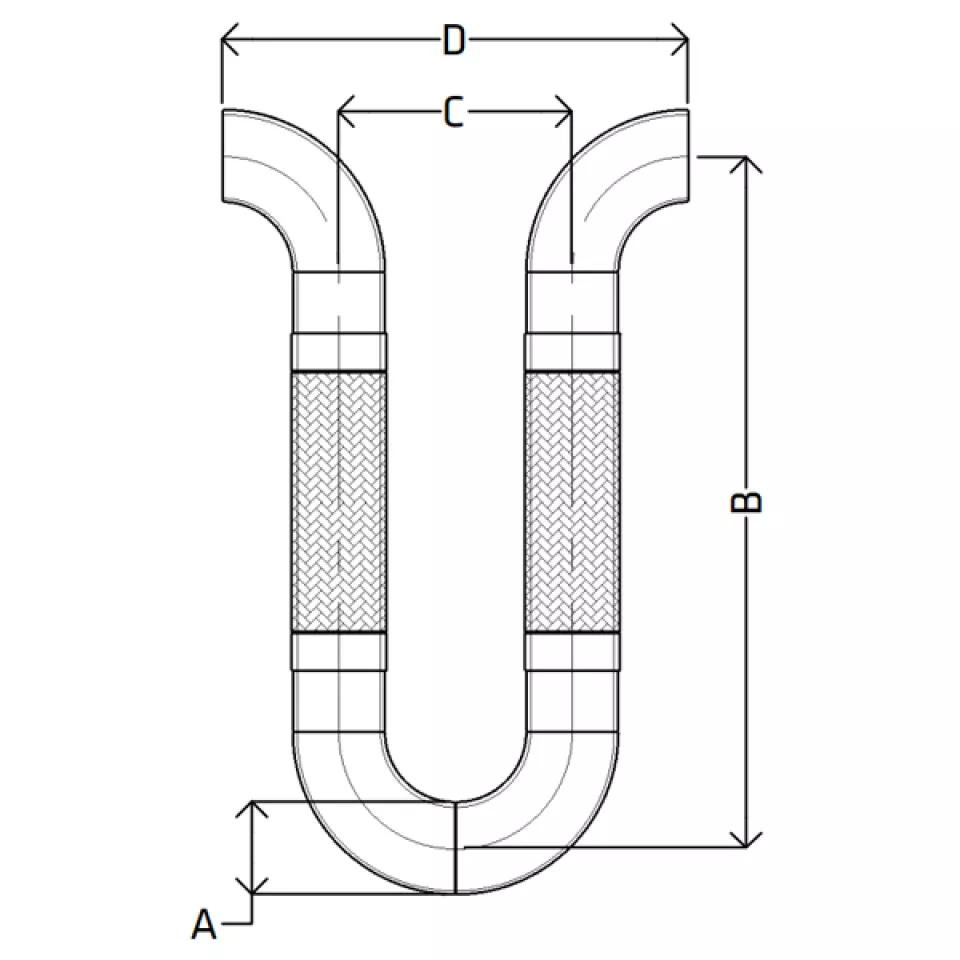

FlexiFlow 'U' Loop w/ Schedule 10S Pipe Ends
FlexiFlow 'U' Loop w/ Schedule 10S Pipe Ends
Features
- Butt Weld Ends (Schedule 10S Pipe)
- Measurement 'E' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow 'U' Loop w/ Loose Table E Flanges
FlexiFlow 'U' Loop w/ Loose Table E Flanges
Features
- Table E Loose Flange End Connections (AS2129 Bolt Pattern Only)
- Measurement 'E' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-

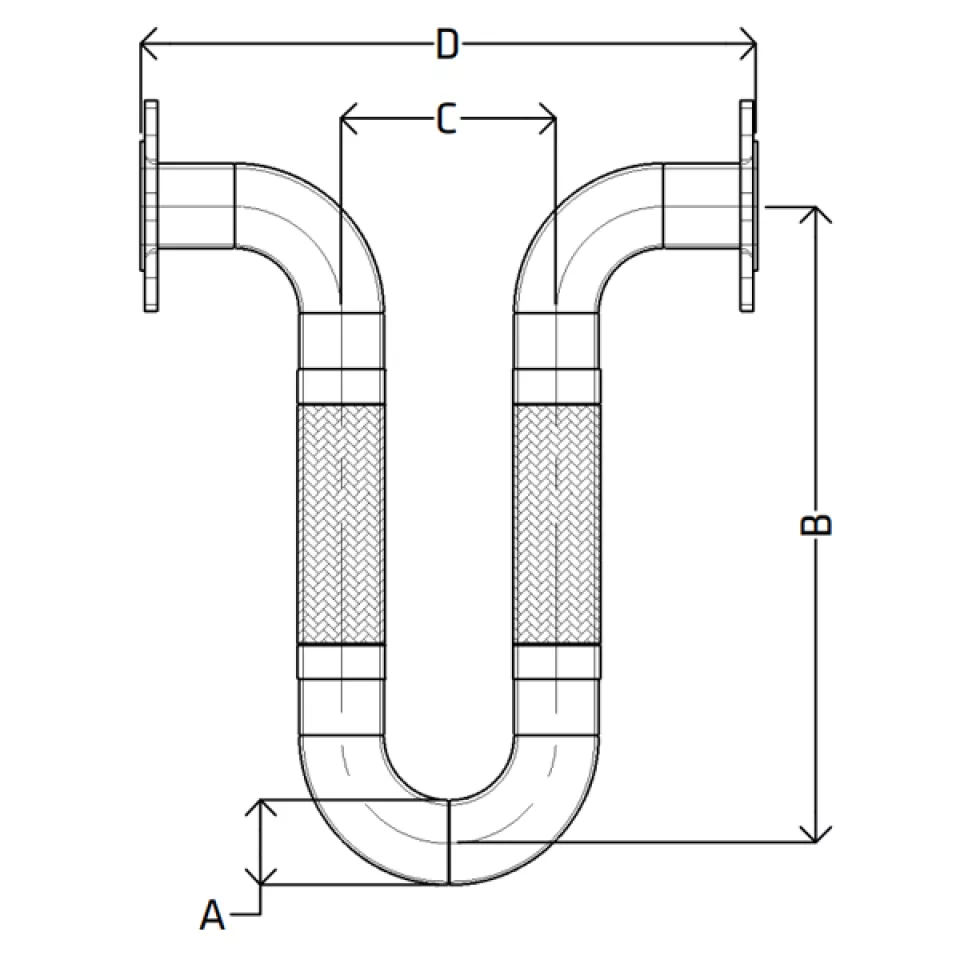

FlexiFlow 'U' Loop w/ Loose PN10-16 Flanges
FlexiFlow 'U' Loop w/ Loose PN10-16 Flanges
Features
- PN10-16 Loose Flange End Connections (EN1092-1 Bolt Pattern Only)
- Measurement 'E' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-

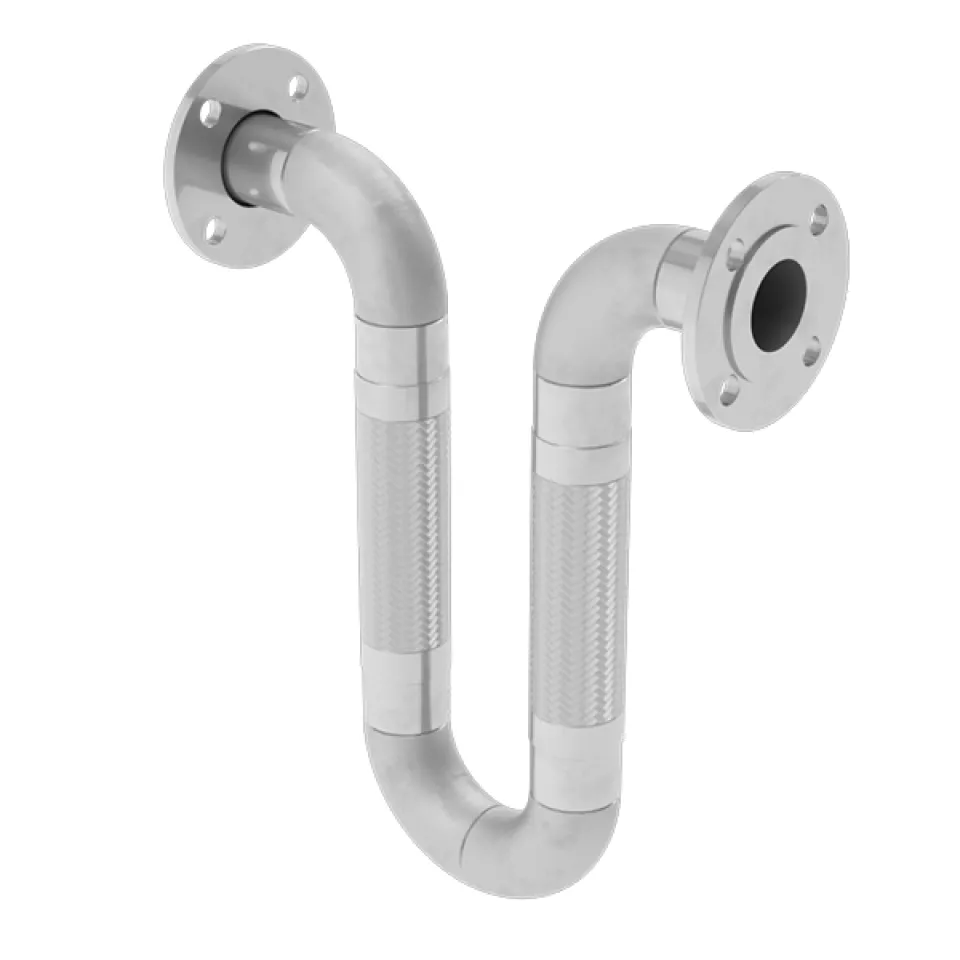

FlexiFlow 'U' Loop w/ Loose ANSI 150 Flanges
FlexiFlow 'U' Loop w/ Loose ANSI 150 Flanges
Features
- ANSI 150 Loose Flange End Connections (ASME B16.5 Bolt Pattern Only)
- Measurement 'E' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- Please allow 2-3 days lead-time for fabrication
View Dimensions

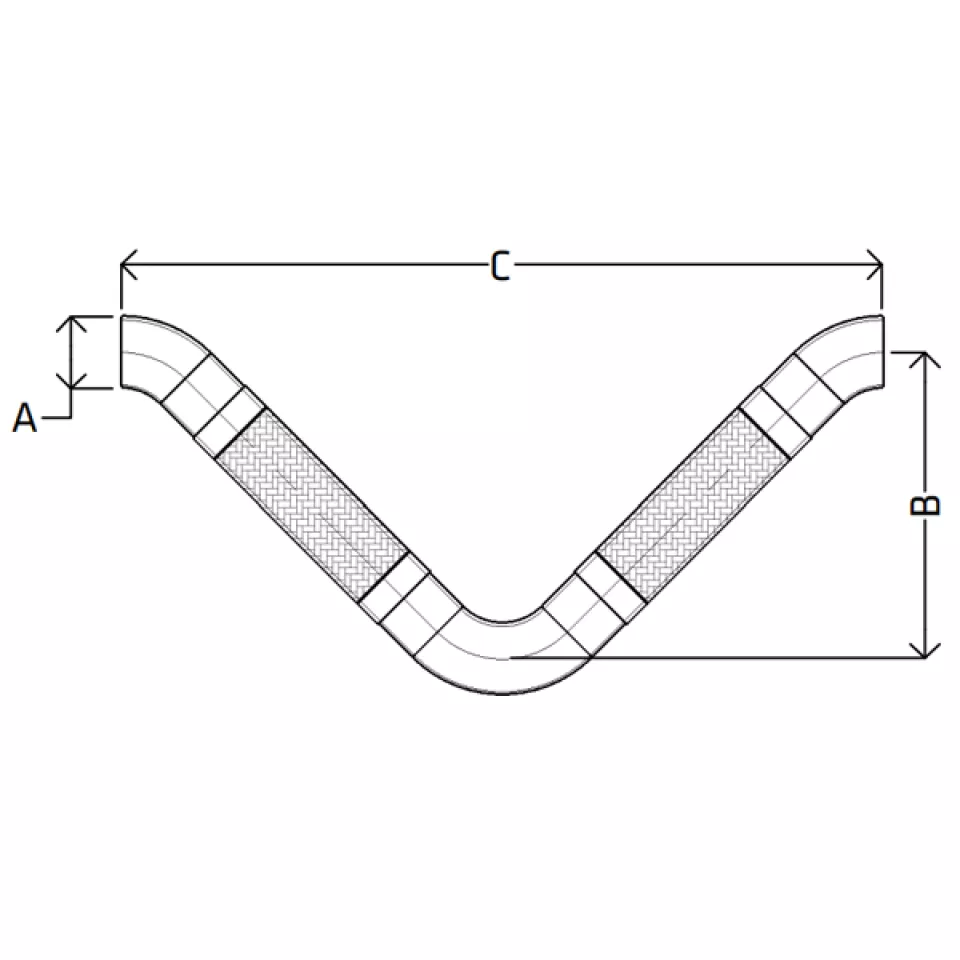

FlexiFlow 'V' Loops
-
FlexiFlow 'V' Loop w/ Imperial Tube Ends
FlexiFlow 'V' Loop w/ Imperial Tube Ends
Features
- Butt Weld Ends (Imperial Tube)
- Measurement 'D' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow 'V' Loop w/ BSP Floating Nuts
FlexiFlow 'V' Loop w/ BSP Floating Nuts
Features
- BSP Floating Nut End Connections
- Measurement 'E' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow 'V' Loop w/ RJT Connections
FlexiFlow 'V' Loop w/ RJT Connections
Features
- RJT Male Part & Weld Liner/Hex Nut End Connections
- Measurement 'D' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow 'V' Loop w/ Tri Clover Ferrules
FlexiFlow 'V' Loop w/ Tri Clover Ferrules
Features
- Tri Clover Ferrule End Connections
- Measurement 'D' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow 'V' Loop w/ RapidPress Couplers
FlexiFlow 'V' Loop w/ RapidPress Couplers
Features
- RapidPress Coupler End Connections (EPDM Seals)
- Measurement 'E' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow 'V' Loop w/ RapidPress Extreme Couplers
FlexiFlow 'V' Loop w/ RapidPress Extreme Couplers
Features
- RapidPress Extreme Coupler End Connections (FKM Seals)
- Measurement 'E' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow 'V' Loop w/ Schedule 10S Pipe Ends
FlexiFlow 'V' Loop w/ Schedule 10S Pipe Ends
Features
- Butt Weld Ends (Schedule 10S Pipe)
- Measurement 'D' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow 'V' Loop w/ Loose Table E Flanges
FlexiFlow 'V' Loop w/ Loose Table E Flanges
Features
- Table E Loose Flange End Connections (AS2129 Bolt Pattern Only)
- Measurement 'D' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow 'V' Loop w/ Loose PN10-16 Flanges
FlexiFlow 'V' Loop w/ Loose PN10-16 Flanges
Features
- PN10-16 Loose Flange End Connections (EN1092-1 Bolt Pattern Only)
- Measurement 'D' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- Please allow 2-3 days lead-time for fabrication
View Dimensions
-
FlexiFlow 'V' Loop w/ Loose ANSI 150 Flanges
FlexiFlow 'V' Loop w/ Loose ANSI 150 Flanges
Features
- ANSI 150 Loose Flange End Connections (ASME B16.5 Bolt Pattern Only)
- Measurement 'D' = Deflection (all directions, per side)
- Lifting/Cable Lug can be added on request ...
- Please allow 2-3 days lead-time for fabrication
View Dimensions
