RapidPress Inox Extreme Press-Fit System

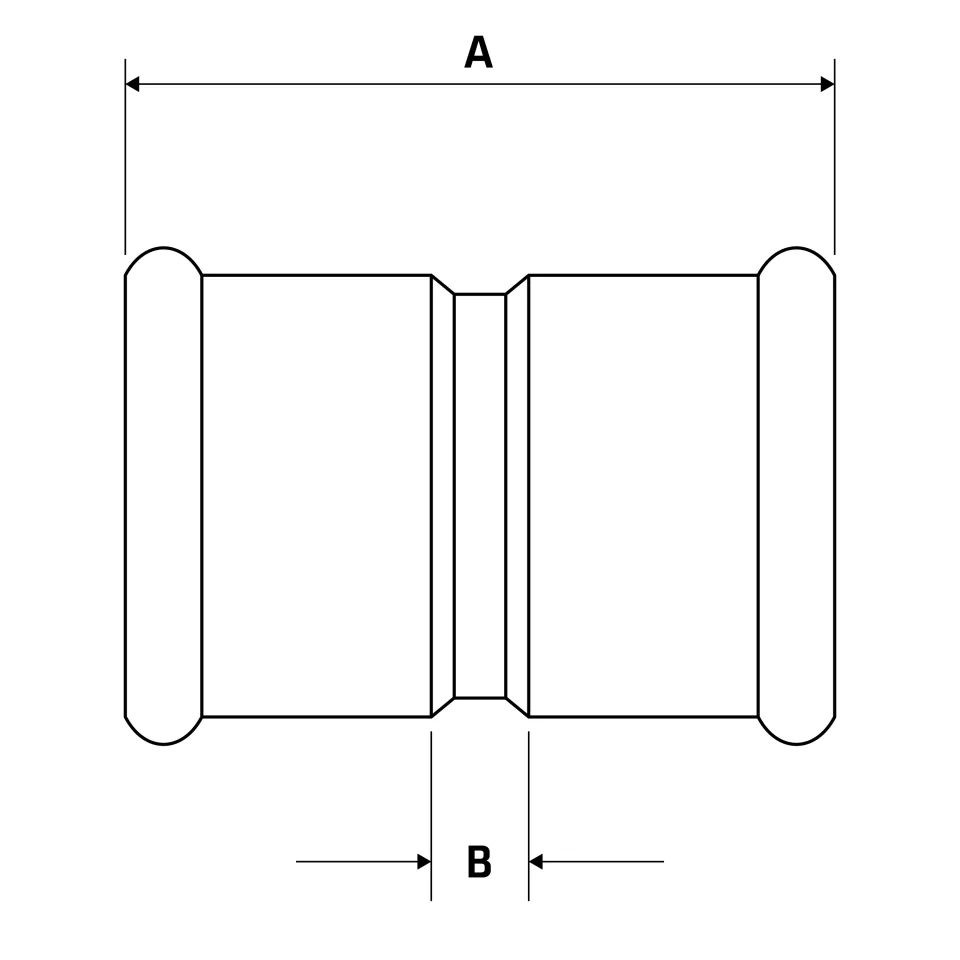

RapidPress Extreme Coupler
RapidPress Extreme Coupler
Features
FKM Seals
Temperature rating: -20°C, 220°C
Maximum operating pressure: 16 Bar (232psi)
EPDM and Gas Rated options available
SPEC SHEET
Related Products
RapidPress ACO203 Complete Set 15-54
RapidPress ACO203 Complete Set 15-54
Features
Tool comes with full set of compatible pressing heads
Press sizes from 15.0mm to 54.0mm
Work light for safe working
Analysis of tool performance via NovoCheck app
Data transfer via Bluetooth®
Brushless Motor Technology
Runs Milwaukee® M18™ Battery
VIEW DIMENSIONS
SPEC SHEET

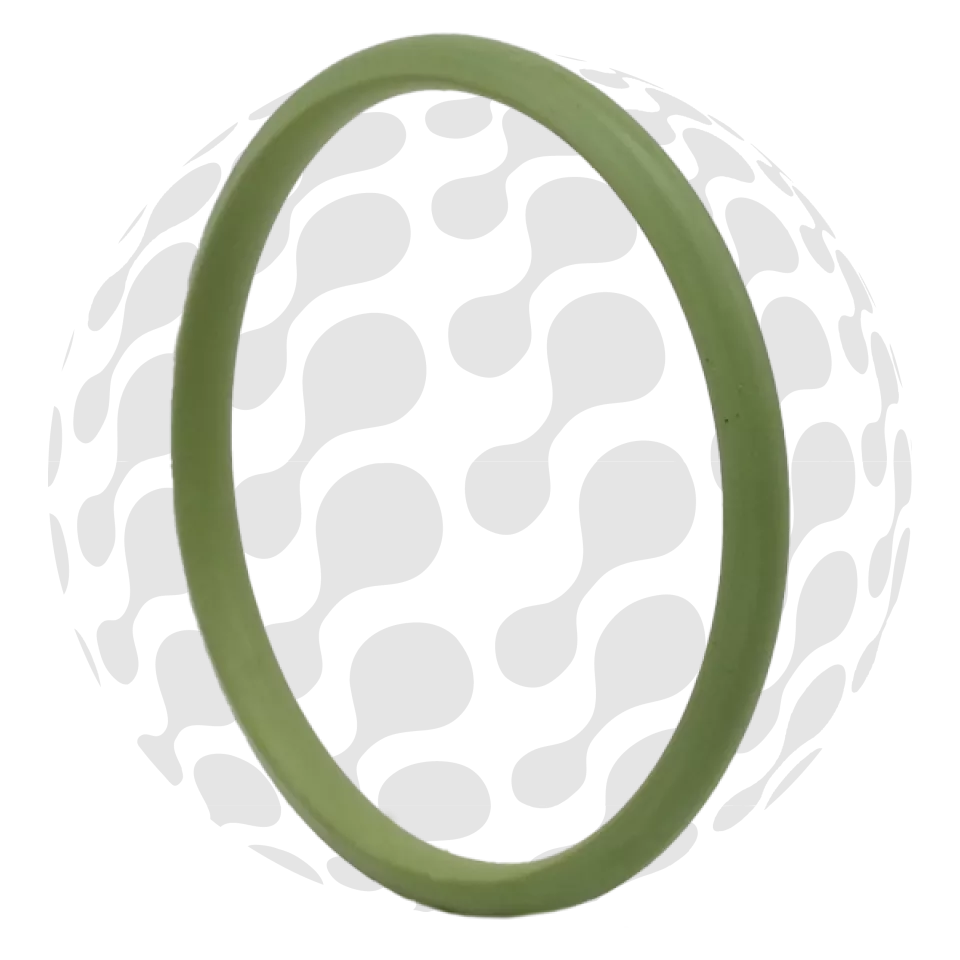

RapidPress O-Ring FKM Seal
RapidPress O-Ring FKM Seal
Features
FKM O-Ring - Green
Typically used with Compresed Air & Oils
Patented seal ring with lenticular profile which fits the press crimp groove which provides a 20% enlargement of the sealing surface
Fit makes the pipes insertion easier
VIEW DIMENSIONS
SPEC SHEET
RapidPress ACO203XL Complete Set 15-108
RapidPress ACO203XL Complete Set 15-108
Features
Tool comes with full set of compatible Pressing Heads (excludes 88.9mm Pressing Head)
Press sizes from 15.0mm to 108.0mm
Rotatable head
Analysis of tool performance via NovoCheck app
Data transfer via Bluetooth®
Brushless Motor Technology
Runs Milwaukee® M18™ Battery
SPEC SHEET
RapidPress Extreme Flange Table E
RapidPress Extreme Flange Table E
Features
FKM Seal
Flange Dimensional Standard: AS2129
Please note: Sizes from 22, 28 and 42 are not manufactured to AS2129 Standard, as the thickness exceeds standard to avoid unacceptable warpage that may occur at standard AS2129 thickness.
Flanges are forged to: ASTM A182
Temperature rating: -20°C, 220°C
EPDM and Gas Rated options available
VIEW DIMENSIONS
SPEC SHEET

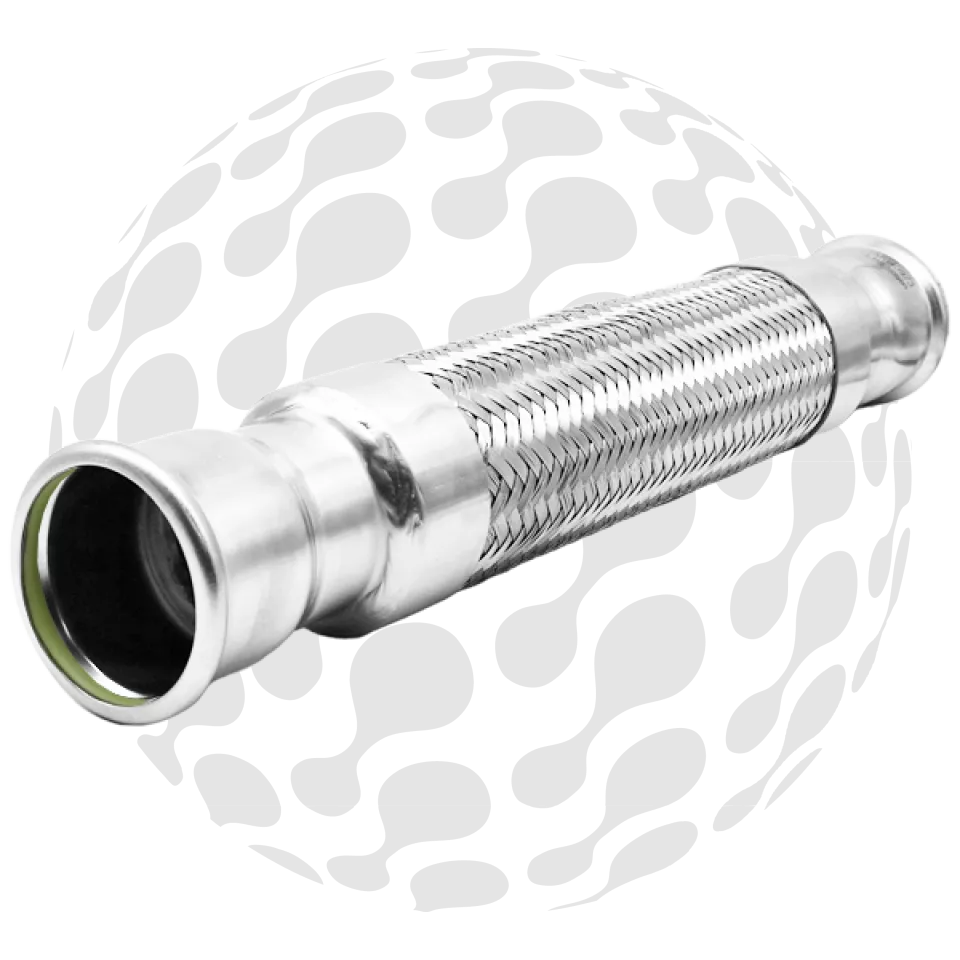

FlexiFlow Hose with RapidPress Extreme Couplers
FlexiFlow Hose with RapidPress Extreme Couplers
Features
**Please allow 1-2 days lead time for fabrication**
FlexiFlow Stainless Steel Convoluted Braided Hose
Connections: RapidPress Extreme Couplers (FKM)
Hose Test Standard: ISO 10380-2012
Hose Designation: TYPE 1-10
Click 'View Dimensions' for the following information:
E = Static/Flexing Minimum Bend Radius (mm)
F = Working/Test Pressure (bar) *Applies to Hose Only, Not End Connections*
VIEW DIMENSIONS
SPEC SHEET
RapidPress ACO203 15-54 Tool
RapidPress ACO203 15-54 Tool
Features
*Tool, Battery, Charger and Case only*
Press sizes from 15.0mm to 54.0mm
Work light for safe working
Analysis of tool performance via NovoCheck app
Data transfer via Bluetooth®
Brushless Motor Technology
Runs Milwaukee® M18™ Battery
Ask us about our ex hire tools available for purchase!
VIEW DIMENSIONS
SPEC SHEET
RapidPress ACO203XL 15-108 Tool
RapidPress ACO203XL 15-108 Tool
Features
*Tool, Battery, Charger and Case only*
Press sizes from 15.0mm to 108.0mm
Rotatable head
Analysis of tool performance via NovoCheck app
Data transfer via Bluetooth®
Brushless Motor Technology
Runs Milwaukee® M18™ Battery
Ask us about our ex hire tools available for purchase!
VIEW DIMENSIONS
SPEC SHEET
RapidPress Depth Gauge
RapidPress Depth Gauge
Features
Depth Gauge for sizes 15mm to 168.3mm
To ensure a correctly inserted joint, the tube must be witness marked with a fine-point/felt-tip pen where it meets the fitting using the depth gauge so that full insertion can be verified
VIEW DIMENSIONS
SPEC SHEET
RapidPress Inox Press-Fit Tube
EN10312/EN10217-7
RapidPress Inox Press-Fit Tube
EN10312/EN10217-7
Features
Suitable for all uses except for with potable water. For potable water capabilites, please see our RapidPress Inox Watermark Approved Press-Fit Tube (RapidPress Inox Press-Fit Tube (WM))
Manufactured to EN10312/EN10217-7
180 Grit Finish
6 metre lengths. Purchase per metre (enter quantity as '6' for 1 length)
VIEW DIMENSIONS
SPEC SHEET

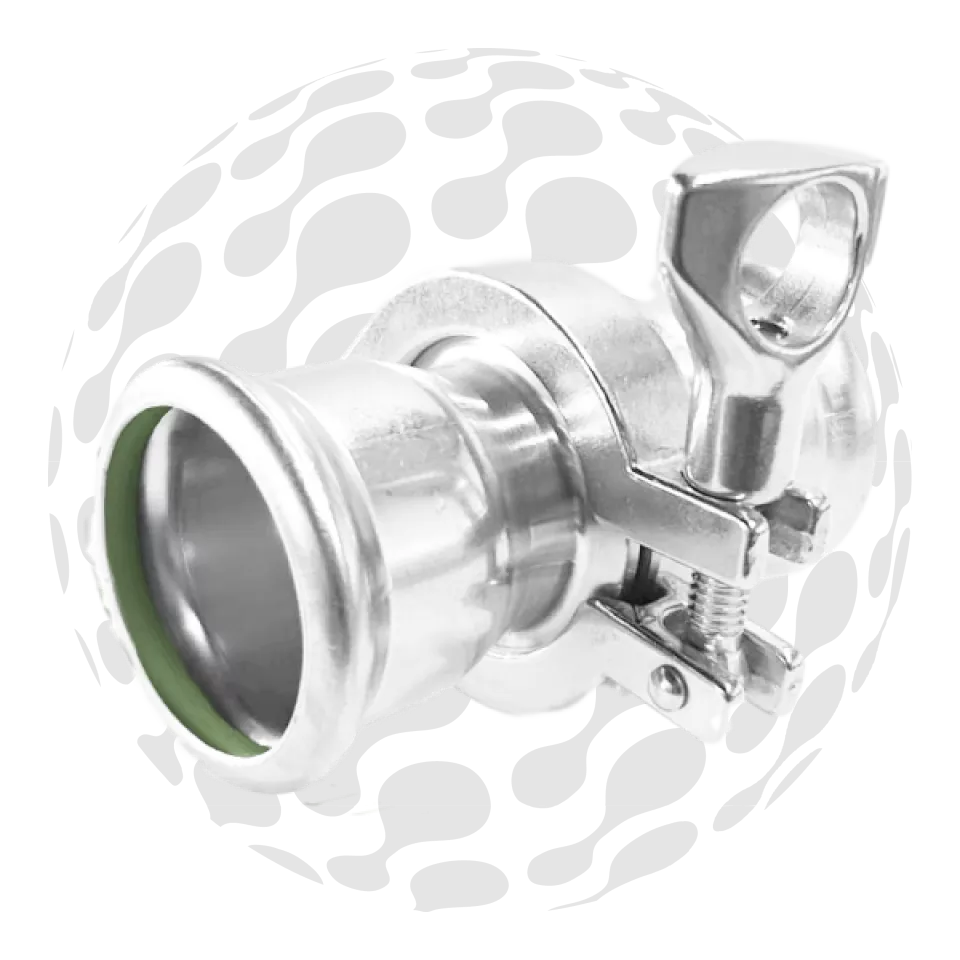

RapidPress Extreme Union with Tri Clover
RapidPress Extreme Union with Tri Clover
Features
FKM Seals
Complete Set including: RapidPress Tri Clover Adapter (x2), Tri Clover Clamp (304) and Tri Clover Seal
Temperature rating: -20°C, 220°C
Maximum operating pressure: 16 Bar (232psi)
EPDM options available
VIEW DIMENSIONS
SPEC SHEET

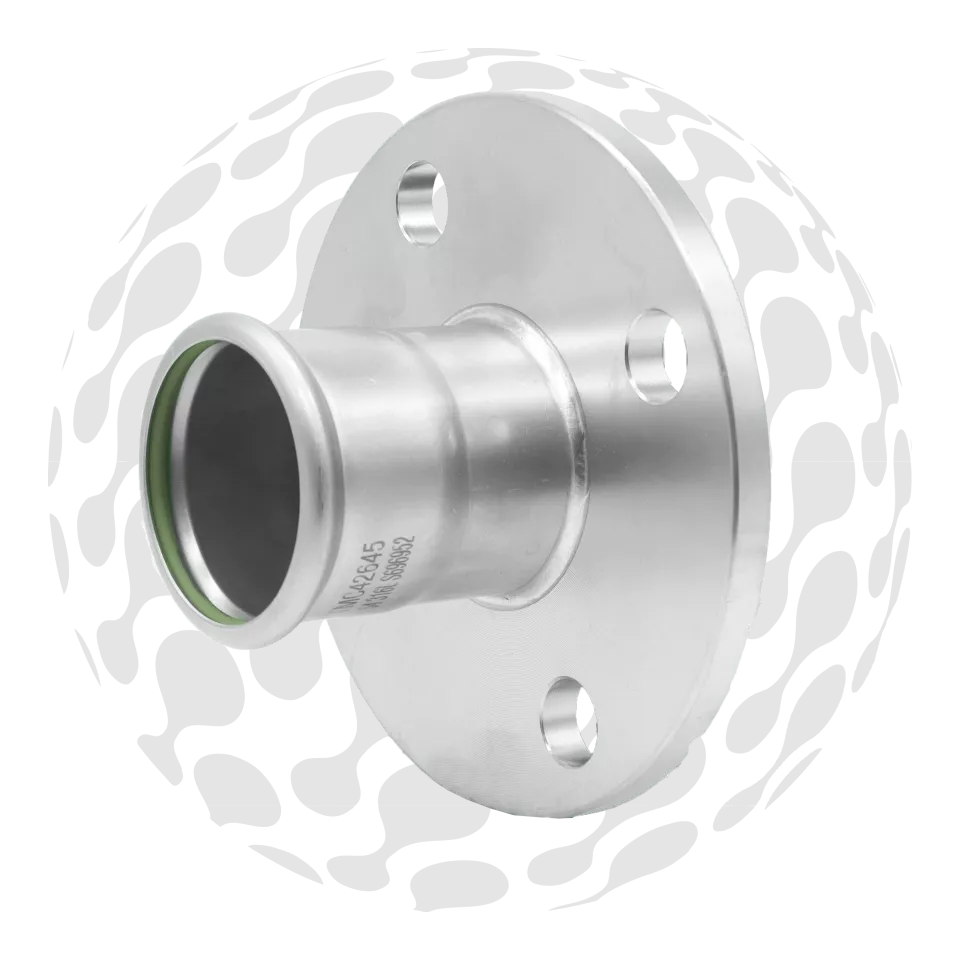

RapidPress Extreme Flange PN10-40
RapidPress Extreme Flange PN10-40
Features
FKM Seal
Flange Dimensional Standard: EN1092-1 Type 01/A
Flanges are forged to: EN10222-5
RapidPress Coupler: 316L
Temperature rating: -20°C, 220°C
EPDM and Gas Rated options available
VIEW DIMENSIONS
SPEC SHEET
RapidPress Extreme to Male BSP Union with Tri Clover
RapidPress Extreme to Male BSP Union with Tri Clover
Features
FKM Seals
Complete Set including: RapidPress to Tri Clover Adapter, BSP Nipple to Tri Clover Adapter, Tri Clover Clamp (304) and Tri Clover Seal
Temperature rating: -20°C, 220°C
Maximum operating pressure: 16 Bar (232psi)
EPDM options available
VIEW DIMENSIONS
SPEC SHEET
RapidPress Pressing Heads & Adapters 76.1-108
RapidPress Pressing Heads & Adapters 76.1-108
Features
M-Profile
Adapter Jaw (AJ76108) required for use of the 76.1mm & 88.9mm Pressing Head. Also for the initial press for 108.0mm Pressing Head
Adapter Jaw (AJ108) required for the secondary press for the 108.0mm Pressing Head
VIEW DIMENSIONS
SPEC SHEET
RapidPress Inox Press-Fit Tube (WM)
EN10312/EN10217-7
RapidPress Inox Press-Fit Tube (WM)
EN10312/EN10217-7
Features
Watermark Approved for use with potable water. If potable water applications are not required, please see our RapidPress Inox Press-Fit Tube
Manufactured to EN10312/EN10217-7
180 Grit Finish
6 metre lengths. Purchase per metre (enter quantity as '6' for 1 length)
VIEW DIMENSIONS
SPEC SHEET
RapidPress Extreme Union with RJT
RapidPress Extreme Union with RJT
Features
FKM Seals
Complete Set including: RapidPress to RJT Male Adapter, RapidPress to RJT Female Adapter, RJT Hex Nut (304) and RJT Stepped Seal
Temperature rating: -20°C, 220°C
Maximum operating pressure: 16 Bar (232psi)
EPDM options available
VIEW DIMENSIONS
SPEC SHEET

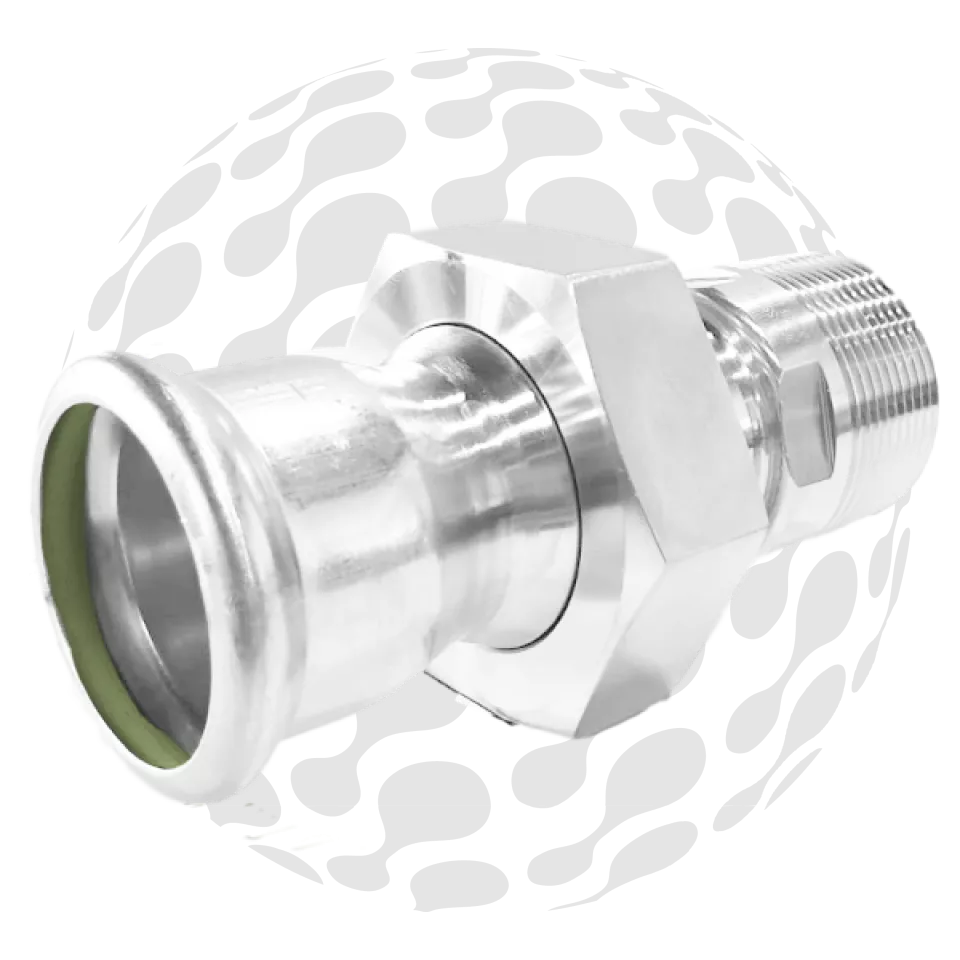

RapidPress Extreme to Male BSP Union with RJT
RapidPress Extreme to Male BSP Union with RJT
Features
FKM Seals
Complete Set including: RapidPress to RJT Female Adapter, BSP Nipple to RJT Male Adapter, RJT Hex Nut (304) and RJT Stepped Seal
Temperature rating: -20°C, 220°C
Maximum operating pressure: 16 Bar (232psi)
EPDM options available
VIEW DIMENSIONS
SPEC SHEET
